RBG LED is a extendable strip light with RGB LED 200cm

Product image 1
1 / 6

RBG LED is a extendable strip light with RGB LED 200cm

A 200 cm extendable RGB LED strip using digitally addressable WS2811 NeoPixel LEDs with a Grove connector. Each LED can display its own colour and brightness independently, and multiple strips can be daisy-chained together to create longer displays.

Compatible with M5Stack units via the Grove A port (GPIO 21), and programmable using Arduino IDE or UIFlow (Blockly/Python) with the FastLED library.

Key Features

  • Digitally Addressable – Individual RGB colour and brightness control per LED
  • Grove Connector – Plug-and-play with M5Stack and compatible boards
  • Extendable – Daisy-chain multiple strips together
  • Single-Bus Protocol – Simple wiring with one data line
  • Length: 200 cm (2 m)

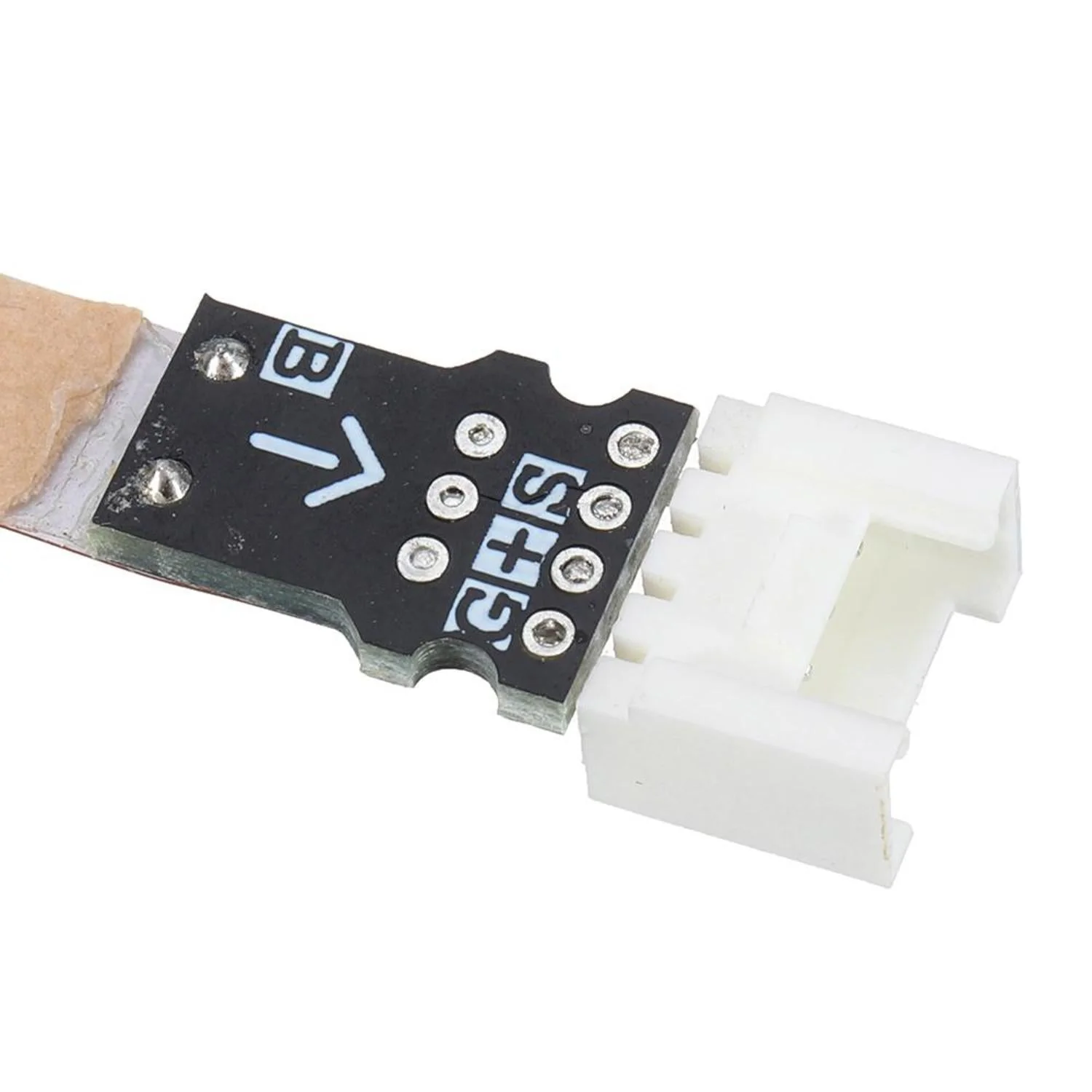

Pin Mapping (M5Stack Grove A)

  • Signal: GPIO 21
  • Power: 5 V
  • Ground: GND
Note: Pay attention to the direction of input and output ports when connecting. High LED brightness and large quantities increase power consumption — use an external power supply for long chains.

Ideal For

  • M5Stack NeoPixel projects
  • Decorative and accent lighting
  • Interactive LED displays
  • Arduino and UIFlow programming projects

Package Contents

  • 1× RGB LED Strip (200 cm)
  • 1× Grove Cable

Resources
