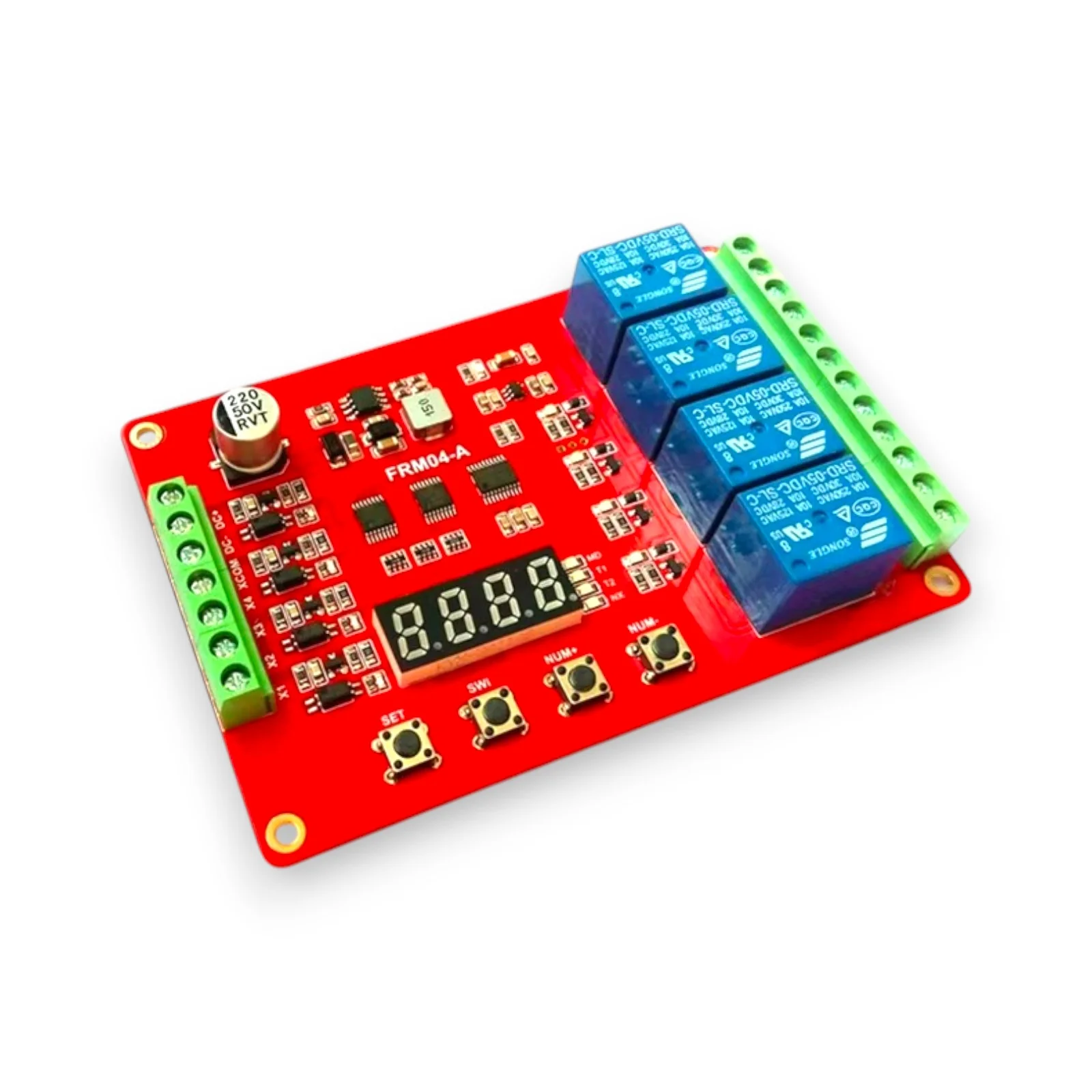

This versatile relay module is a powerhouse of timing functions, ideal for projects requiring precise control over relay activation and deactivation. Featuring adjustable parameters and 18 distinct modes, it provides exceptional flexibility for automation tasks.

Key Features

• Customisable Parameters: Set timing parameters (T1 and T2) from 0.1 seconds to 270 hours for infinite cycle modes or up to 9999 seconds for finite cycles.
• Trigger Options: High/low pulse signals for start/stop operations, with adjustable sensitivity.
• Self-Start or Trigger Modes: Functions 1–8 activate on power-up, while 9–18 require pulse signals.
• Multiple Interfaces: Operates on any X1–X4 interface for flexible integration.
• Easy Configuration: Parameters are adjustable through simple keystrokes and an intuitive display.

Functions Overview

Power Delay Modes

• Function 1: Power Delay Absorption – Delays activation after power-on.
• Function 2: Power Delay Disconnection – Activates immediately, then disconnects after a delay.

Timing Modes

• Function 3 & 4: Time relay to activate and deactivate in sequence (adjustable T1 and T2).

Infinite Cycle Modes

• Function 5 & 6: Repeat activation/deactivation cycles indefinitely with adjustable timing.

Finite Cycle Modes

• Function 7 & 8: Set cycles to repeat a fixed number of times (NX adjustable up to 9999).

Trigger-Based Modes

• Functions 9–14: Activate/disconnect relays on pulse or level triggers, with timing adjustments.

Advanced Cycling Modes

• Functions 15–18: Combine trigger-based control with infinite or finite cycling for complex operations.

Example Applications

• Automation Projects: Timed control of devices or processes.
• DIY Electronics: Flexible relay control for hobbyists.
• Industrial Use: Reliable timer functionality for machinery or systems.

For detailed setup instructions and operation guidelines, refer to the user manual or contact the seller.
