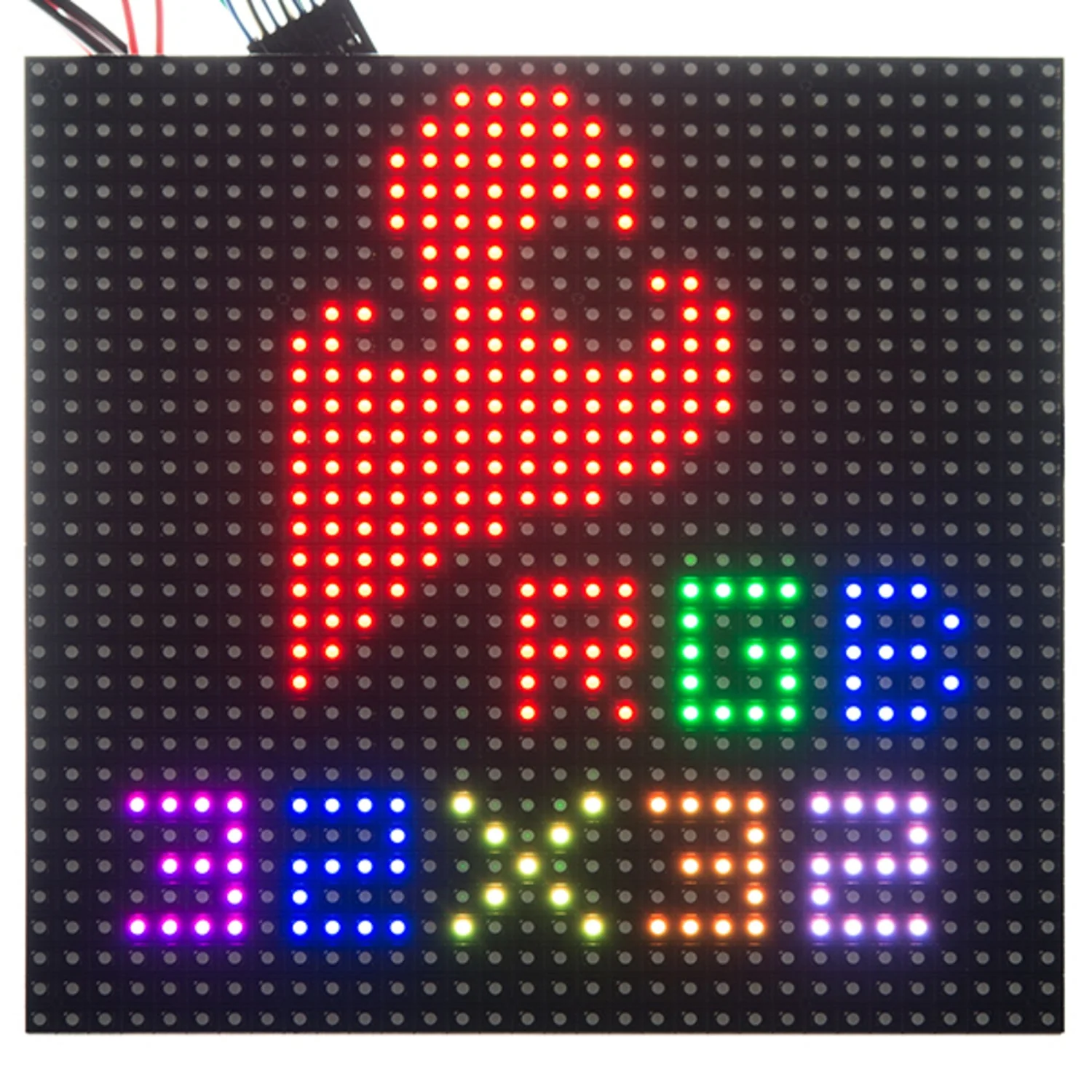

RGB LED Matrix Panel - 32x32
A 32×32 RGB LED matrix panel with 1024 individually addressable LEDs on a 190 × 190 mm (7.5 × 7.5″) board. The seamless frame and dual IDC connectors allow multiple panels to be daisy-chained together for larger displays.
The panel requires a regulated 3.3–5V power supply capable of sourcing up to 2A. It includes a 3.81 mm (0.15″) pitch 4-pin polarised power cable with both a female polarised connector and spade terminals.
Key Features
- 32×32 Resolution – 1024 RGB LEDs in a compact panel
- 190 × 190 mm – 7.5 × 7.5″ board dimensions
- Daisy-Chainable – Dual IDC connectors and seamless frame for tiling panels
- 3.3–5V Operation – Standard logic-level power supply
- Up to 2A Draw – At full white brightness
Ideal For
- LED animations and scrolling text displays
- Retro-style games and pixel art
- Large tiled display installations
Package Contents
- 1× 32×32 RGB LED matrix panel
- 1× 4-pin polarised power cable (with spade terminals)
