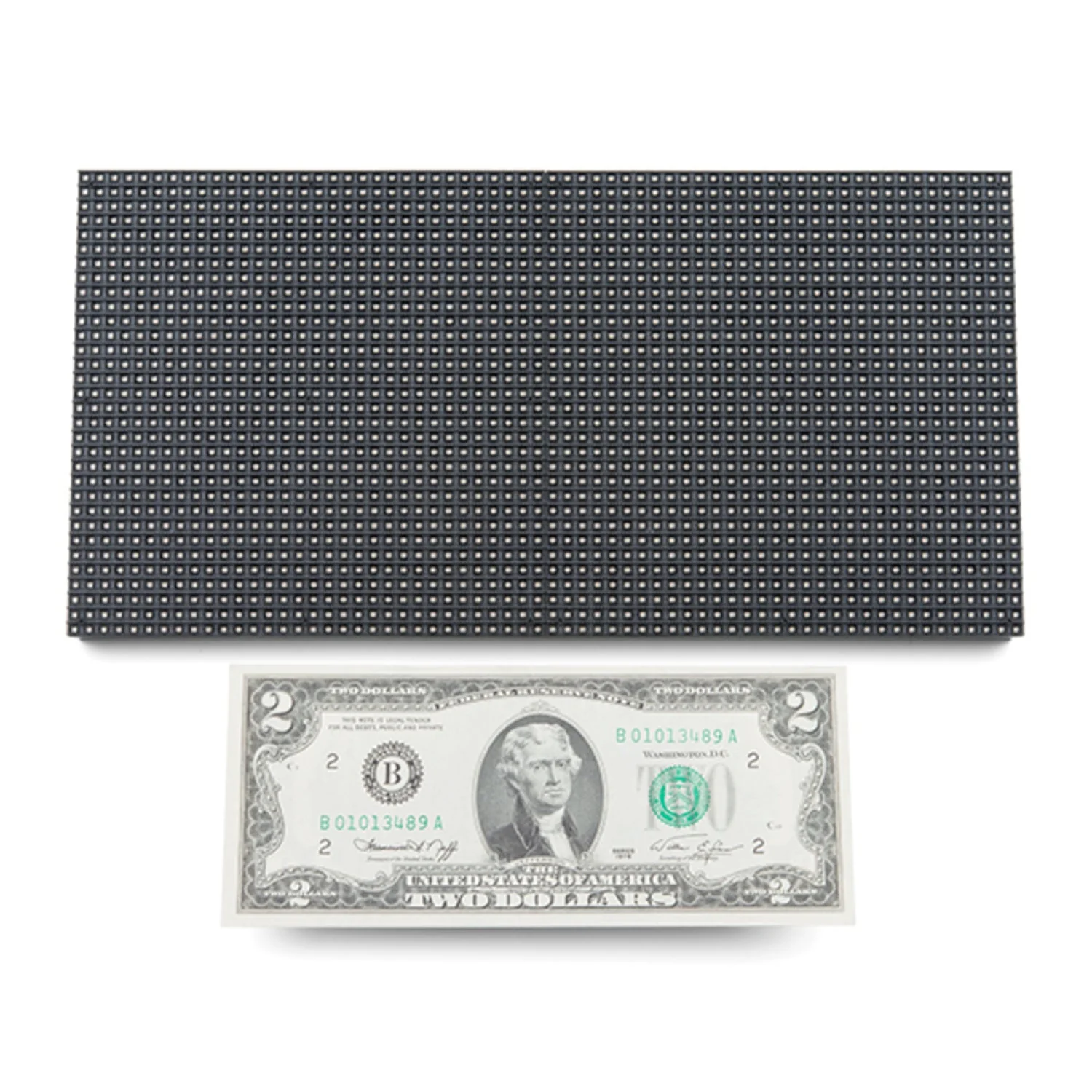

A 32×64 RGB LED matrix panel with 2048 individually addressable LEDs on a 254 × 127 mm (10" × 5") board. The panel features smaller LEDs than comparable 32×32 panels, providing finer detail for images, animations, and text displays.

Multiple panels can be daisy-chained together via the IDC connector and seamless frame design to create larger displays. The panel requires a regulated 5 V supply capable of sourcing up to 4 A.

Key Features

• 2048 RGB LEDs – 32 rows × 64 columns of full-colour LEDs
• Fine Pixel Pitch – Smaller LEDs than 32×32 panels for higher detail
• Daisy-Chainable – IDC connector and seamless frame for tiling multiple panels
• IDC Data Input – Standard HUB75-style interface
• Panel Dimensions – 254 × 127 mm (10" × 5")

Specifications

• Resolution – 32 × 64 pixels
• Supply Voltage – 5 V DC (regulated)
• Maximum Current – Up to 4 A
• Power Connector – 3.81 mm (0.15") pitch 4-pin polarised connector

Ideal For

• LED signage and information displays
• Animations, games, and pixel art projects
• Large tiled display installations

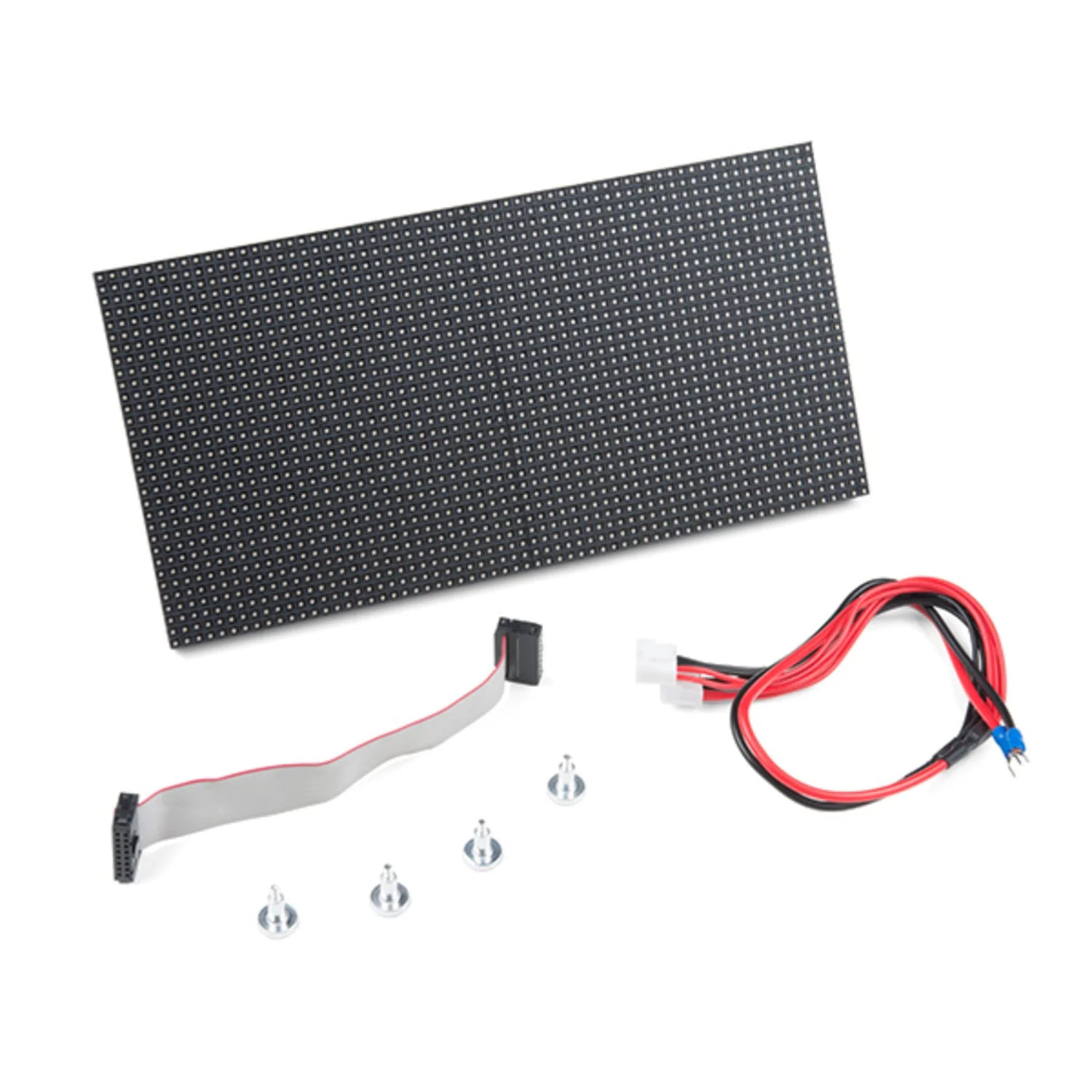

Package Contents

• 1× 32×64 RGB LED Matrix Panel
• 1× Power cable (polarised connector with spade terminals)

Resources

• RGB Panel Hookup Guide
