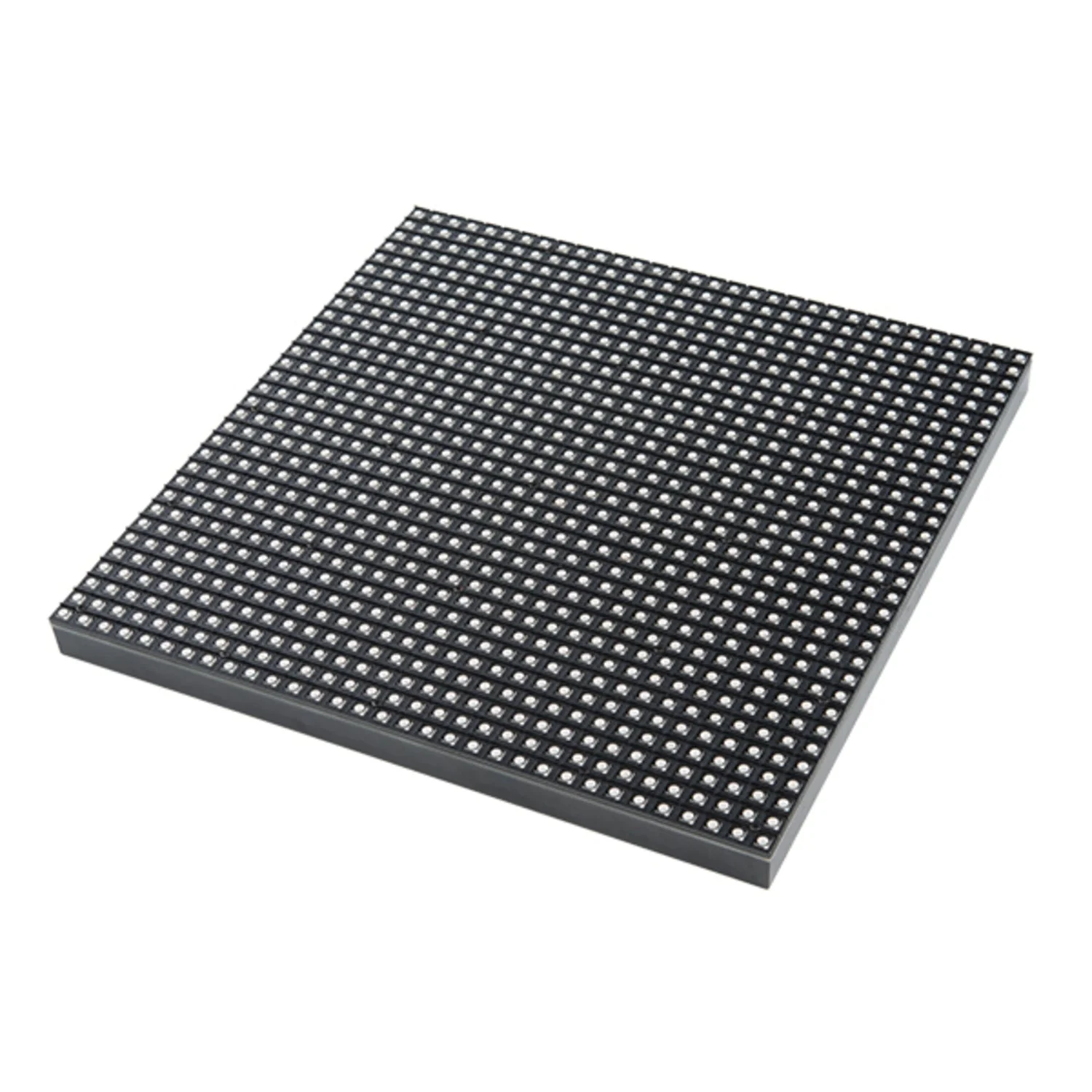

A 32×32 RGB LED matrix panel with 1024 individually controllable LEDs on a 7.5" × 7.5" board. These panels feature a seamless frame and dual IDC connectors for daisy-chaining multiple panels into larger displays. Suitable for animations, games, scoreboards, and custom LED signage.

The panel requires a regulated 3.3–5V power supply capable of sourcing up to 2A. A 4-pin polarized power cable with spade terminals is included. Designed for FPGAs and high-speed processors — 16MHz is the minimum recommended processor speed for adequate refresh rates.

Key Features

• 32×32 RGB Matrix – 1024 full-colour LEDs
• 1:8 Scan Rate – Requires compatible library (not standard 1:16 libraries)
• Daisy-Chainable – Dual IDC connectors with seamless frame for tiling
• Included Power Cable – 0.15" pitch 4-pin polarized connector with spade terminals

Specifications

• Resolution – 32 × 32 pixels (1024 LEDs)
• Scan Rate – 1:8
• Panel Size – 7.5" × 7.5" (190 × 190mm)
• Supply Voltage – 3.3–5V regulated
• Maximum Current – 2A
• Connectors – 2× 16-pin IDC (data), 1× 4-pin power
• Minimum Processor Speed – 16MHz

Resources

• Driving 1:8 Scan Rate Panels Guide
• RGBmatrixPanelHalfScan Library (GitHub)
