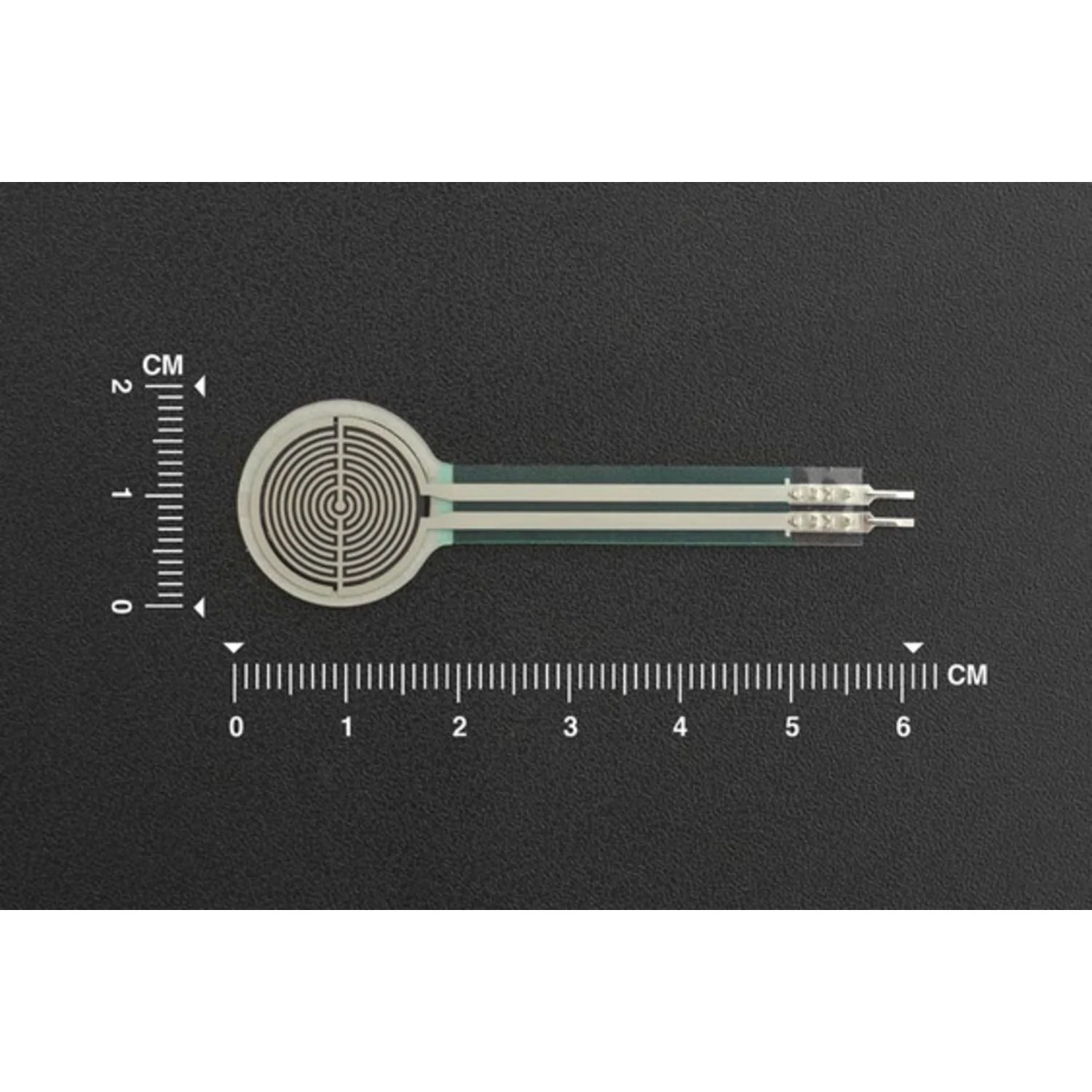

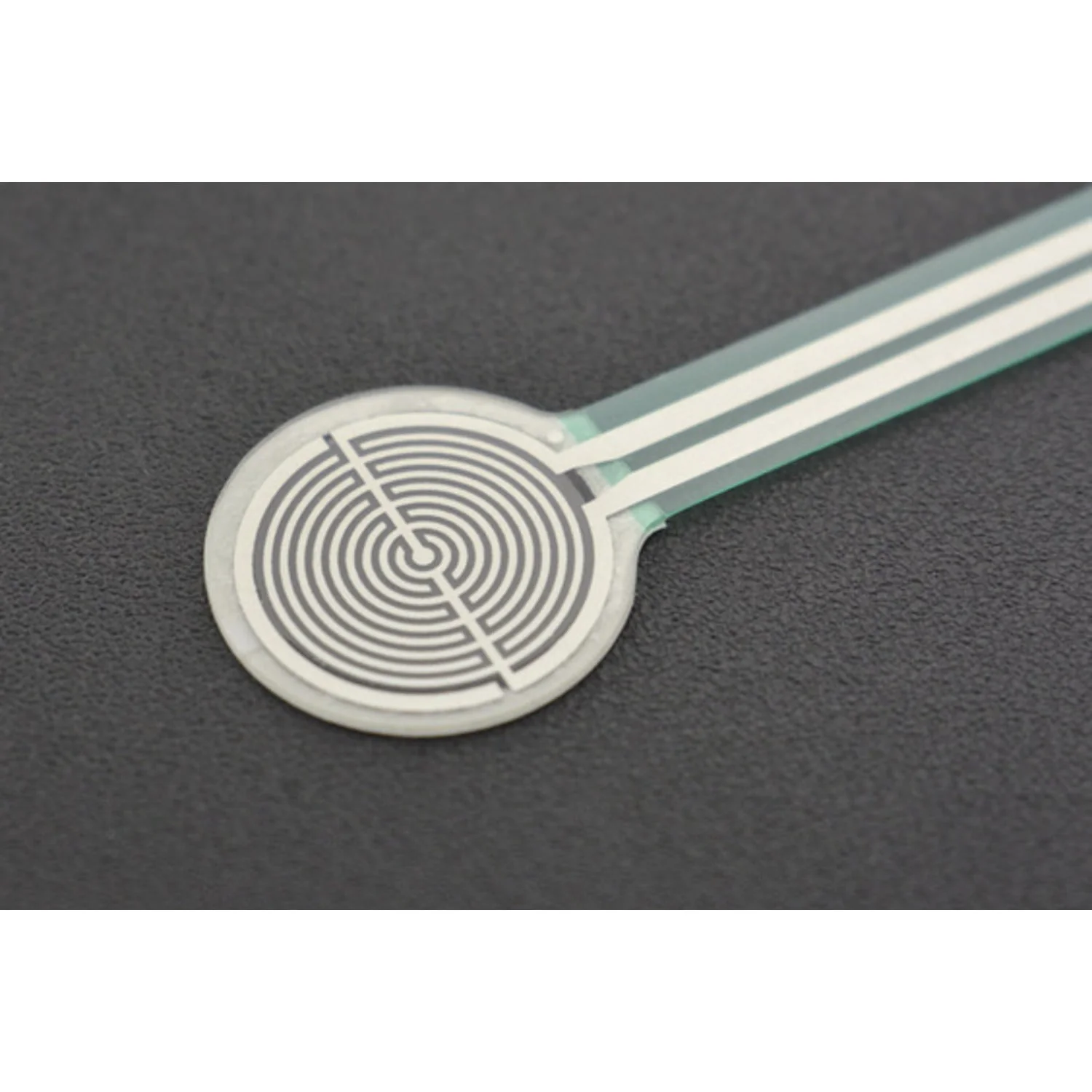

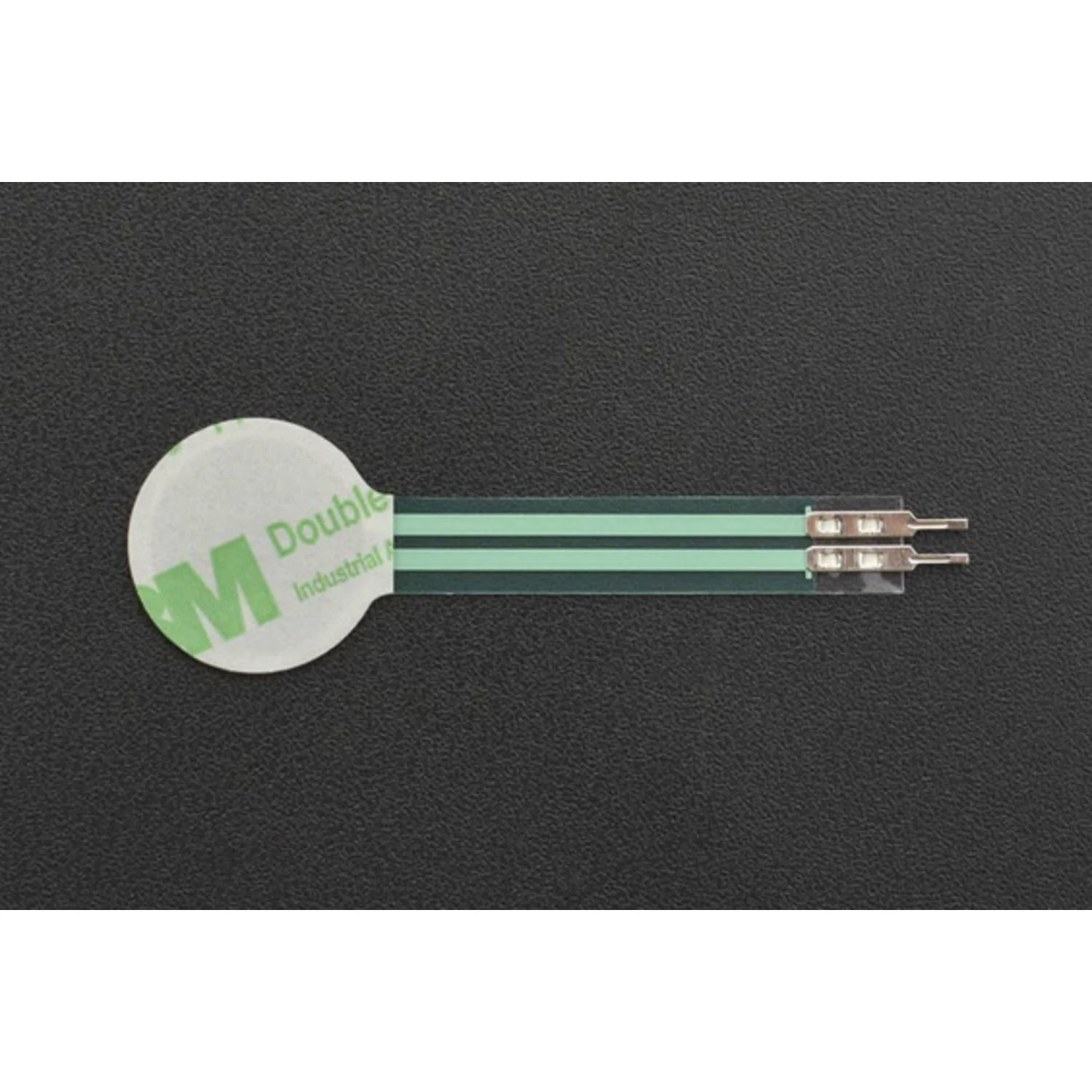

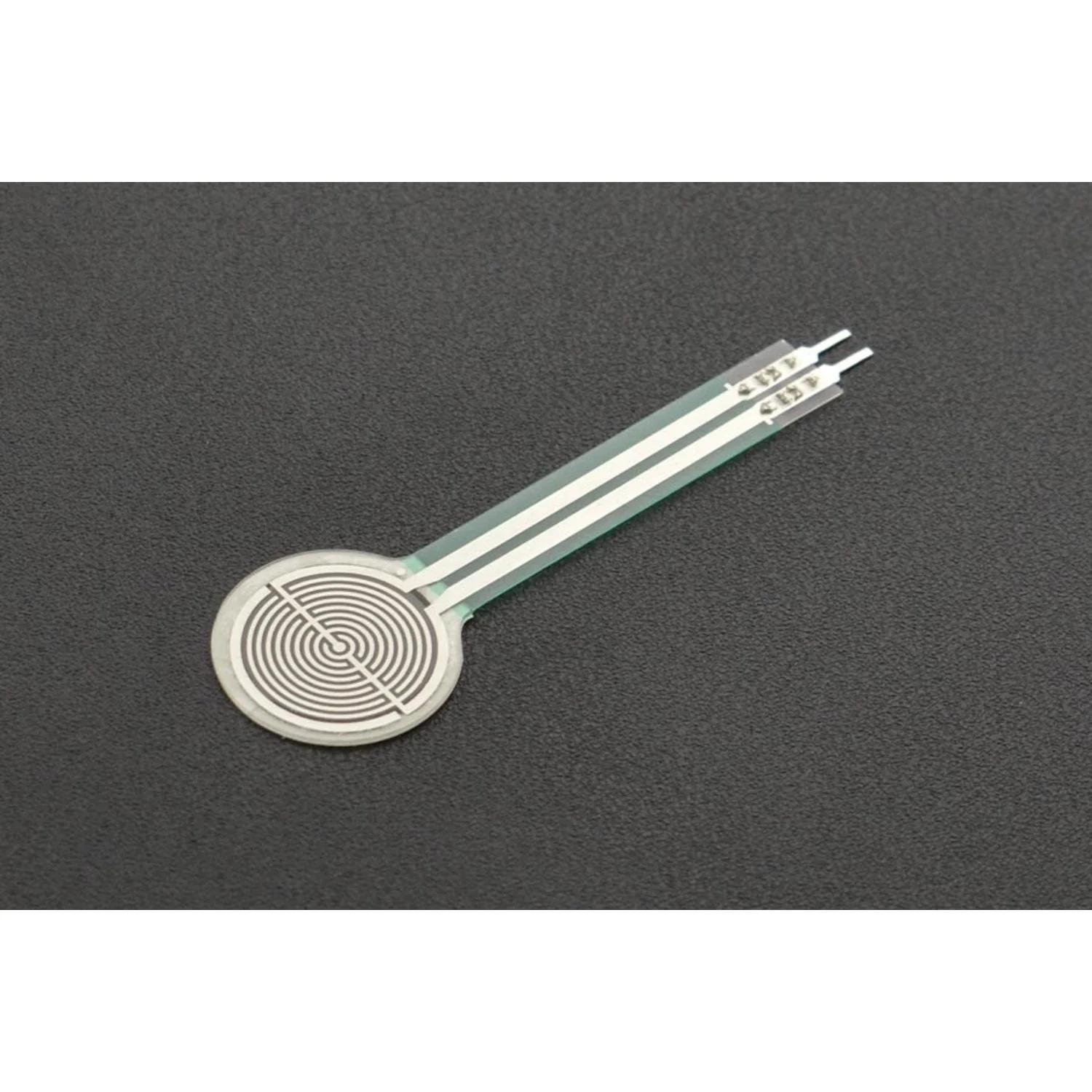

The RP-C18.3-LT is a circular flexible thin-film pressure sensor, 18.3mm in diameter, designed for highly sensitive detection of both static and dynamic force. When pressure is applied to the active area, resistance decreases proportionally — making it straightforward to interface with a microcontroller's ADC for pressure or force measurement.

Ultra-thin at 0.4mm, it's flexible enough for embedding in wearables, medical devices, footwear, and bed monitoring systems, while remaining durable for over one million actuation cycles.

Specifications

• Active Area Diameter – 18.3mm
• Thickness – 0.4mm
• Pressure Range – 20g to 6kg
• Trigger Force – 20g (initial resistance drops below 200kΩ)
• Initial Resistance – >10MΩ (unloaded)
• Activation Time – <10ms
• Response Time – <10ms
• Dynamic Pressure – Up to 10Hz frequency
• Drift – <5% at 2.5kg static load over 24h
• Hysteresis – ±10% at 1000g
• Operating Temperature – −40°C to +85°C
• Lifespan – >1 million actuations
• EMI/ESD – None generated

Ideal For

• Pressure switches and touch detection
• Smart footwear and wearable force sensing
• Bed and chair occupancy monitoring systems
• Medical device pressure measurement
• Robotics gripper feedback and tactile sensing

Package Contents

• 1× RP-C18.3-LT Thin Film Pressure Sensor

Resources

• Product Wiki & Documentation
