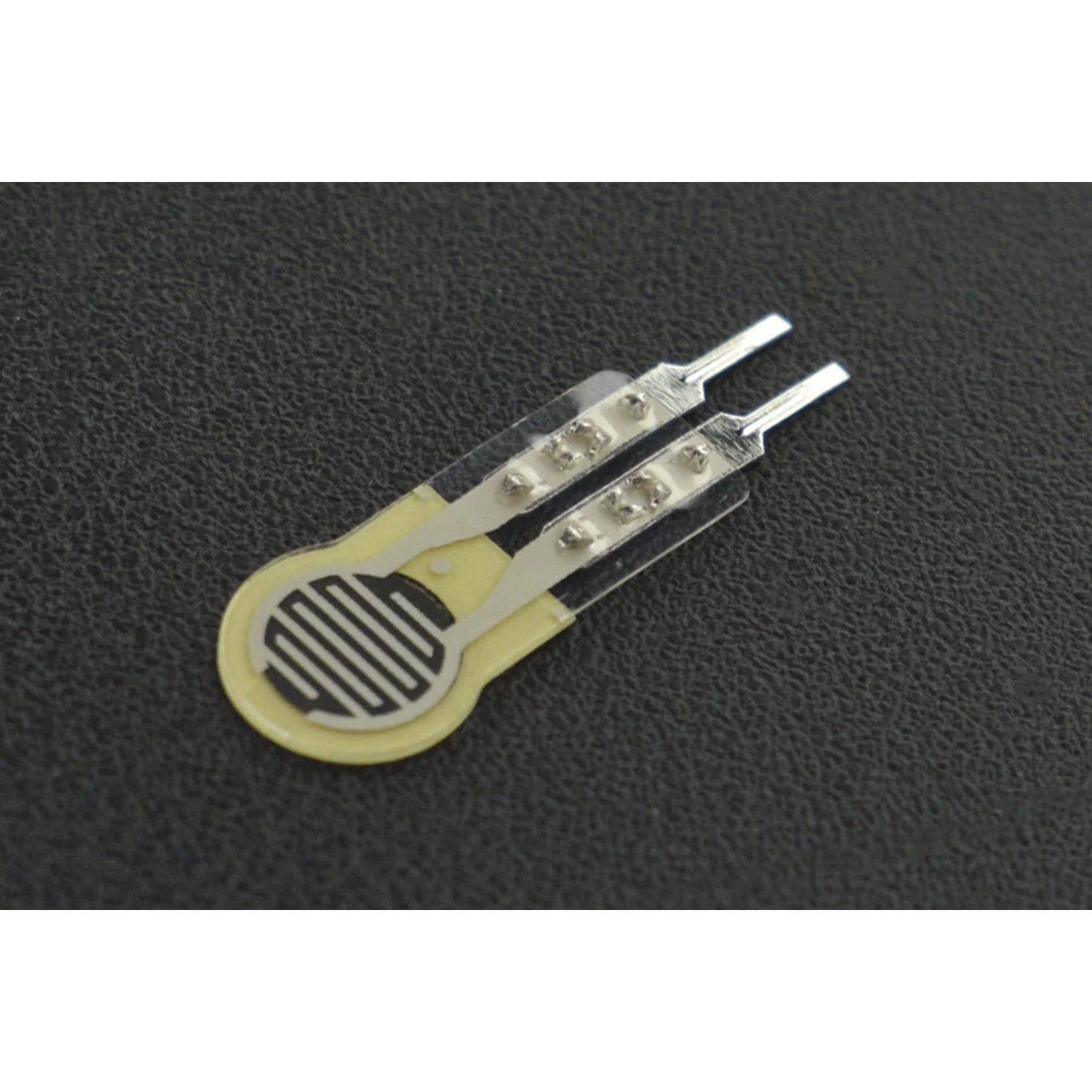

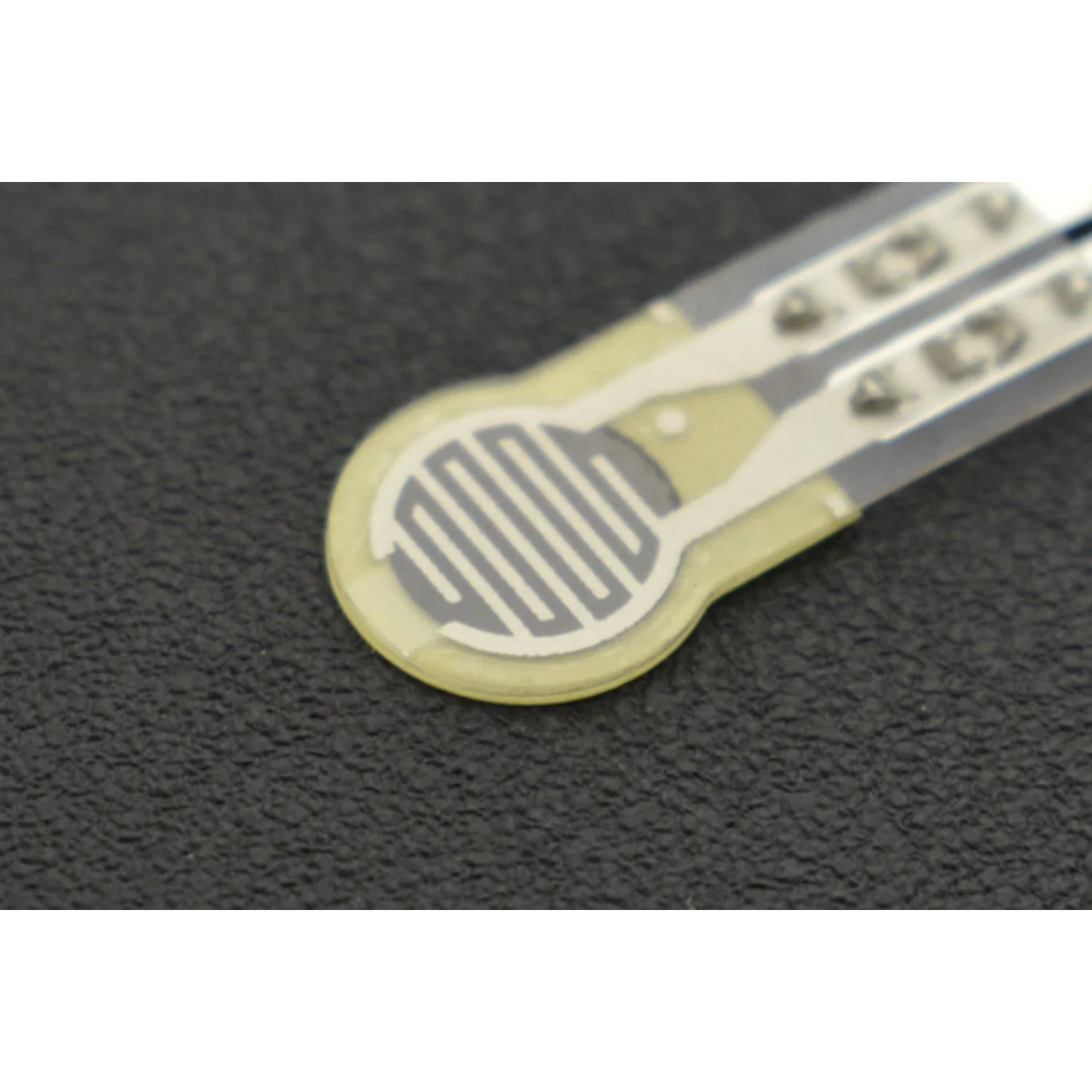

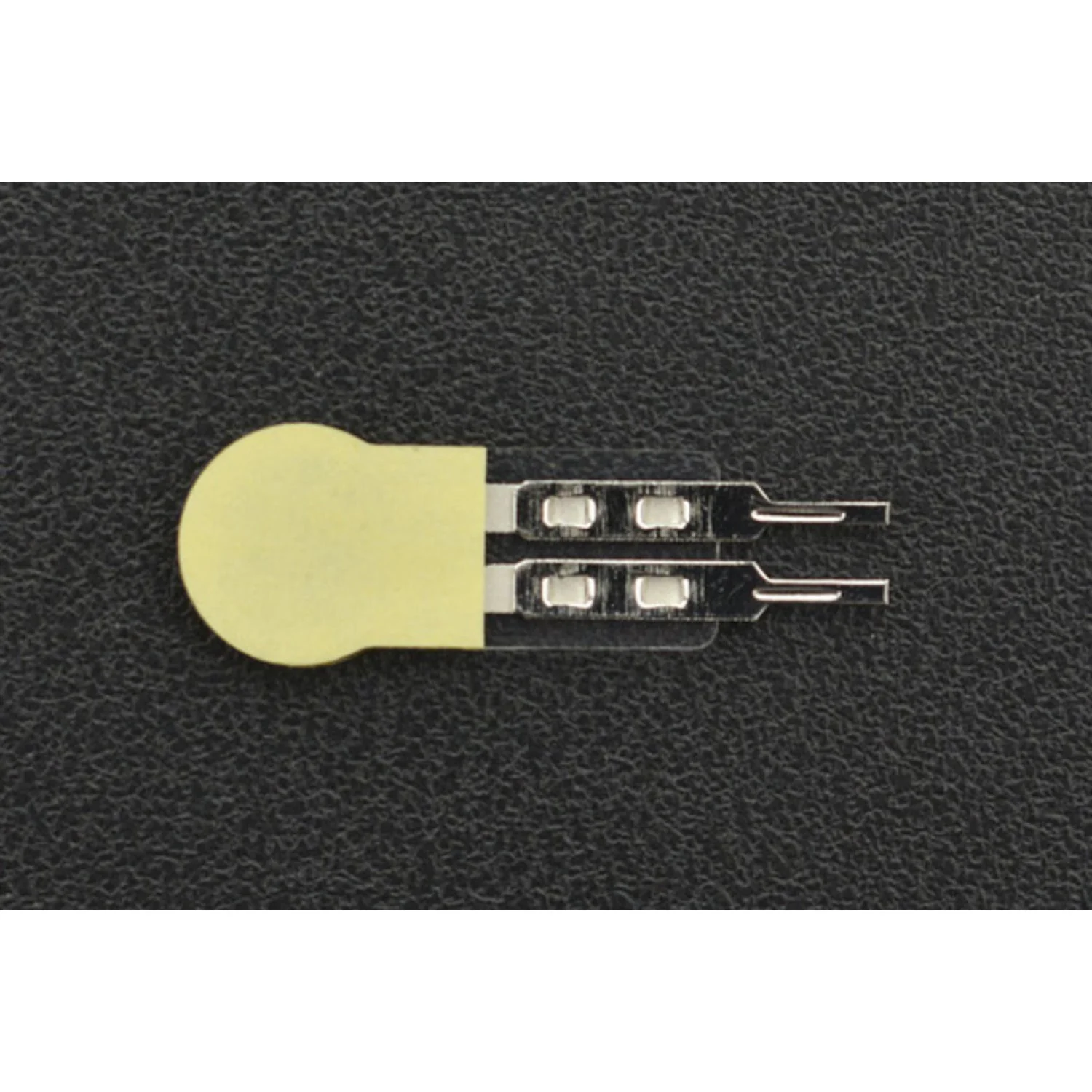

The RP-C7.6-ST is a circular flexible thin-film pressure sensor with a compact 7.6 mm active area and ultra-thin 0.3 mm profile. It converts applied force into a variable resistance — output resistance decreases as pressure increases — making it straightforward to read with any microcontroller's analogue input.

With a trigger force of just 30 g and a measurement range up to 1.5 kg, this sensor responds in under 10 ms and is rated for over one million actuations. The wide −40 °C to +85 °C operating range suits both indoor and outdoor applications.

Specifications

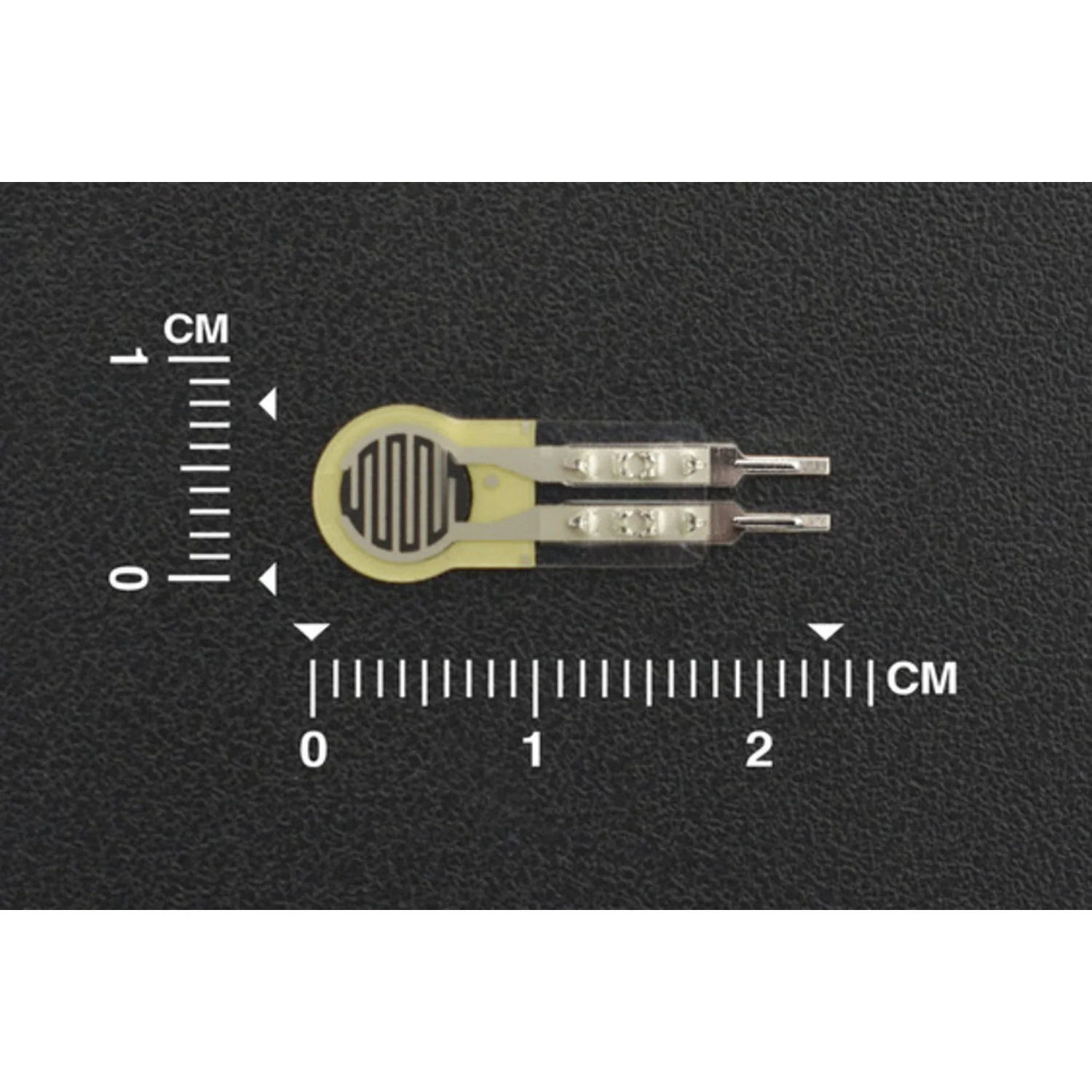

• Active Area – 7.6 mm diameter (circular)
• Thickness – 0.3 mm
• Trigger Force – 30 g (default resistance <200 kΩ)
• Pressure Range – 30 g to 1.5 kg
• Initial Resistance – >10 MΩ (no load)
• Response Time – <10 ms
• Activation Time – <0.01 s
• Hysteresis – ±10% at 1000 g
• Drift – <5% under 1 kg static load over 24 hours
• Measurement Type – Static and dynamic pressure (up to 10 Hz)
• Operating Temperature – −40 °C to +85 °C
• Lifespan – >1 million actuations
• EMI/ESD – Does not generate

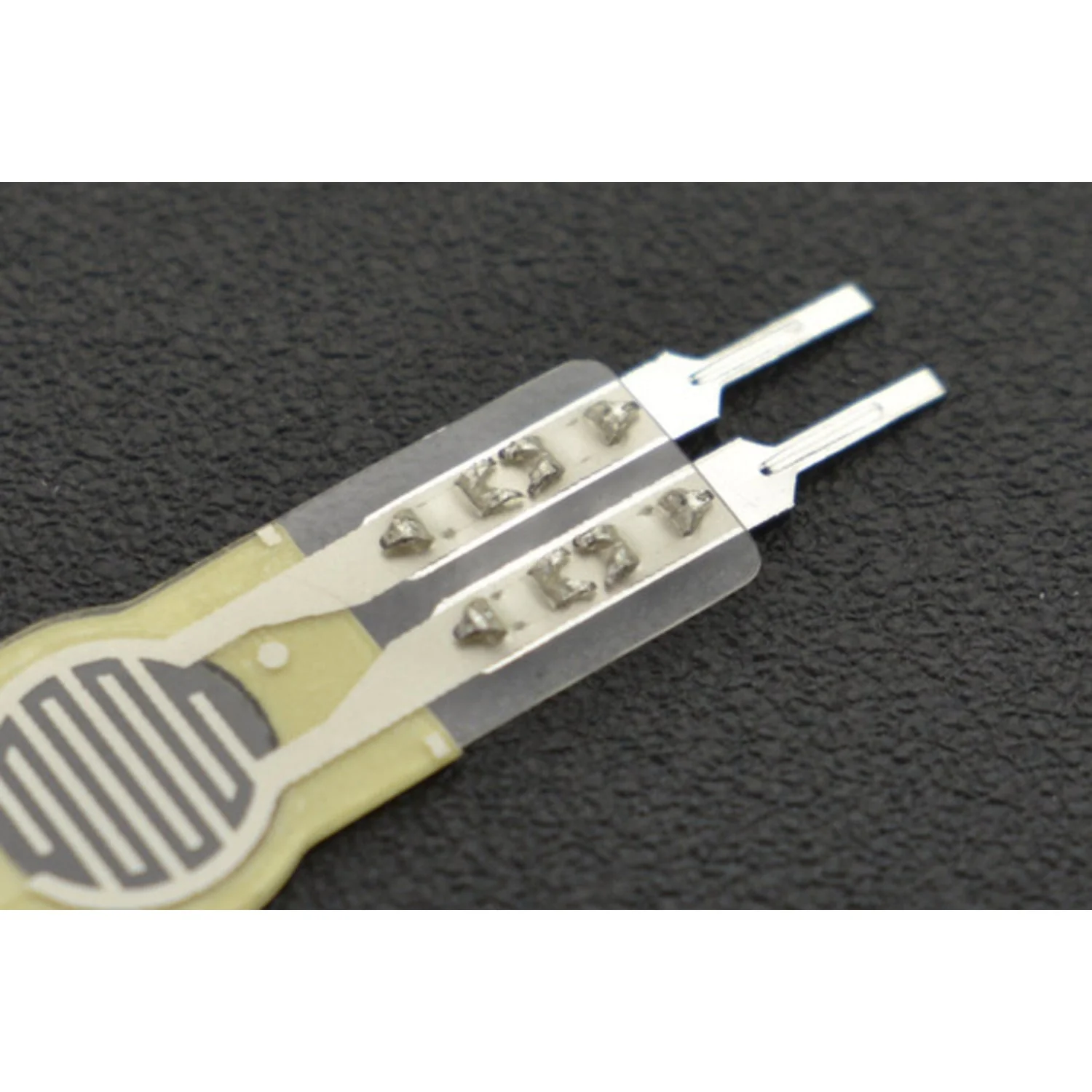

• Connector – Short-leg solder tabs

Ideal For

• Pressure-sensitive switches and touch interfaces
• Bed and seat occupancy monitoring
• Wearable force sensing (smart footwear, gloves)
• Medical device pressure detection
• Robotics grip and contact sensing
