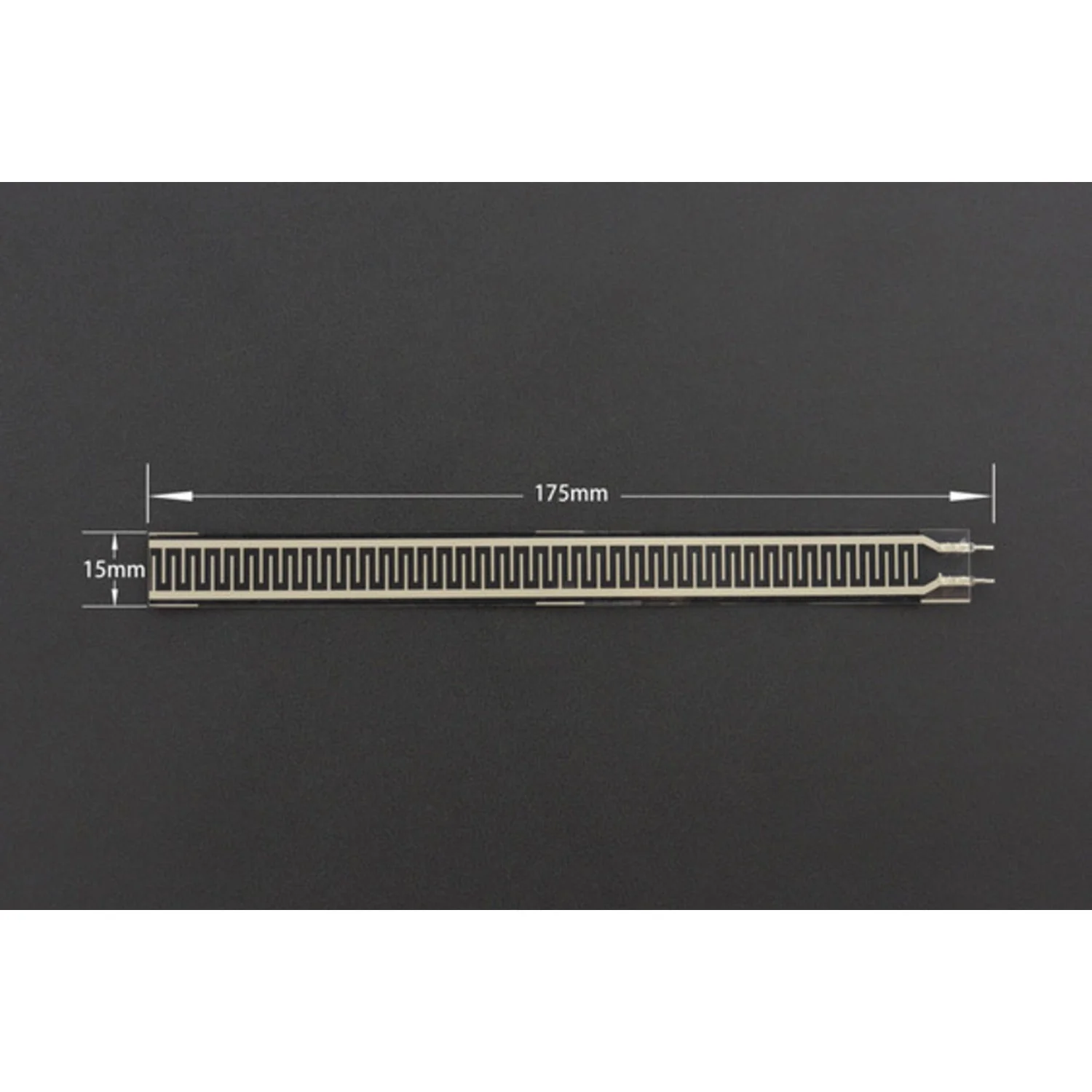

The RP-L-170 is a long, flexible thin-film pressure sensor with a 170mm active area for detecting both static and dynamic pressure. As pressure is applied, the sensor's resistance decreases — making it easy to read with any analogue input on a microcontroller.

Built from ultra-thin film with nanometre pressure-sensitive layers, the sensor is just 0.35mm thick. It triggers at under 20g and measures up to 10kg or more, with a response time under 10ms and a lifespan exceeding 1 million cycles.

Key Features

• Ultra-Thin & Flexible – 0.35mm thick, easily integrated into wearables and surfaces
• Wide Measurement Range – 20g to 10kg+ pressure detection
• Fast Response – Less than 10ms response time, under 0.01s activation
• Long Lifespan – Over 1 million cycles
• Low Drift – Less than 5% under 2.5kg static load over 24 hours
• No EMI/ESD Generation – Safe for sensitive electronics

Specifications

• Sensor Length: 170mm
• Thickness: 0.35mm
• Trigger Force: <20g (default resistance <200kΩ)
• Pressure Range: 20g–10kg+
• Initial Resistance: >10MΩ
• Activation Time: <0.01s
• Response Time: <10ms
• Operating Temperature: −40°C to +85°C
• Lifespan: >1 million cycles
• Hysteresis: +10% (1000g force)
• Drift: <5% (2.5kg force, static load 24h)

Ideal For

• Pressure switches and touch interfaces
• Bed and seat monitoring systems
• Smart footwear and wearables
• Medical device systems
• Arduino and microcontroller projects

Package Contents

• 1× RP-L-170 Thin Film Pressure Sensor
