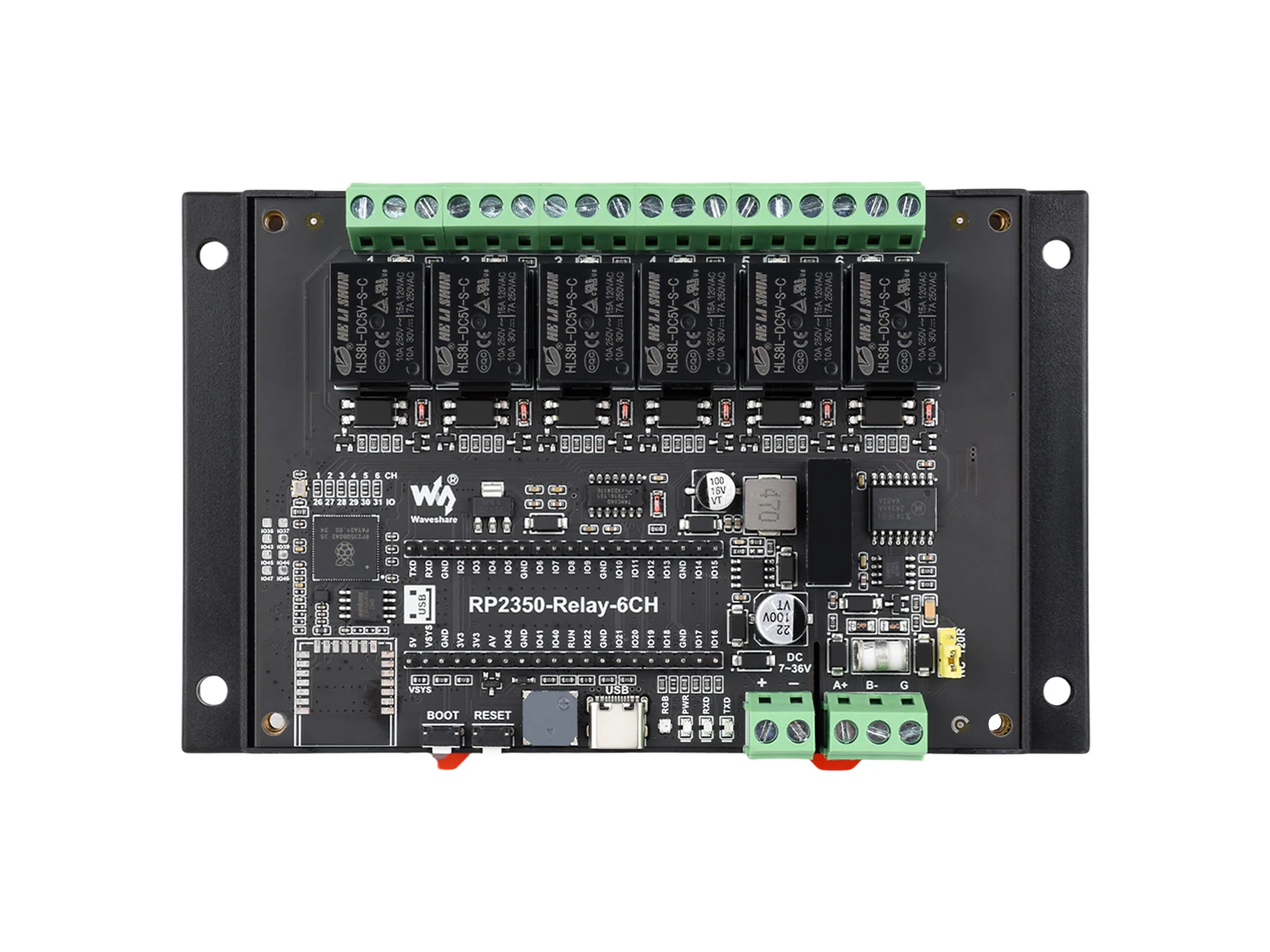

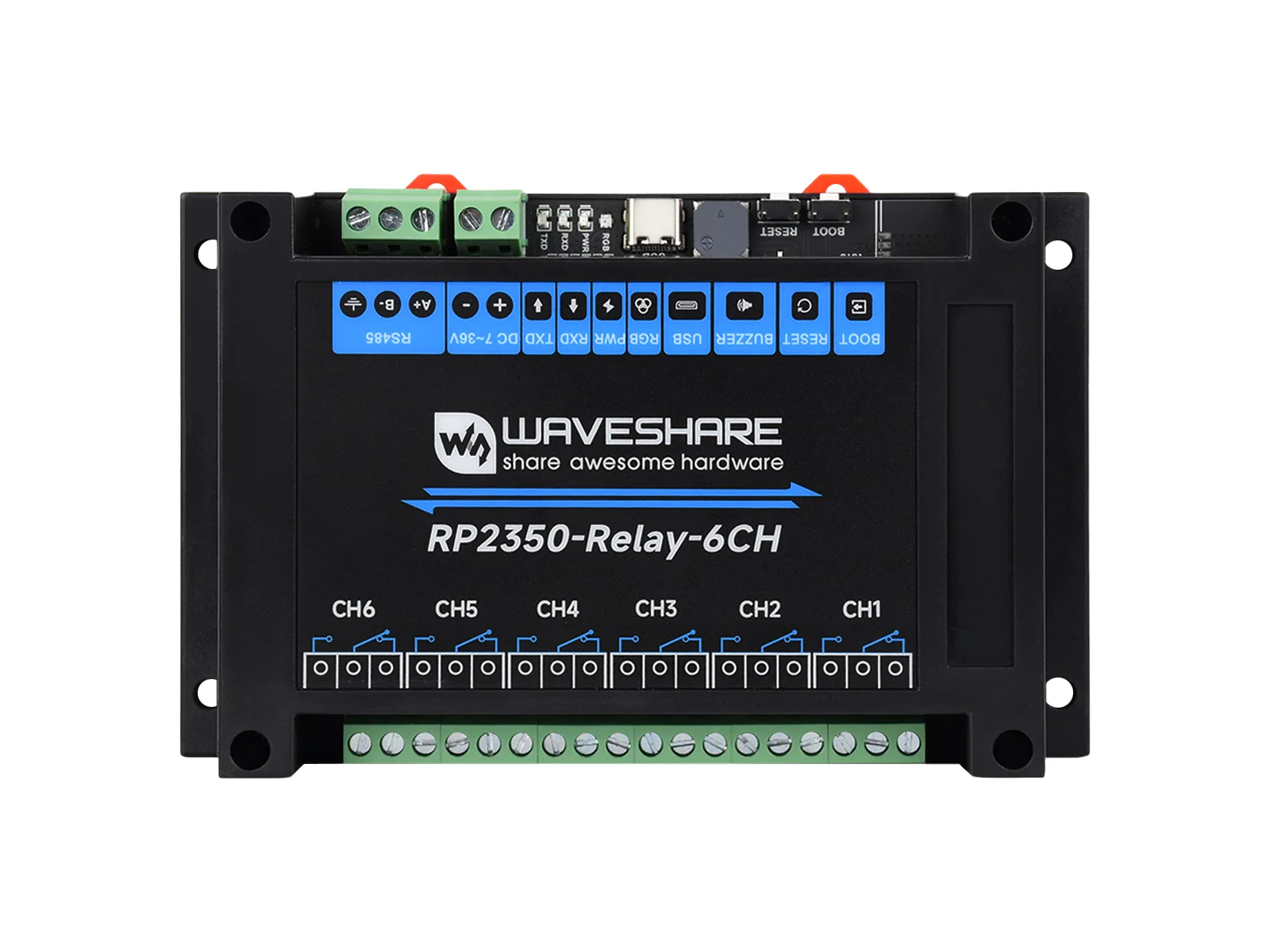

RP2350 6-Channel Industrial Relay Module – RS485/Pico HAT, Rail-Mount, Isolation Protection

Industrial 6-Channel RP2350 Relay Module with Onboard RS485 / Pico HAT Interfaces
Elevate your industrial automation with the robust Industrial 6-Channel RP2350 Relay Module, a versatile and resilient solution for managing multiple high-powered devices with ease. This industrial-grade module features a Rail-Mount ABS Protective Case for easy installation and reliable use in demanding industrial environments.
Product Features:
  • Powerful Microcontroller: Harness the flexibility and efficiency of the RP2350B chip with dual-core and dual-architecture design, supporting both ARM Cortex-M33 and Hazard3 RISC-V processors.
  • Enhanced Connectivity: Onboard RS485 interface and compatibility with Raspberry Pi Pico HATs ensure seamless integration with a plethora of industrial modules and sensors.
  • Superior Isolation: With power isolation, optocoupler isolation, and digital isolation, the relay module delivers unparalleled protection against external electrical disturbances.
  • Versatile Power Supply: Accepts a wide input voltage range of 7~36V, adeptly accommodating the fluctuating power demands of industrial settings.
  • High-Quality Relays: Six channels with contacts rated ≤10A 250VAC/30VDC provide the capacity to control substantial electrical loads with reliability.
  • Intuitive Indicators: Features RGB LED, power, and RS485 TX/RX indicators for clear and immediate monitoring of the module's operational status.
Specifications:
  • Microcontroller: RP2350B
  • Wireless: (For Wi-Fi version only) 2.4GHz Wi-Fi (802.11n), Bluetooth 5.2, BLE
  • Power Supply Screw Terminal: 7~36V
  • Relay Channels: 6 with 1NO 1NC contact form
  • USB Connector: Type-C for programming, USB 1.1 support
  • RS485 Interface: Onboard with isolation, screw terminal with surge protection
Included in the Package:
  • RP2350-Relay-6CH or RP2350-Relay-6CH-W (Wi-Fi version)
  • Screwdriver
Application Scenarios:
Ideal for controlling various industrial machines, HVAC systems, and high-power applications within factory automation, home automation, or any context requiring reliable and isolated interfacing with electrical systems.
Programming and Expansion:
Leverage C/C++, MicroPython, or Arduino IDE for flexible programming. Expand with additional functionality such as RTC, CAN, RS232, LoRa, or sensor modules via the onboard Pico HAT compatible interface.
Safety and Reliability:
Constructed with an eye on durable performance, this relay module satisfies stringent industrial requirements and assures secure device actuation, significantly reducing the risk of equipment damage.
Get Started:
Access a comprehensive SDK, resourceful documentation, and detailed tutorials at Waveshare's Wiki to jumpstart your development with the Industrial 6-Channel RP2350 Relay Module.
Dimensions and Weight:
  • Enclosure Dimensions: 145 × 90 × 40mm
  • Weight: 0.228 kg
Upgrade to smart, isolated, and controlled power management in your industrial projects with the Industrial 6-Channel RP2350 Relay Module – the reliable choice for advancing automation.
