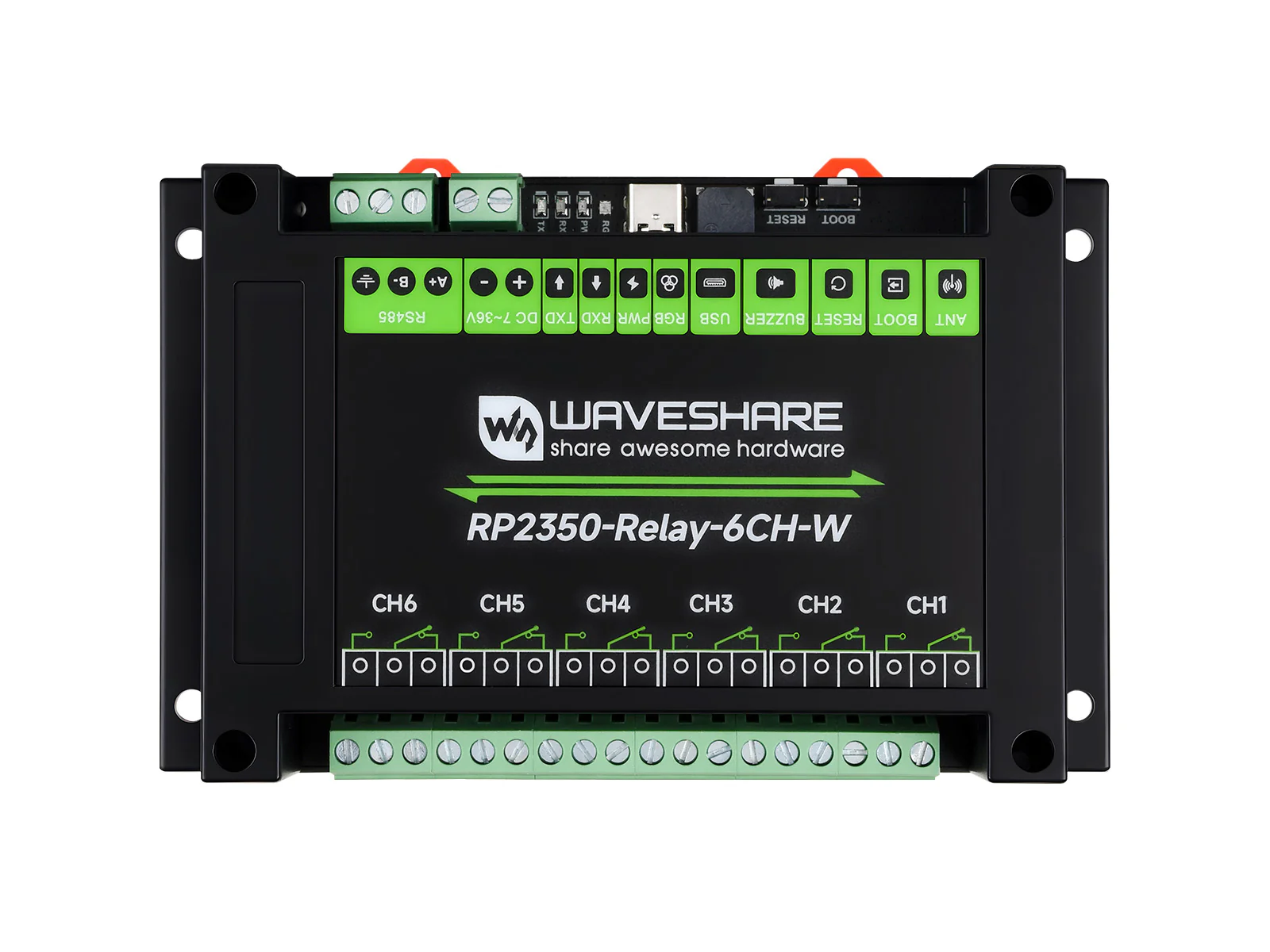

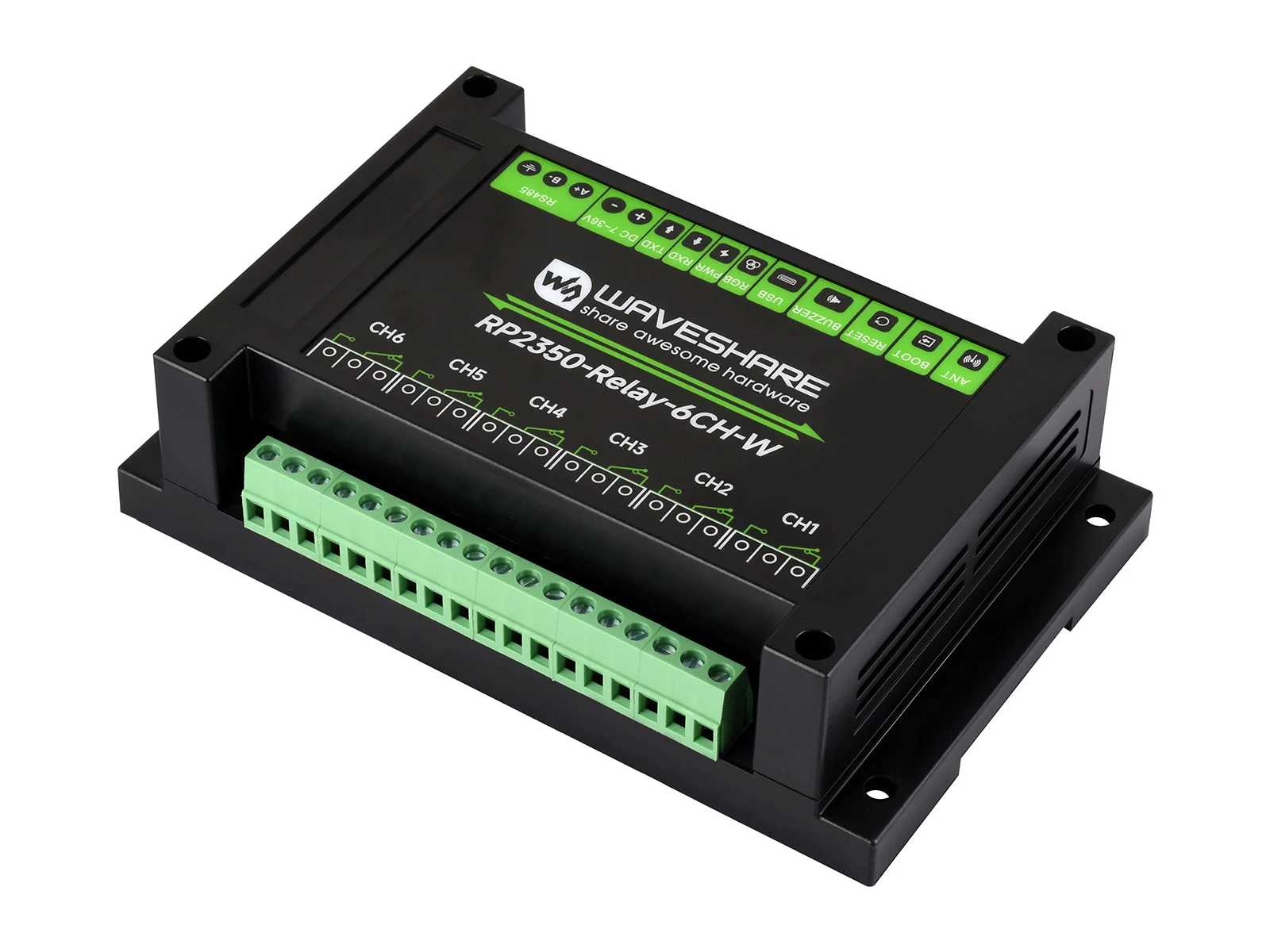

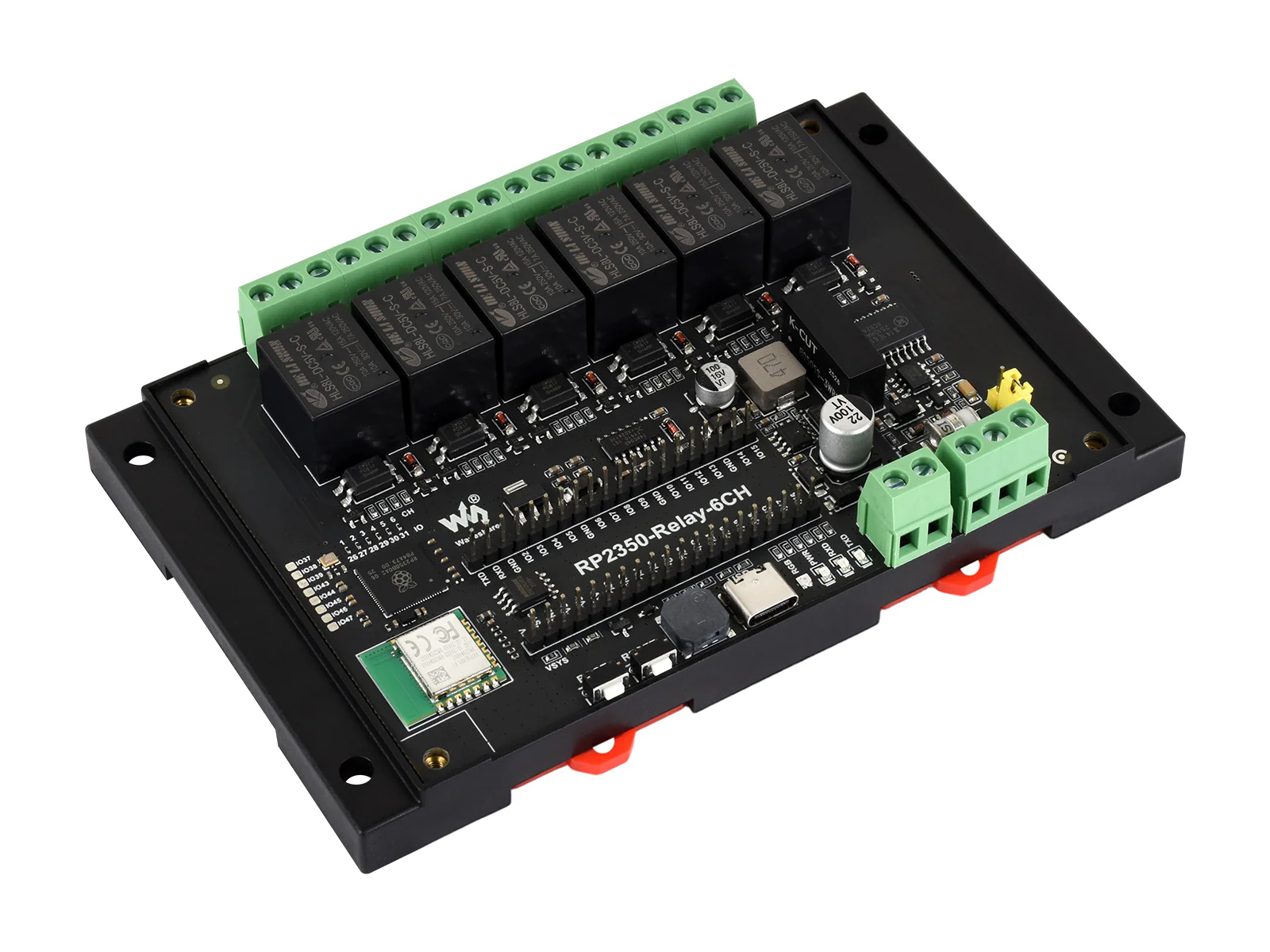

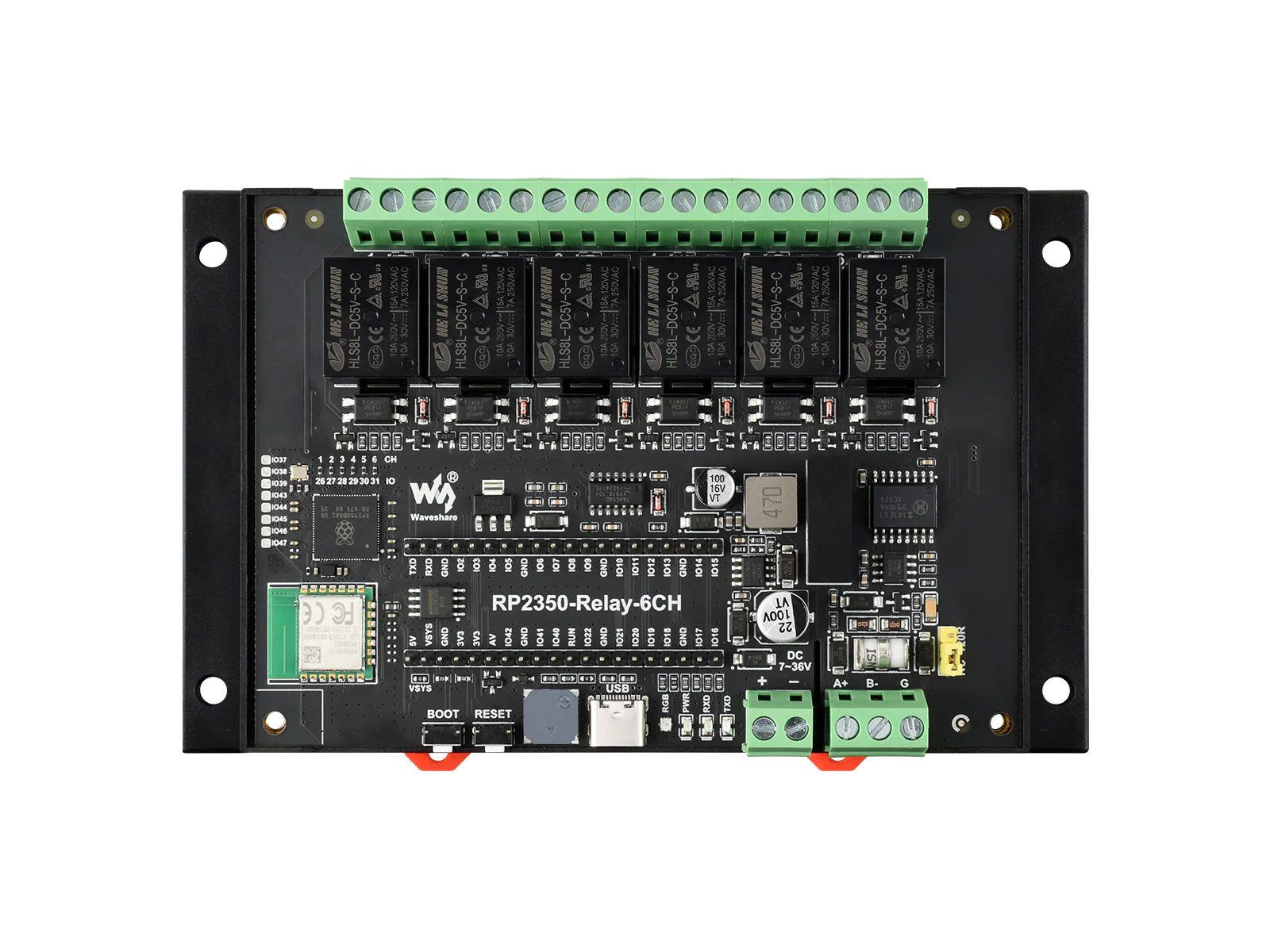

RP2350 Pico Relay Module 6-Channel – RS485, Isolation Protection, Rail-Mount with Wireless
Industrial-Grade 6-Channel RP2350 Relay Module – Versatility Meets Robustness
Enhance your industrial automation systems with the unparalleled reliability and flexibility of our Industrial 6-Channel RP2350 Relay Module. Engineered to meet the rigorous demands of modern industry, this robust module combines onboard RS485 and Pico HAT interfaces with state-of-the-art isolation protection circuits, housed in a sturdy rail-mount case.
Key Features:
- Robust Microcontroller: Featuring the RP2350B chip from Raspberry Pi, UK, with a dynamic dual-core, dual-architecture design that supports ARM Cortex-M33 and Hazard3 RISC-V processors at up to 150MHz.
- Flexible Communication: Onboard isolated RS485 interface, compatible with numerous Modbus industrial modules and sensors, and an optional Wi-Fi module for wireless connectivity.
- Advanced Isolation Protection: Equipped with power, optocoupler, and digital isolation to ensure operational stability and protect against external interference.
- High-Quality Relays: Six channels with ≤10A 250VAC/30VDC contact rating for controlling various loads, from 220VAC appliances to sub-30VDC devices.
- Expandable Interface: A 40PIN header allows seamless expansion with compatible Raspberry Pi Pico HATs, enhancing functionality with extra modules like RTC, CAN, RS232, and more.
- Convenient Power Options: Designed for industrial use with a wide 7~36V DC input range, and Type-C connectivity for programming and USB communications.
- Monitoring Made Easy: Visual indicators include a built-in buzzer, colorful RGB LED for status tracking, and dedicated power supply and RS485 TX/RX indicators.

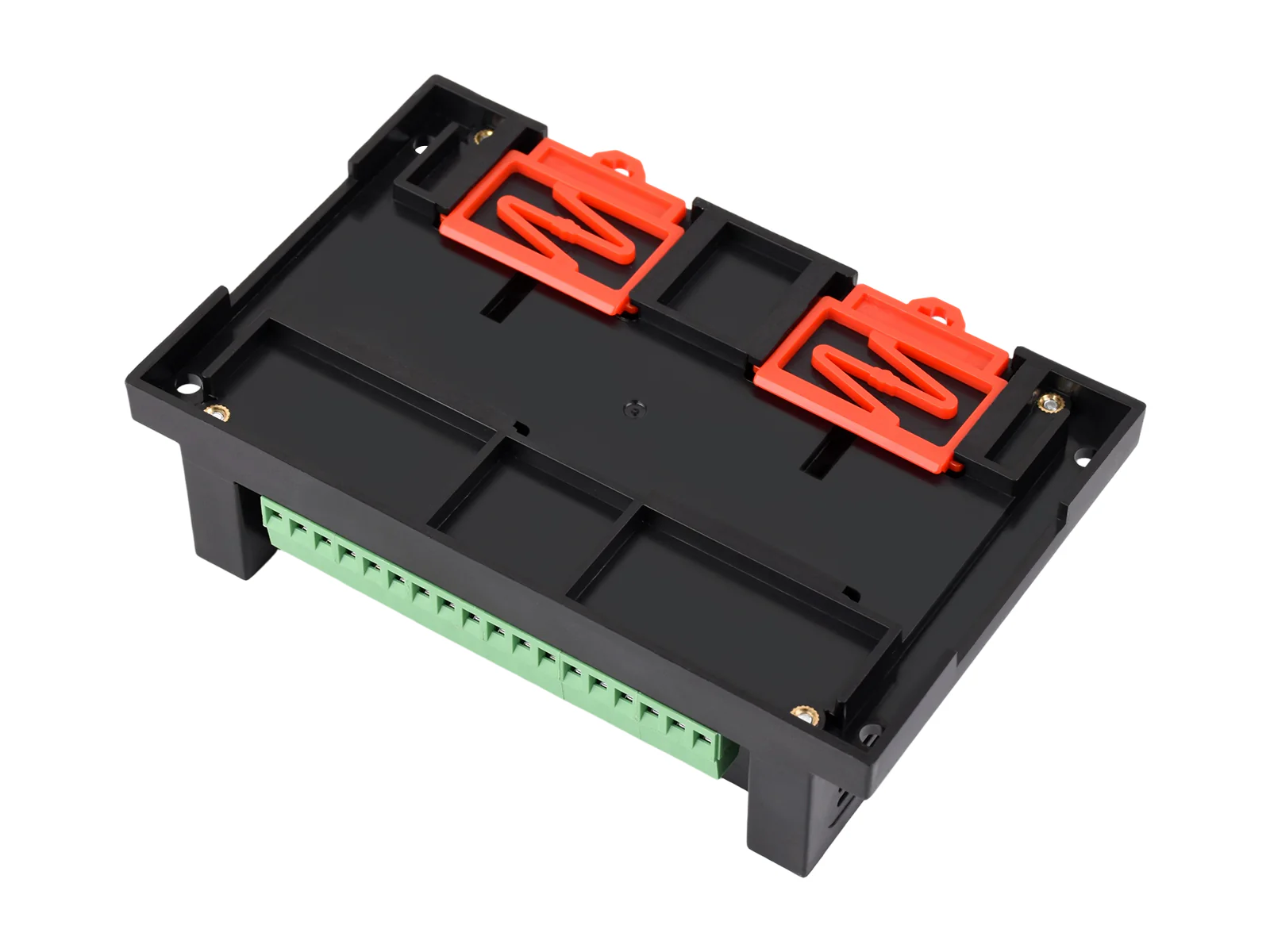

- Installation Simplicity: Packaged in a durable ABS case with rail-mount support for secure installation and operation.
- Comprehensive Software Support: Supports C/C++, MicroPython, Arduino IDE, accompanied by an extensive SDK, development resources, and tutorials for quick and easy setup.
- RP2350-Relay-6CH-W: Includes built-in Raspberry Pi Radio Module 2 with Wi-Fi 4 and Bluetooth 5.2 support for wireless applications.
Technical Specifications:
- Processor: RP2350B Dual-core with up to 150MHz frequency
- Memory: 520KB SRAM, 16MB Flash
- Relay Channels: 6 with 1NO 1NC contact form
- Communication: USB Type-C, Isolated RS485
- Power Supply: Screw terminal, 7~36V DC input
- Dimensions: 145 × 90 × 40mm
- WiFi / Bluetooth: Wi-Fi 4 (802.11n), Bluetooth 5.2, BLE (Wi-Fi model only)
- Programming: Drag-and-drop mass storage over USB
In the Box:
- RP2350-Relay-6CH or RP2350-Relay-6CH-W (depending on the version chosen)
- Screwdriver for ease of installation
Streamline your industrial processes with this versatile and durable relay module. For more information, visit our resource page at www.waveshare.com/wiki/RP2350-Relay-6CH and elevate your automation with efficiency and reliability.
