The RPLIDAR A2M6 is a 360-degree laser scanner development kit built on SLAMTEC's low-cost laser triangulation measurement system. It delivers reliable distance measurement in indoor environments and outdoor settings without direct sunlight, with every unit tested to meet FDA Class I laser safety standards.

With a sample rate of over 4,000 measurements per second and a range of up to 18 metres, the A2M6 is well-suited for robotics applications including autonomous navigation, obstacle avoidance, and real-time mapping.

Key Features

• 360° Scanning – Full rotational coverage at 10 Hz scan rate
• 0.15–18 m Range – Suitable for indoor and sheltered outdoor use
• ≥4,000 Hz Sample Rate – High-density point cloud data
• 0.9° Angular Resolution – Detailed environmental mapping
• Distance Accuracy – <0.5 mm at 0.15–1.5 m; <1% across full range
• 0.25 ms Sample Duration – Fast response for real-time applications
• FDA Class I Laser – Eye-safe operation
• Weight – 482 g

Ideal For

• Robot obstacle avoidance and navigation
• Autonomous mapping and SLAM
• Route planning and pathfinding
• Indoor environment scanning and modelling

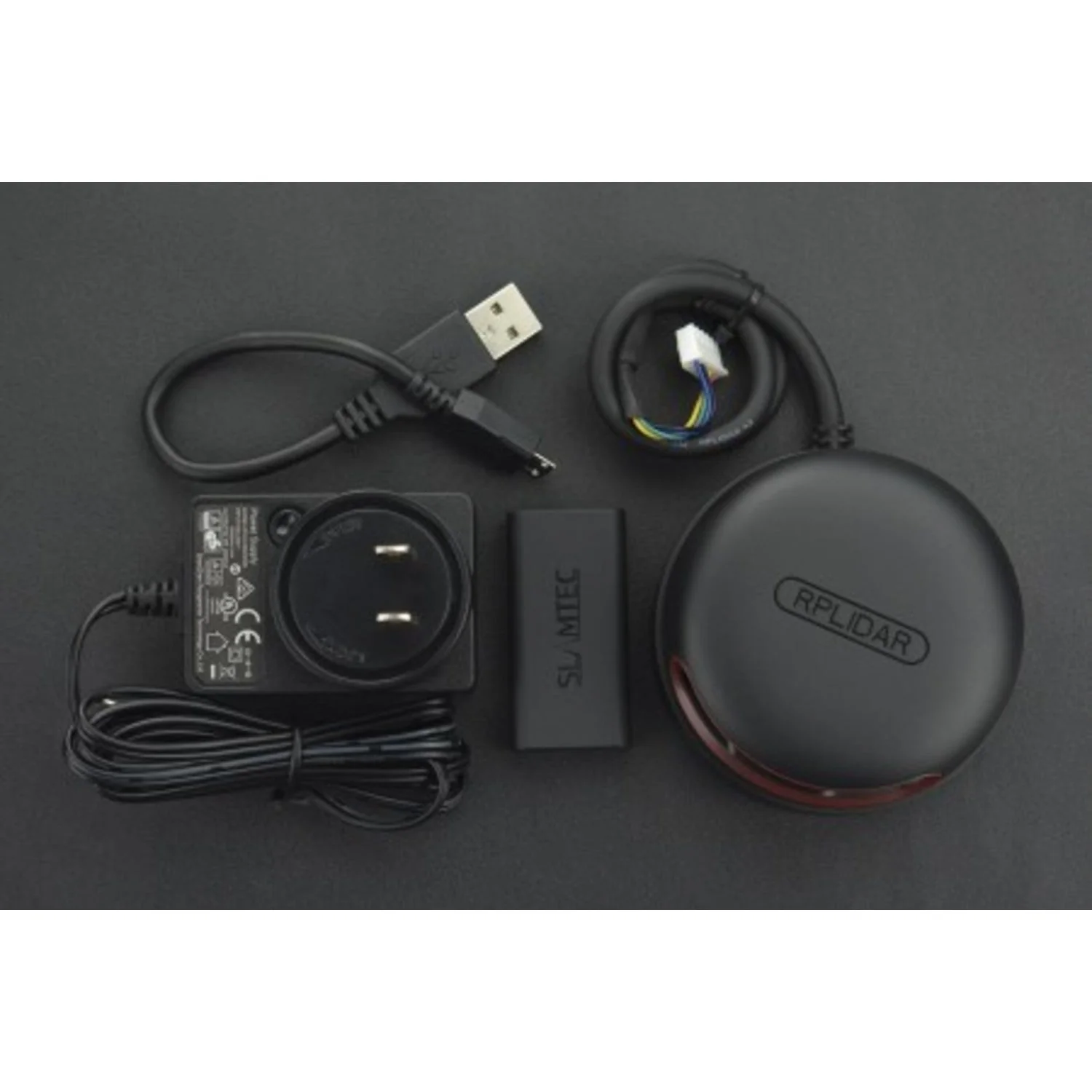

Package Contents

• 1× RPLIDAR A2M6 360° Laser Scanner Development Kit

Resources

• SLAMTEC RPLIDAR Product Page & Downloads
