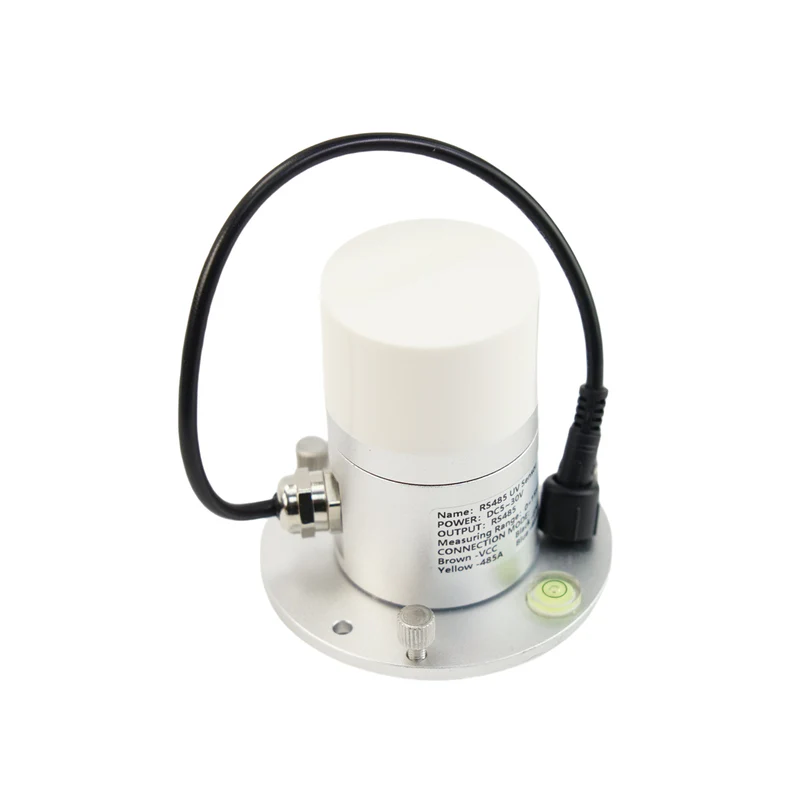

An industrial-grade RS485 UV sensor that measures ultraviolet intensity (0–15 mW/cm²) and UV index (0–15) across the 290–390 nm wavelength range, covering both UVA and UVB bands. It communicates via the Modbus-RTU protocol over RS485, making it easy to integrate with Arduino and other microcontrollers using a TTL-to-RS485 adapter.

Housed in an IP67-rated metal aluminium shell, the sensor is built for long-term outdoor and industrial use. It operates on a wide DC 5–30V power supply and delivers readings with 0.01 mW/cm² resolution and a fast 0.2-second response time.

Key Features

• 290–390 nm Wavelength Range – Covers UVA and UVB bands
• UV Intensity and Index – Measures 0–15 mW/cm² intensity and 0–15 UV index
• RS485 Modbus-RTU – Standard industrial communication protocol
• IP67 Rated – Dust-tight and water-resistant aluminium housing
• Wide Voltage Input – DC 5–30V
• Fast Response – 0.2-second measurement time

Specifications

• Power Supply – DC 5–30V
• Working Current – <10 mA
• Output – RS485 (Modbus-RTU)
• UV Intensity Range – 0–15 mW/cm²
• Resolution – 0.01 mW/cm²
• Accuracy – ±10% FS (@ 365 nm, 60% RH, 25°C)
• UV Index Range – 0–15
• Wavelength Range – 290–390 nm
• Response Time – 0.2 s
• Operating Temperature – -25 to +60°C
• Protection Rating – IP67
• Sensor Cable – 20 cm
• Adapter Cable – 70 cm

Ideal For

• Environmental UV monitoring and climate studies
• Health protection and UV exposure tracking
• Agricultural crop growth monitoring
• Photovoltaic system assessment
• Laboratory UV research

Package Contents

• 1× RS485 UV Sensor
• 1× Adapter Cable
• 1× Screw Package

Resources

• DFRobot Product Wiki
