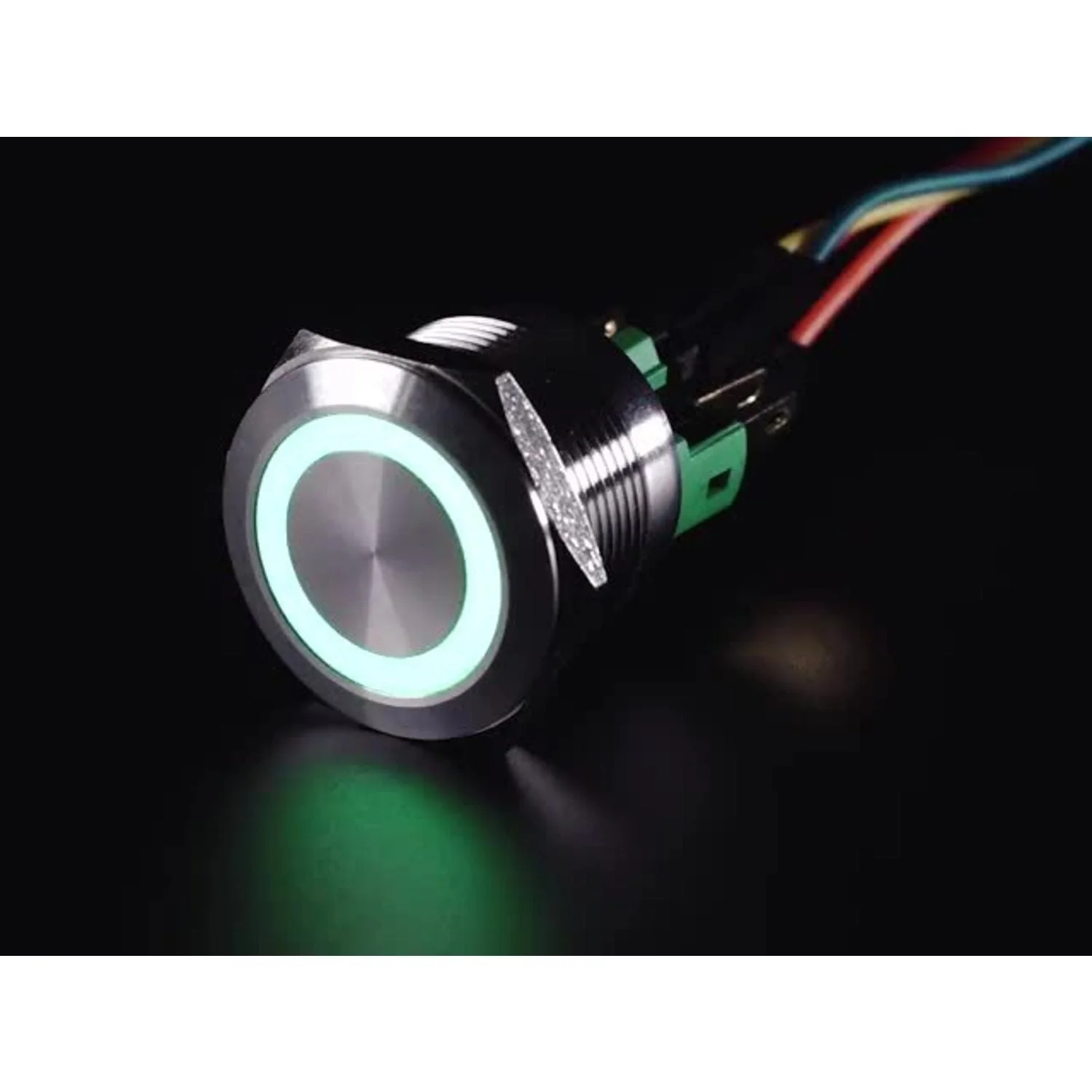

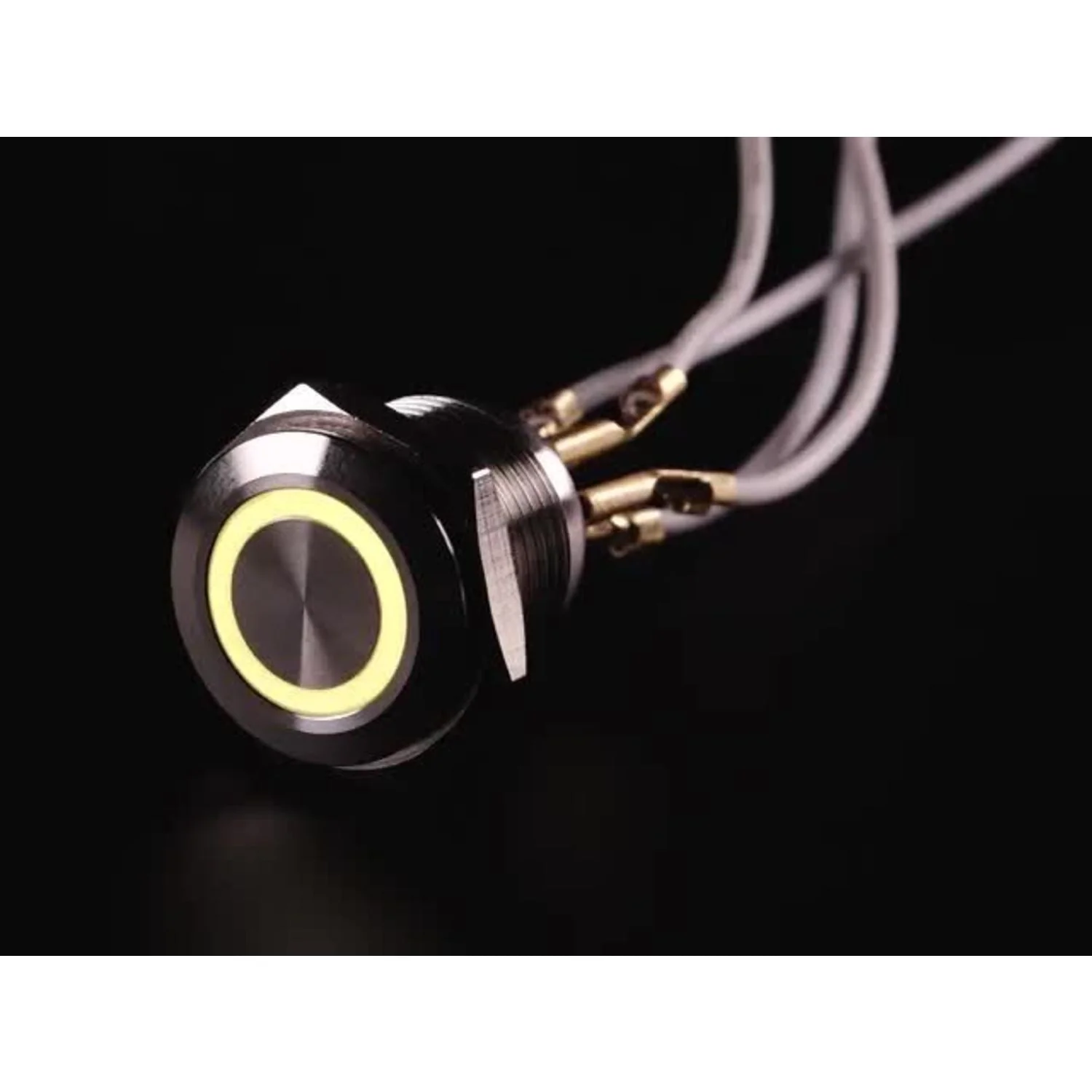

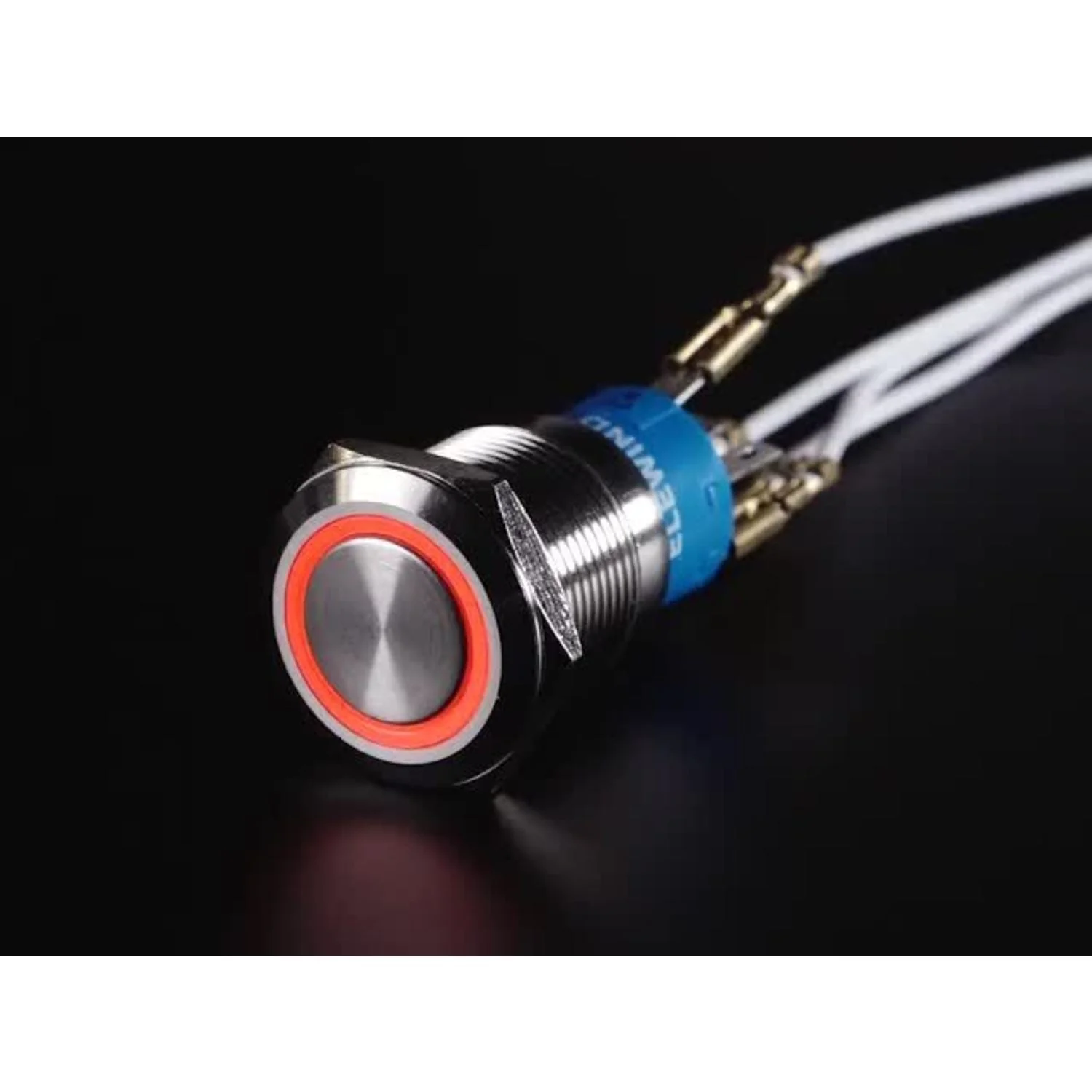

This chrome-plated rugged metal pushbutton features a built-in RGB LED ring light and a latching on/off mechanism. Press once to latch on, press again to release — unlike momentary buttons, it stays in position. Simply drill a 22mm hole into any panel up to 6mm (1/4") thick and secure with the included rubber gasket for a water-resistant fit.

The switch and LED are electrically separated, so you can independently read the switch state and control the LED colour using a microcontroller with PWM on the RGB pins.

Key Features

• 22mm Panel Mount – Fits panels up to 6mm thick with included rubber gasket
• Latching On/Off – Press to latch, press again to release
• RGB LED Ring – Full-colour illumination with built-in resistor (3–6V direct drive)
• Dual SPST Switches – Normally-open and normally-closed contacts (electrically separate)
• Chrome-Plated Metal – Rugged, professional appearance
• PWM Compatible – Mix any LED colour by driving the R, G, B cathodes

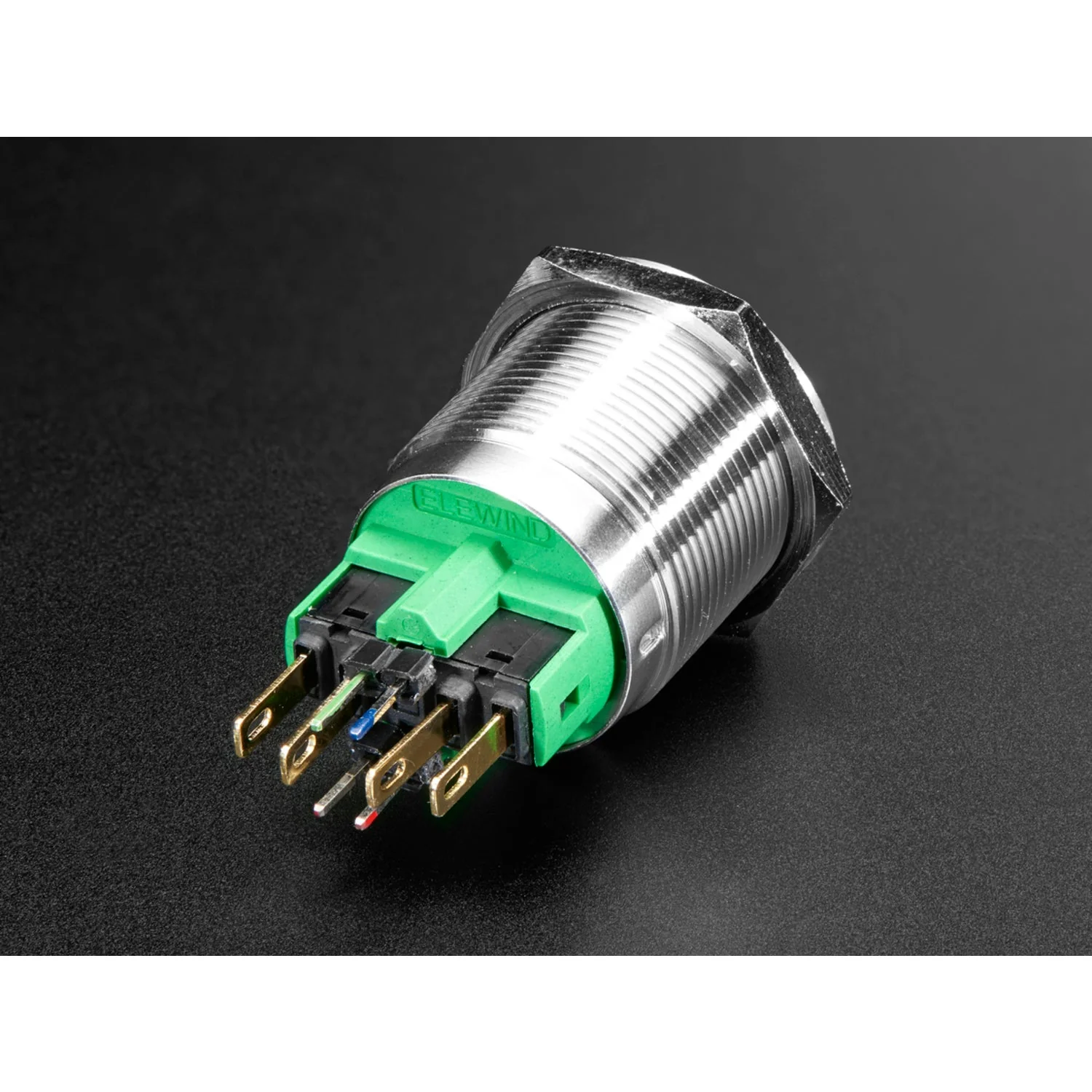

Wiring Guide

• RGB LED: 1 anode (3–6V) + 3 cathodes (R, G, B — pull to ground to illuminate)
• Switches: 2 inner spade contacts (normally-closed) + 2 outer spade contacts (normally-open)

Ideal For

• Control panels and custom enclosures
• Power on/off switches with status indication
• Microcontroller-driven RGB status buttons
