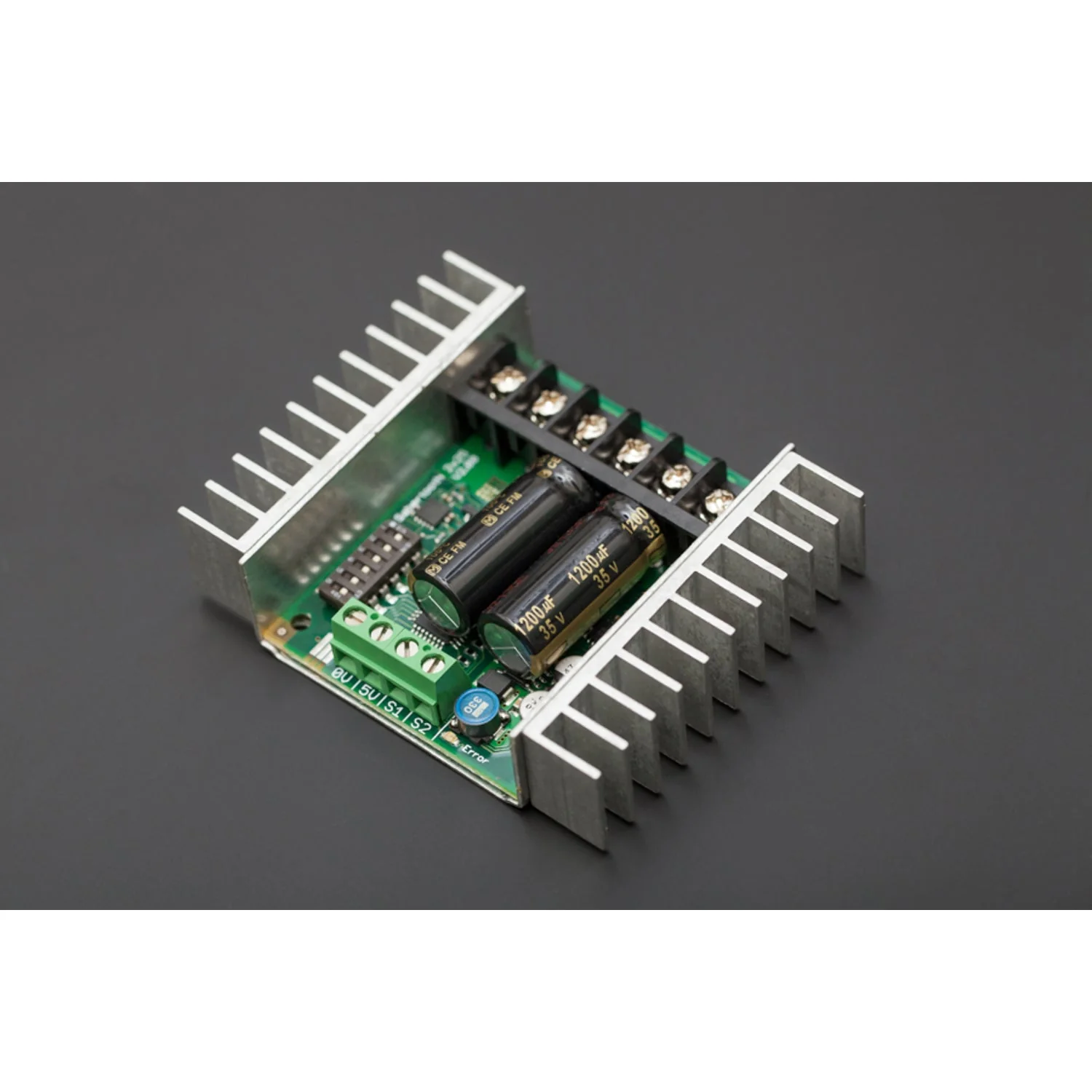

The Sabertooth 2X25 is a versatile dual DC motor driver capable of supplying up to 25A continuous (50A peak) per channel. Suitable for high-powered robots up to 100lbs in combat or 300lbs for general-purpose robotics, it features synchronous regenerative drive that recharges batteries during braking and reversing.

Controllable via analogue voltage, R/C, simplified serial, or packetised serial, with independent and speed+direction operating modes set via on-board DIP switches. Screw terminal connectors mean no soldering is required. A built-in 5V BEC powers your microcontroller or R/C receiver, and lithium cutoff mode enables safe use with Li-ion and LiPo batteries.

Key Features

• Dual 25A Channels – 25A continuous, 50A peak per channel
• Synchronous Regenerative Drive – Recharges batteries during braking and reversing for fast stops
• Multiple Input Modes – Analogue, R/C, simplified serial, and packetised serial
• DIP Switch Configuration – No jumpers to lose; set operating mode on-board
• Thermal & Overcurrent Protection – Safe operation even during stalls
• Built-in 5V BEC – Powers microcontrollers or R/C receivers directly
• Lithium Battery Mode – Safe cutoff for Li-ion and LiPo packs
• Ultrasonic Switching – 32kHz switching frequency for silent operation
• Screw Terminals – No soldering required

Specifications

• Current: 25A continuous, 50A peak per channel
• Voltage: 6–24V nominal, 30V absolute maximum
• Switching Frequency: 32kHz (ultrasonic)
• Input Modes: Analogue, R/C, simplified serial, packetised serial
• Dimensions: 65 × 80 × 20 mm

Ideal For

• Combat and competition robotics
• Differential drive (tank-style) robots
• High-powered general-purpose mobile robots
• R/C vehicles and autonomous platforms

Package Contents

• 1× Sabertooth Dual 25A DC Motor Driver

Resources

• Datasheet (PDF)
• Quick Start Guide (PDF)
• DIP Switch Wizard
• Motor Driver Efficiency Comparison
