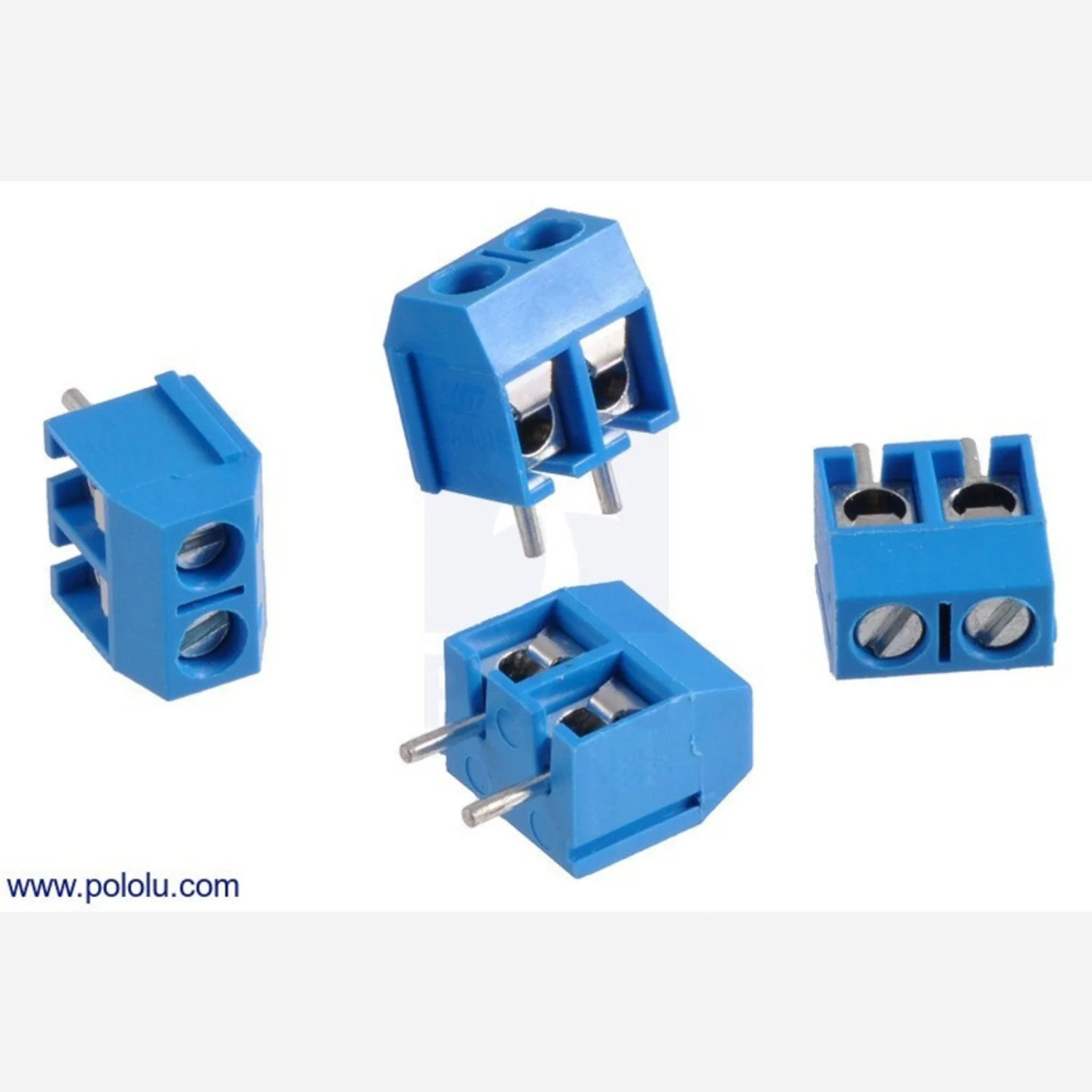

A pack of four 2-pin screw terminal blocks with 5 mm pitch and side-entry wire orientation. Simply tighten or loosen the screws to connect or release wires — no soldering needed for the wire connection itself.

Each block features a ridge on one side and a slot on the other, allowing multiple blocks to slide and lock together to form longer strips as needed. The side-entry design routes wires parallel to the PCB surface.

Key Features

• 2-Pin Configuration – One pair of screw-fastened terminals per block
• 5 mm Pitch – Standard spacing for PCB mounting
• Side Entry – Wires enter parallel to the board surface
• Interlocking Design – Ridge-and-slot mechanism lets you join blocks into longer strips
• Screw Fastening – Easy wire connect/disconnect without soldering

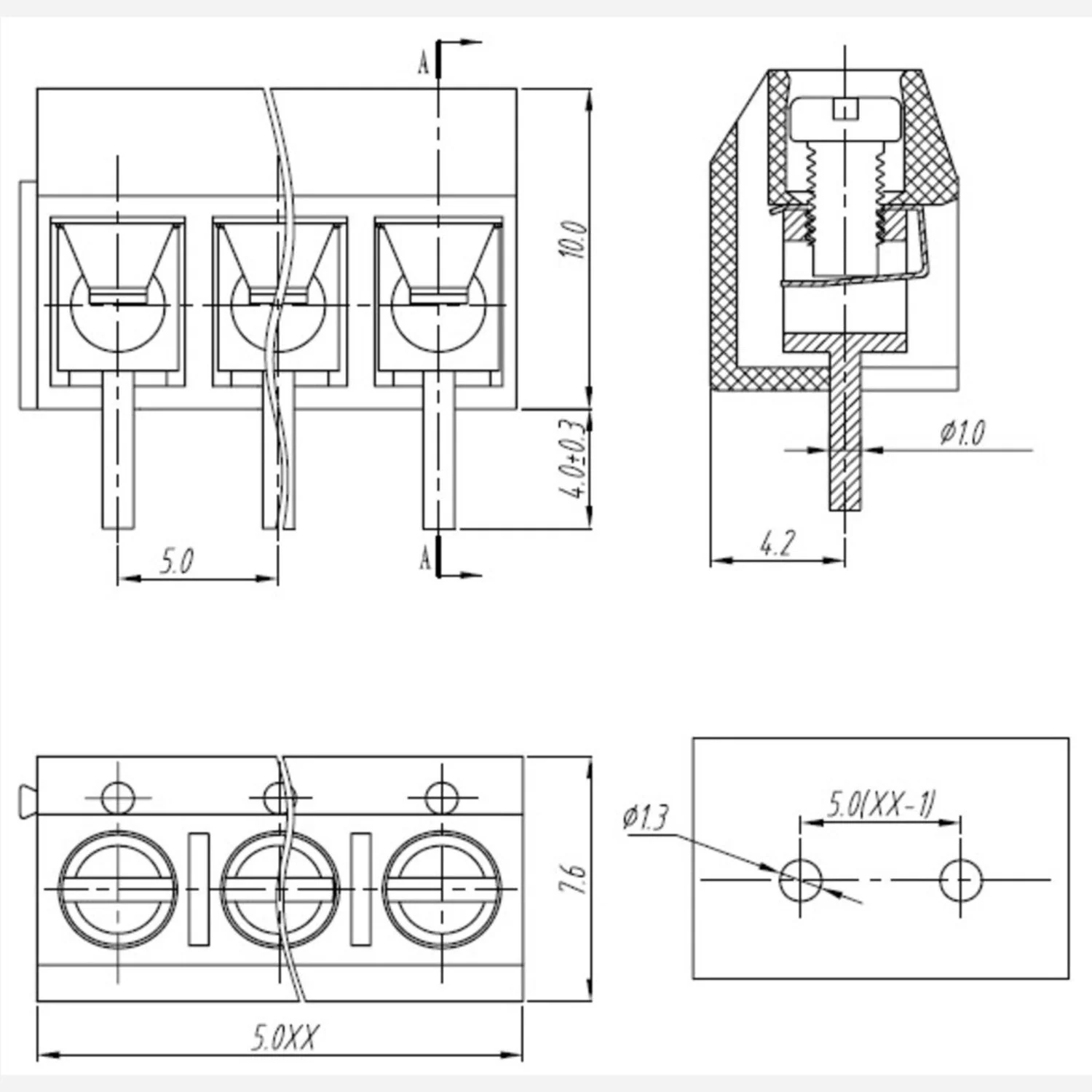

Specifications

• Pins – 2
• Pitch – 5 mm
• Wire Entry – Side entry
• Quantity – 4 per pack

Ideal For

• PCB prototyping and custom boards
• Power and signal wire connections
• Projects requiring easy wire swapping

Package Contents

• 4× Screw Terminal Block (2-pin, 5 mm pitch, side entry)
