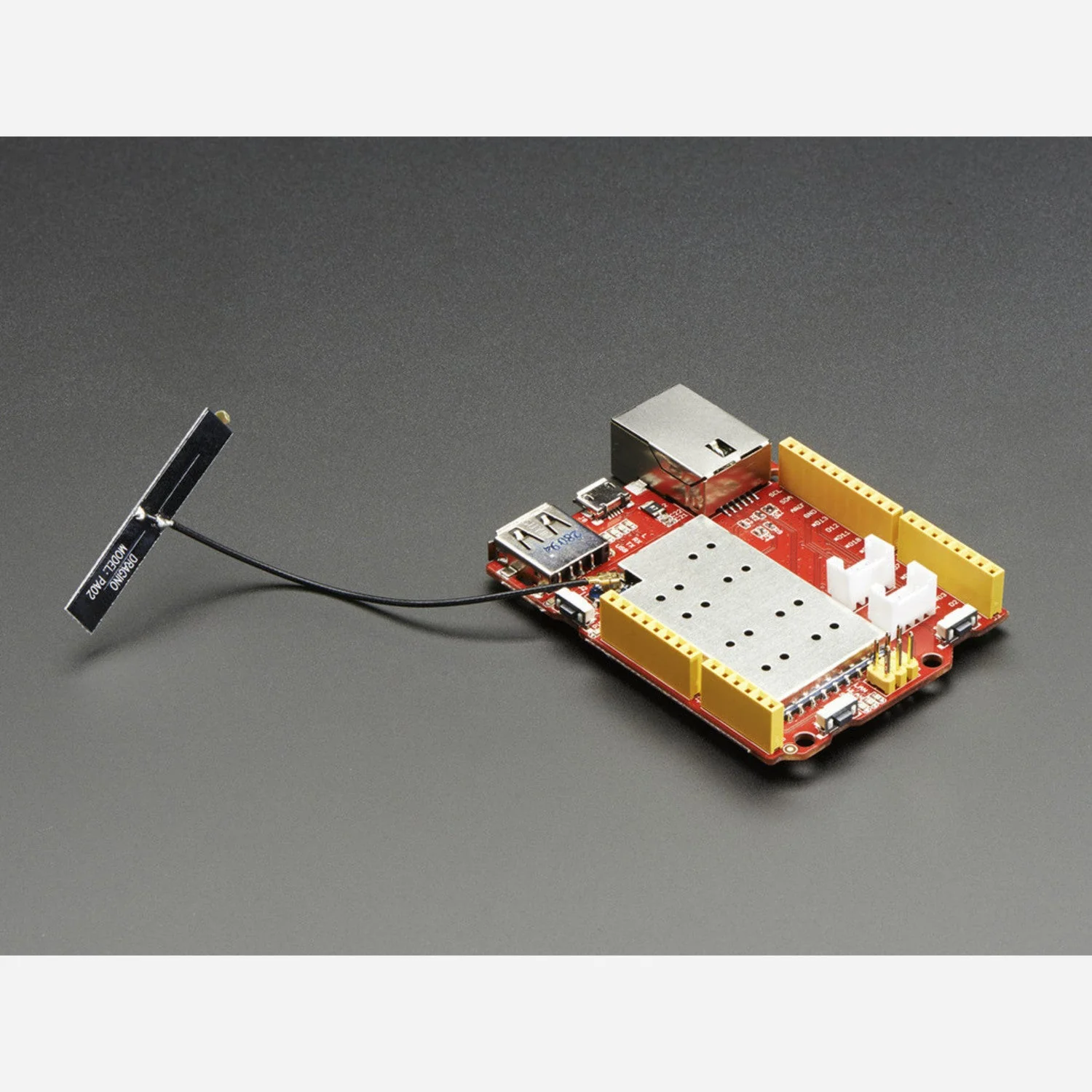

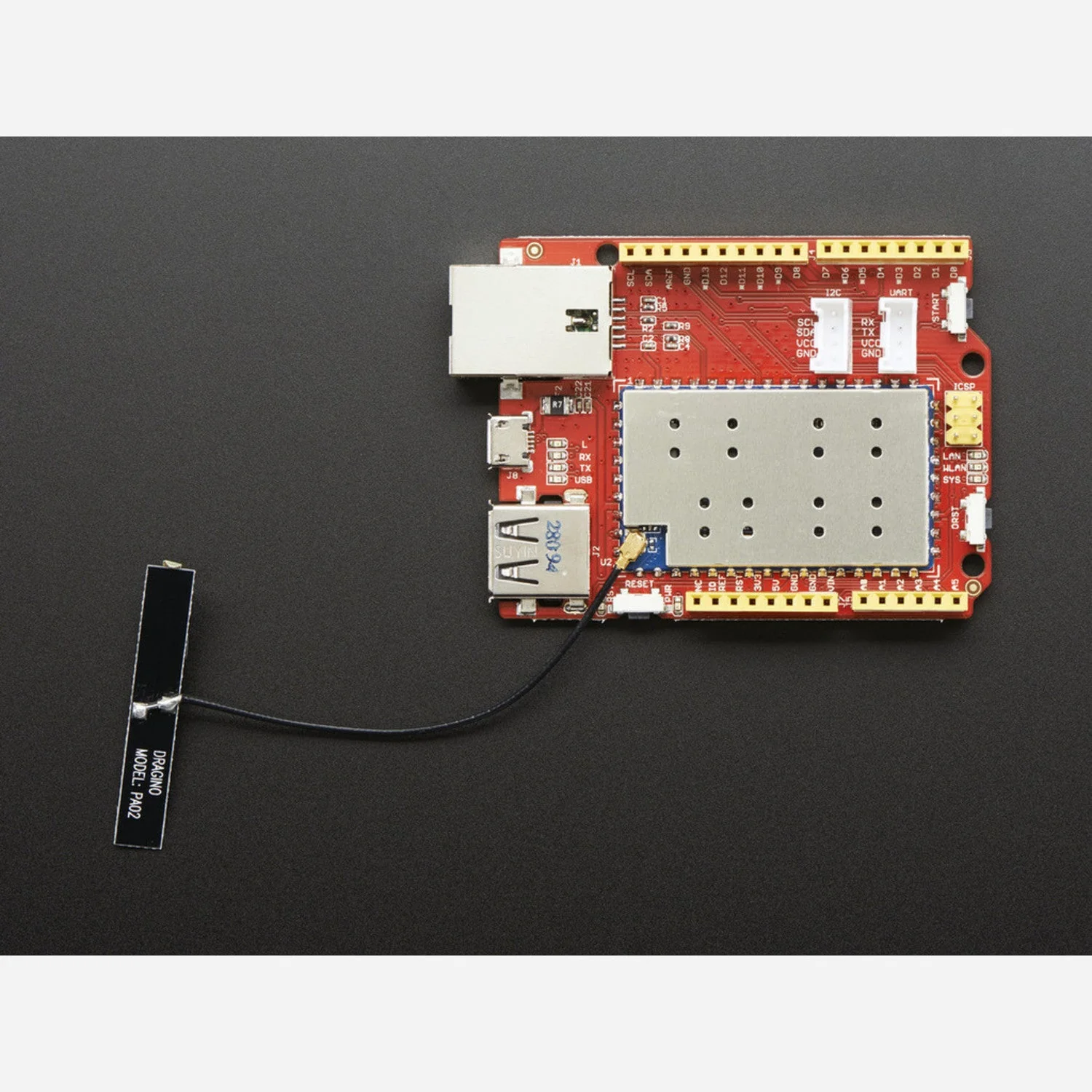

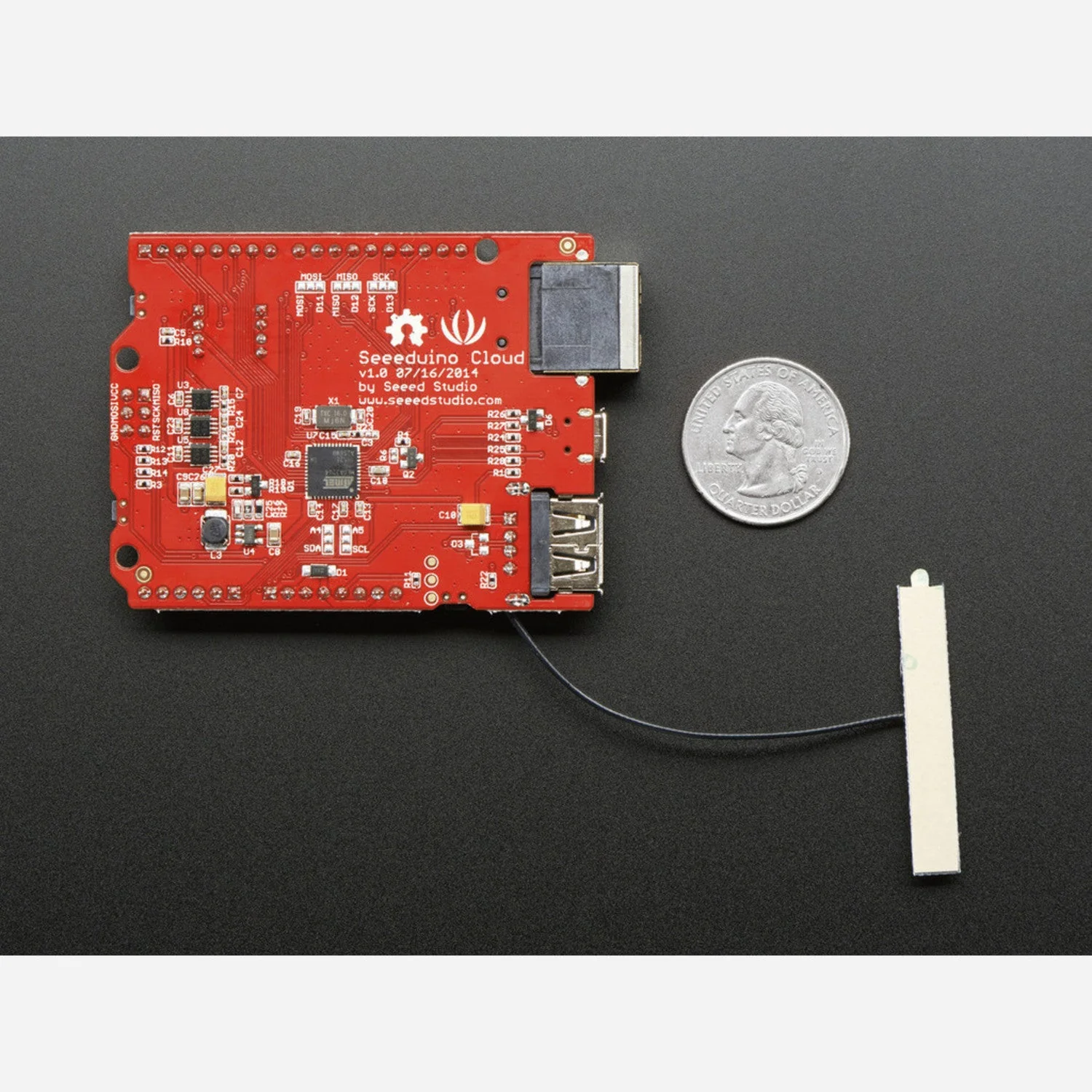

The Seeeduino Cloud combines an ATmega32u4 microcontroller with an embedded Linux system (OpenWrt) powered by the Atheros AR9331 processor. Compatible with the Arduino Yun, this board provides built-in Wi-Fi and Ethernet connectivity, making it ideal for IoT projects that need network access without external shields.

The dual-processor architecture lets you run Arduino sketches on the ATmega32u4 while offloading network operations, HTTP transactions, and web service processing to the Linux side via the Yun Bridge library. The board can be programmed over USB or wirelessly through Wi-Fi — no physical access needed.

Key Features

• Dual Processor – ATmega32u4 (16MHz) + Atheros AR9331 (400MHz) with OpenWrt Linux
• Built-in Wi-Fi – 802.11 b/g/n at 2.4GHz (150Mbps)
• Dual Ethernet Ports – 2× RJ45 connectors
• USB Host Port – USB-A for peripherals and prototyping
• 20 Digital I/O Pins – 7 PWM channels
• 12 Analog Inputs – A0 through A11
• 64MB RAM / 16MB Flash – On the Linux side for web services and applications
• Over-the-Air Programming – Program via Wi-Fi from the Arduino IDE
• Grove Connectors – I2C and UART for easy sensor integration
• Arduino Yun Compatible – Drop-in replacement using the Yun Bridge library

Ideal For

• IoT and connected device projects
• Web-connected sensor monitoring and data logging
• Network-enabled prototypes and smart devices
• Projects requiring both Arduino simplicity and Linux networking

Package Contents

• 1× Seeeduino Cloud board

Resources

• Seeed Studio Wiki
