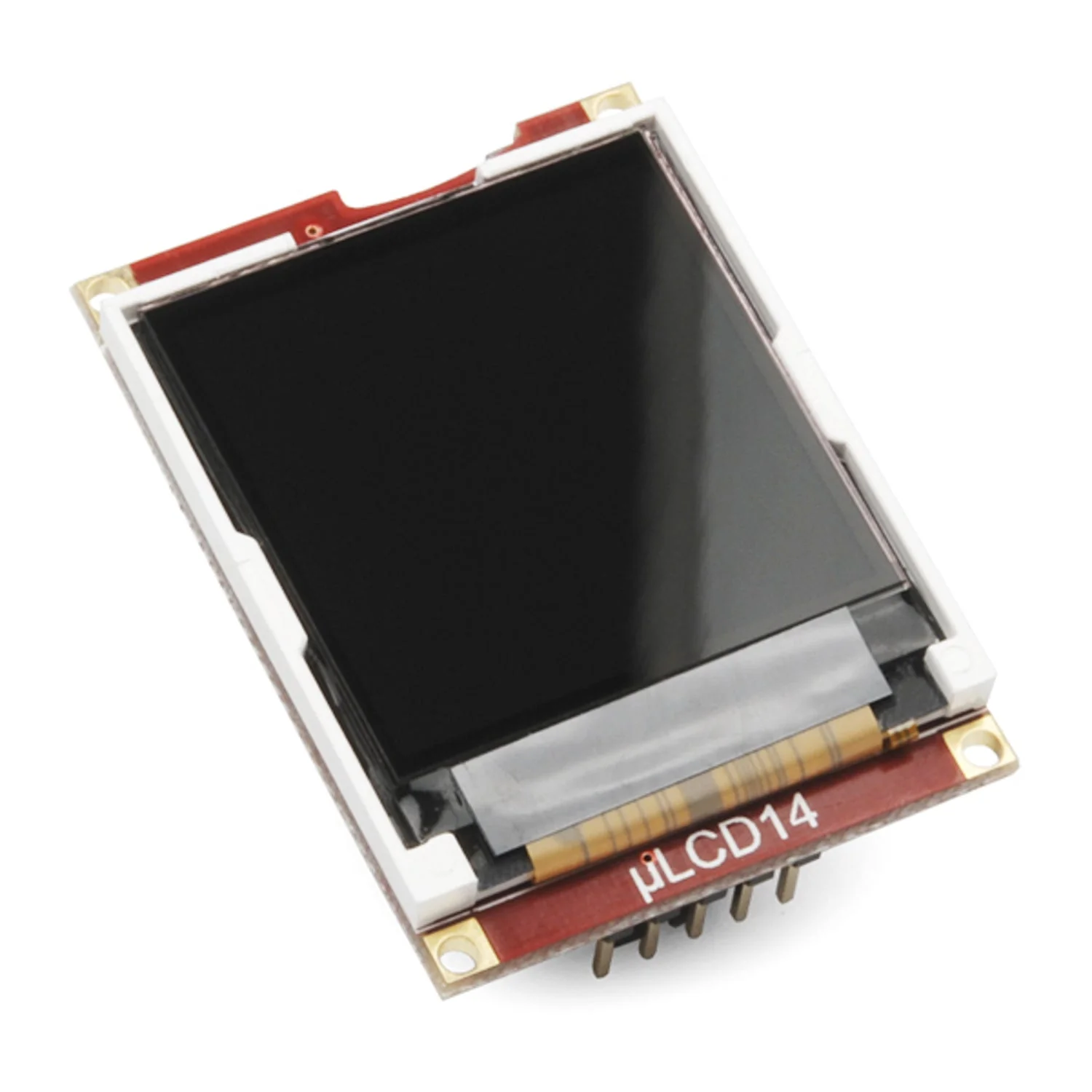

The µLCD-144-G2 (GFX) is a compact 1.44" colour LCD module with an embedded GOLDELOX-GFX2 graphics processor. It delivers standalone graphics capability — draw lines, circles, text, display images, animations, and video clips — all programmable in 4DGL, a high-level graphics language with syntax similar to C, BASIC, and Pascal.

The module works out of the box with the Workshop4 IDE (editor, compiler, linker, and downloader), letting you jump straight into developing embedded graphics applications.

Key Features

• 128×128 Resolution – 65K true-to-life colours on a 1.44" TFT LCD
• GOLDELOX-GFX2 Processor – Built-in graphics engine with extensive drawing functions
• 4DGL Programming – High-level graphics language (C/BASIC/Pascal-like syntax)
• 2× GPIO Ports – Digital I/O, A/D converter (8/10-bit), sound generation, joystick input, Dallas 1-Wire
• Serial TTL Interface – Auto-baud from 300 to 600K baud
• Micro-SD Card Slot – Store icons, images, animations (supports up to micro-SDHC)
• 10-Pin Interface – 3.3V out, 2× I/O, reset, RX, TX, +5V, GND
• LED Backlight – >150° viewing angle

Specifications

• Display – 128×RGB×128, 65K colours, TFT LCD
• Screen Size – 1.44" diagonal
• Active Area – 25.5 × 26.5 mm
• Module Dimensions – 43 × 31 × 6.4 mm
• Supply Voltage – 4.0–5.5V (single supply)
• Flash Memory – 10 KB for user code
• RAM – 510 bytes (255 × 16-bit variables)
• SD Card Support – 64 MB to 2 GB micro-SD; 4 GB+ micro-SDHC

Ideal For

• Embedded GUI applications and dashboards
• Instrument panels and status displays
• Interactive prototyping with serial control
• Education in embedded graphics programming

Resources

• uLCD-144-G2 Datasheet (PDF)
