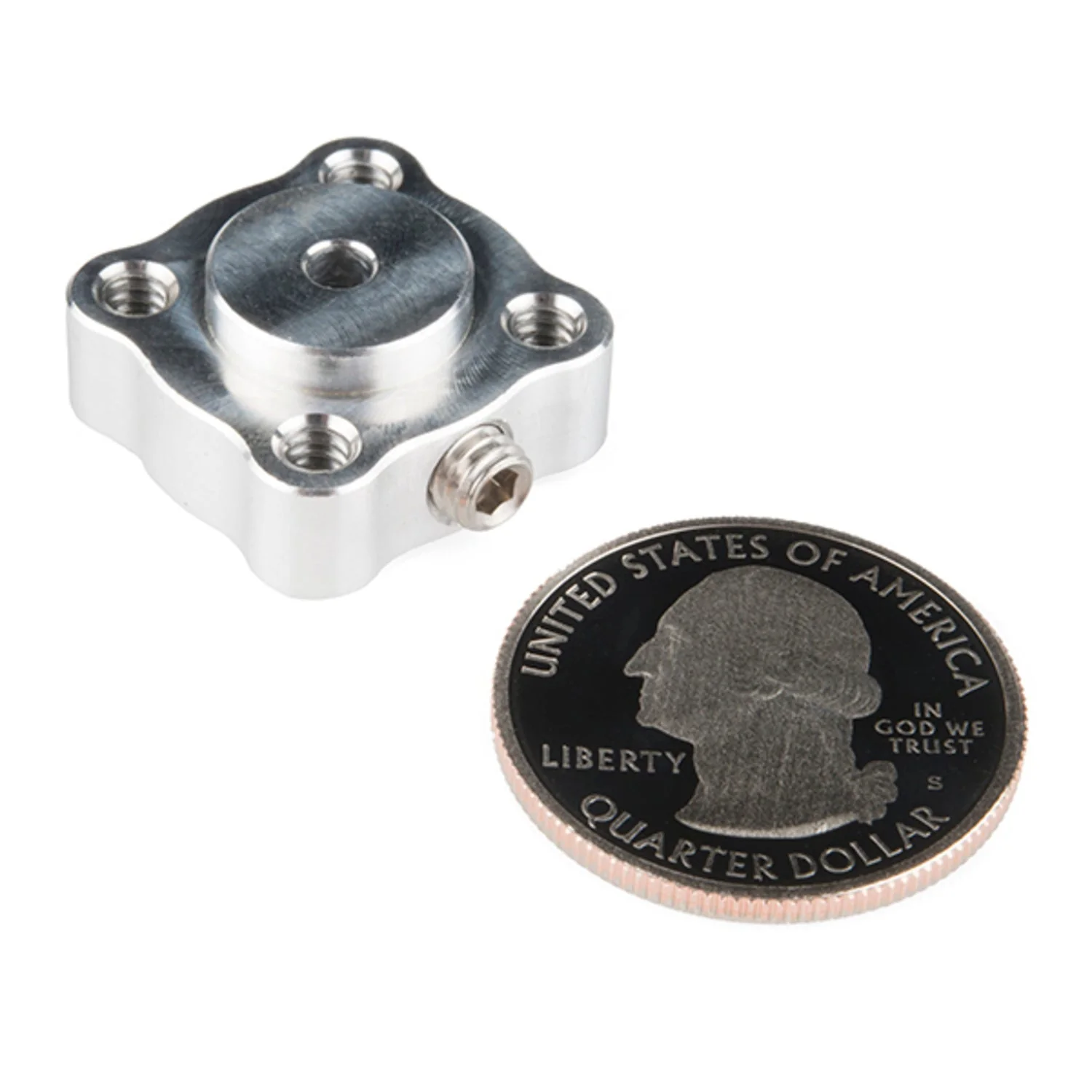

A precision-machined set screw hub from the Actobotics robotics building system. It provides a simple way to attach hub-mount gears, wheels, or other components to a 1/8″ (3.18 mm) shaft. Machined from 6061-T6 aluminium with four equally spaced 6-32 tapped holes on the standard 0.77″ (19.6 mm) Actobotics hub pattern.

Specifications

• Bore: 1/8″ (3.18 mm)
• Hub Pattern: 0.77″ (19.6 mm), 4× 6-32 tapped holes
• Set Screw: 10-32 (3/32″ hex key)
• Material: 6061-T6 aluminium
• Part Number: 545540

Ideal For

• Mounting gears and wheels to shafts in Actobotics builds
• Robotics and electromechanical prototypes
• Custom drive assemblies

Package Contents

• 1× Set Screw Hub (1/8″ bore, 545540)

Resources

• 3D Model – SketchUp (.skp)
