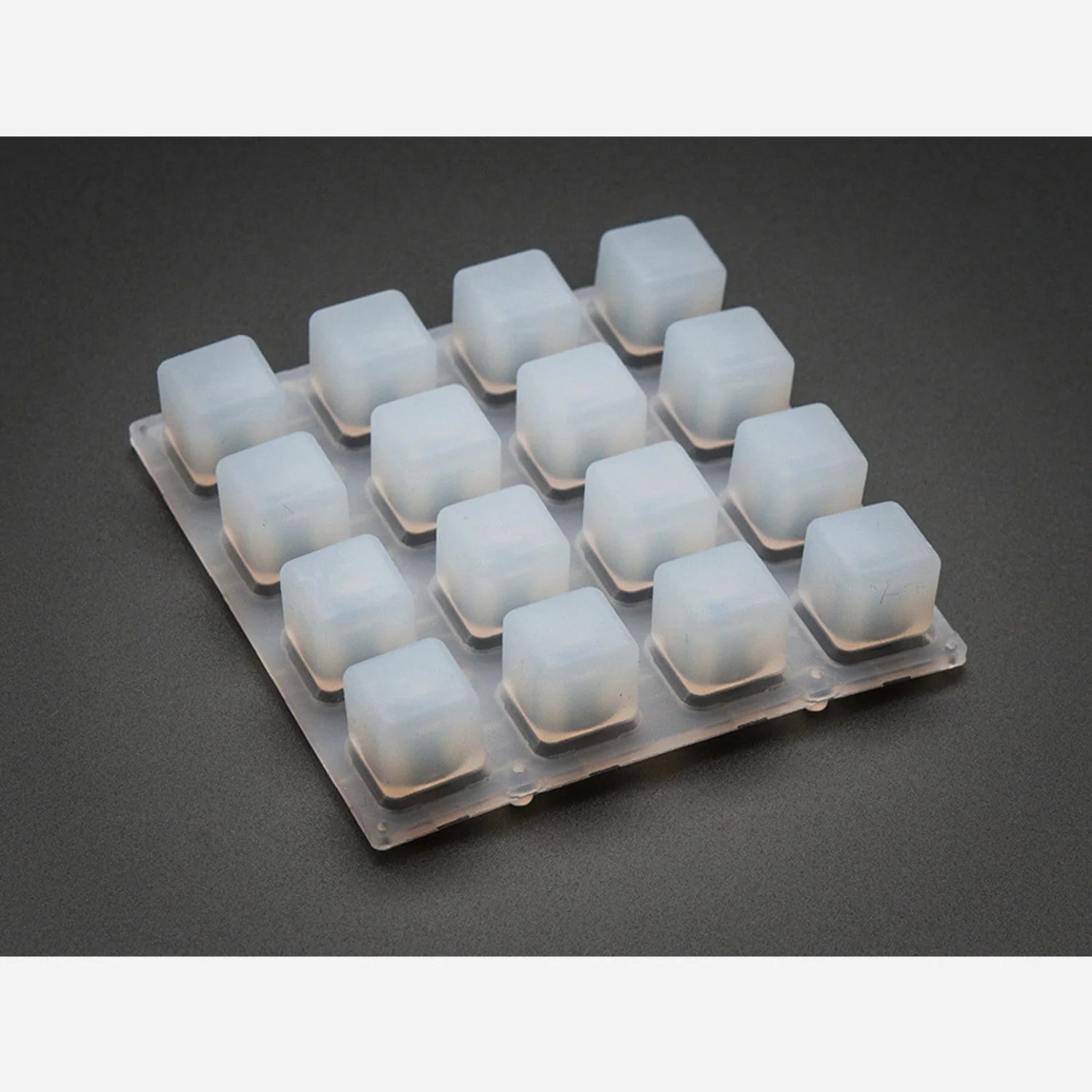

A soft, squishy 4×4 silicone elastomer keypad with 16 buttons, each designed to fit a 3mm LED for optional backlighting. The conductive pad on the bottom of each button closes a contact underneath when pressed, providing ~3mm of silent travel with a satisfying feel.

The keypads can be tiled edge-to-edge and will align correctly on a grid. The soft silicone can also be cut down to size for custom layouts. Designed to work with the Adafruit Trellis I2C driver board for easy 16-button + 16-LED control, or with your own custom PCB using the provided EagleCAD library.

Key Features

• 16 Buttons (4×4) – Soft silicone with conductive contact pads
• 3mm LED Compatible – Each button cavity fits a 3mm LED for backlighting
• Tileable – Edge-to-edge tiling with correct grid alignment
• Cuttable – Soft silicone can be trimmed for custom sizes
• Silent Operation – ~3mm travel, completely quiet
• Durable – Easy to clean with mild soap and water

Specifications

• Button Size – 10 × 10mm square, 10mm tall
• Grid Spacing – 5mm between buttons
• Travel – ~3mm
• LED Compatibility – 3mm LEDs (5mm will not fit)

Ideal For

• Custom button panels and macro pads
• Adafruit Trellis projects
• Backlit control interfaces
• Musical instruments and MIDI controllers

Resources

• EagleCAD Library, 3D CAD Files & Arduino Library (GitHub)
