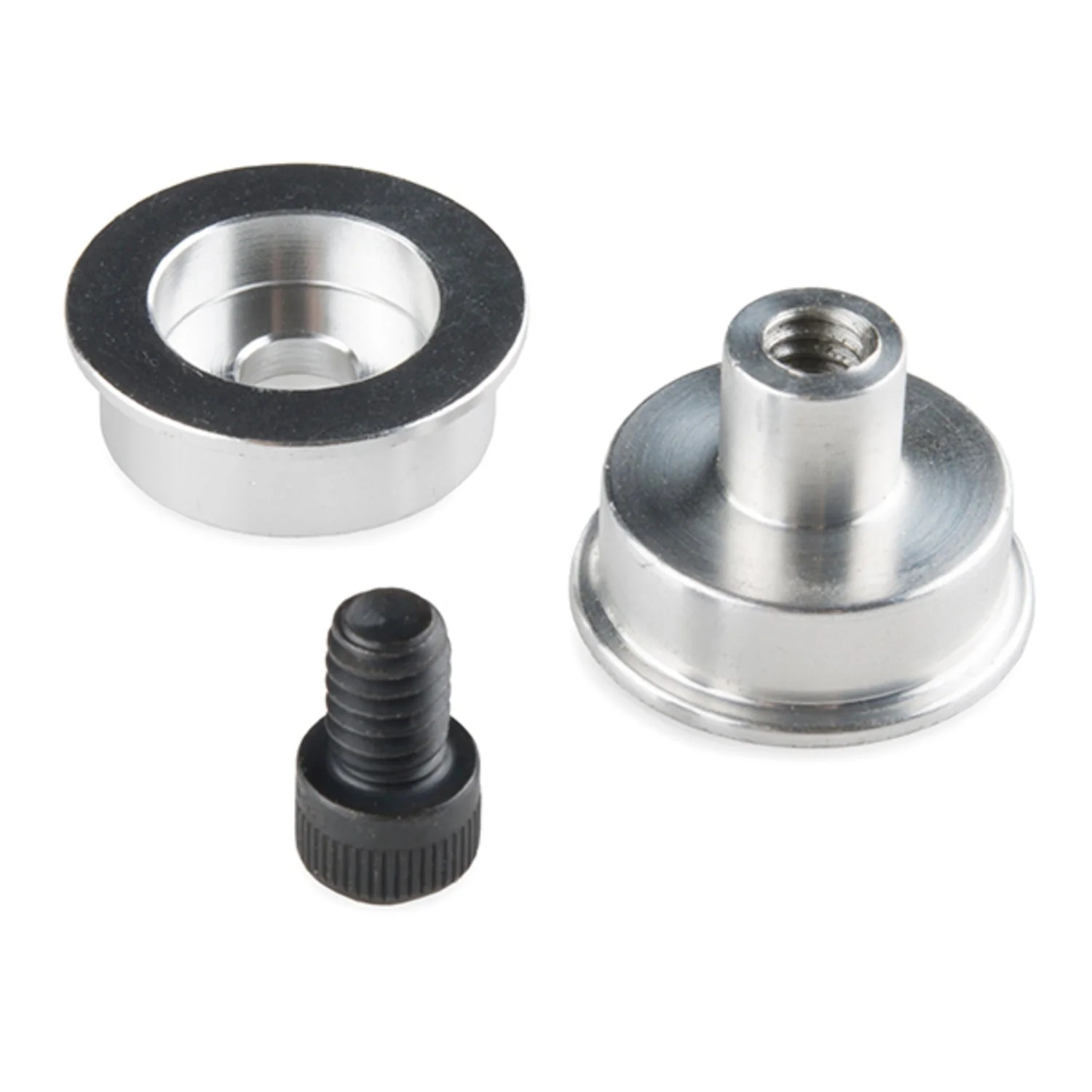

A shaft adapter for mounting 2.975″ or 4.90″ skate wheels onto ¼″ drive shafts. The adapter uses the standard 0.77″ Actobotics hub pattern, making it compatible with the Actobotics robotics building system.

Specifications

• Outer Diameter – 1″
• Width – 0.32″
• Hub Pattern – 0.77″
• Shaft Size – ¼″
• Compatible Wheels – 2.975″ and 4.90″ skate wheels

Ideal For

• Robotics drive systems using skate wheels
• Actobotics builds and mechanical prototyping
• Custom wheeled platforms

Package Contents

• 1× Skate Wheel Adapter (shaft connection)

Resources

• SketchUp Model – Part A
• SketchUp Model – Part B
