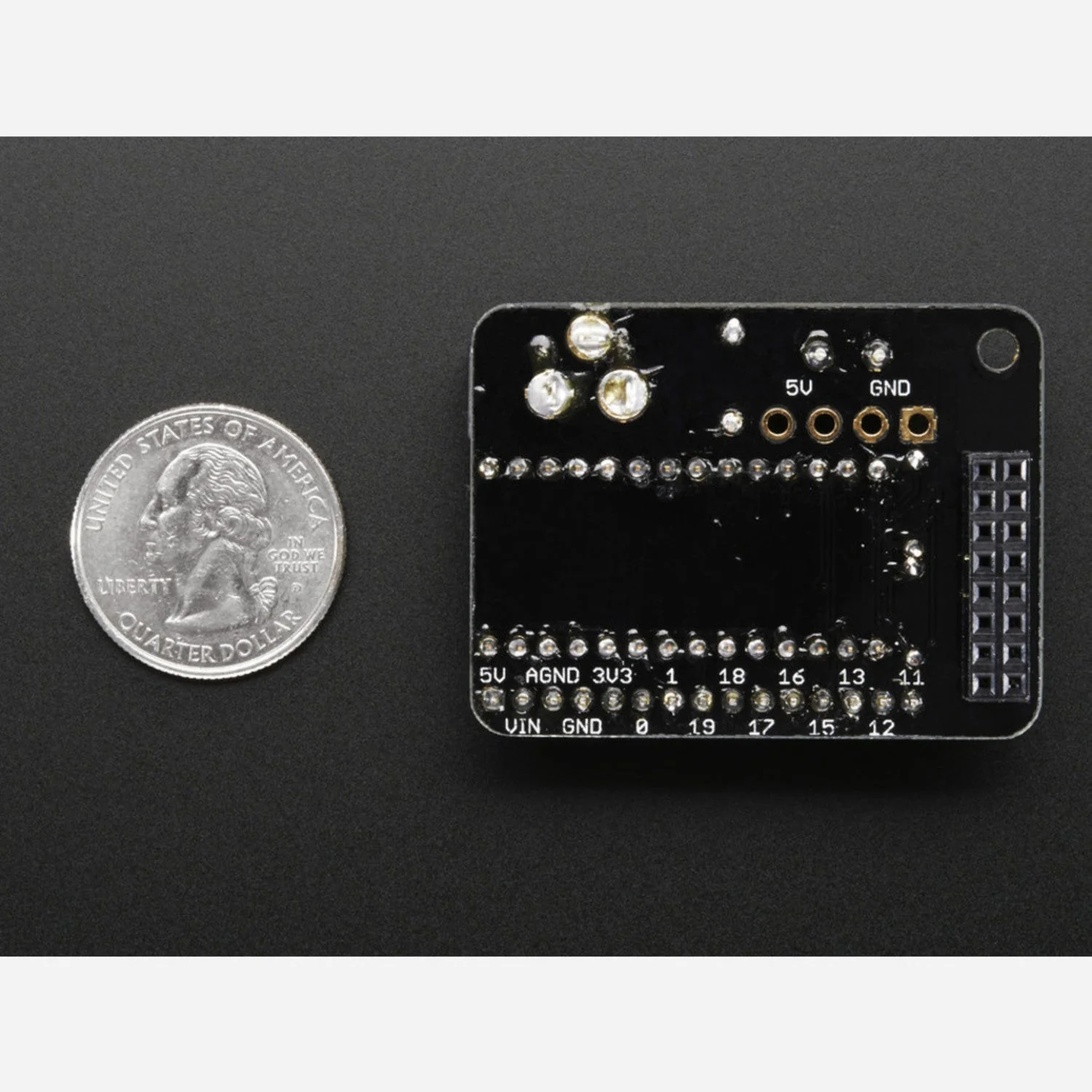

SmartMatrix SD Shield v3 - for Teensy 3.2

Product image 1
1 / 4

SmartMatrix SD Shield v3 - for Teensy 3.2

The SmartLED Shield (V4) provides a simple, solder-free way to connect a Teensy 3.2, Teensy 3.5, or Teensy 3.6 to HUB75 RGB LED Matrix Panels. Just plug in your Teensy, connect your panel, and start displaying graphics, patterns, or animated GIFs using the SmartMatrix Library.

The shield includes 5V level shifters for reliable panel compatibility, a HUB75 connector that accepts direct panel connection or ribbon cables, and expansion headers for prototyping with the remaining Teensy I/O pins.

Note: This shield is not compatible with the Teensy LC. The microSD card slot has been removed from this version, as Teensy 3.5/3.6 have built-in SD card slots.

Key Features

  • Fully Assembled – No soldering required (beyond adding pins to your Teensy)
  • HUB75 Connector – Connects directly to RGB LED matrix panels or via ribbon cable
  • 5V Level Shifters – Pre-soldered for reliable compatibility with 5V panels
  • DotStar/APA102 Support – Drive DotStar LEDs in parallel with the LED panel via 4-pin JST SM connector
  • Expansion Headers – Access remaining Teensy I/O pins for prototyping
  • Removable Teensy – Easily insert and remove your Teensy board

Ideal For

  • RGB LED matrix display projects
  • Animated GIF displays from microSD card
  • Interactive signage and art installations
  • Prototyping with Teensy and LED panels

Package Contents

  • 1× SmartLED Shield V4 (fully assembled)
  • 1× DotStar/APA102 connection cable

Resources

$11.71

Original: $39.02

-70%
SmartMatrix SD Shield v3 - for Teensy 3.2—

$39.02

$11.71

Product Information

Shipping & Returns

Description

The SmartLED Shield (V4) provides a simple, solder-free way to connect a Teensy 3.2, Teensy 3.5, or Teensy 3.6 to HUB75 RGB LED Matrix Panels. Just plug in your Teensy, connect your panel, and start displaying graphics, patterns, or animated GIFs using the SmartMatrix Library.

The shield includes 5V level shifters for reliable panel compatibility, a HUB75 connector that accepts direct panel connection or ribbon cables, and expansion headers for prototyping with the remaining Teensy I/O pins.

Note: This shield is not compatible with the Teensy LC. The microSD card slot has been removed from this version, as Teensy 3.5/3.6 have built-in SD card slots.

Key Features

  • Fully Assembled – No soldering required (beyond adding pins to your Teensy)
  • HUB75 Connector – Connects directly to RGB LED matrix panels or via ribbon cable
  • 5V Level Shifters – Pre-soldered for reliable compatibility with 5V panels
  • DotStar/APA102 Support – Drive DotStar LEDs in parallel with the LED panel via 4-pin JST SM connector
  • Expansion Headers – Access remaining Teensy I/O pins for prototyping
  • Removable Teensy – Easily insert and remove your Teensy board

Ideal For

  • RGB LED matrix display projects
  • Animated GIF displays from microSD card
  • Interactive signage and art installations
  • Prototyping with Teensy and LED panels

Package Contents

  • 1× SmartLED Shield V4 (fully assembled)
  • 1× DotStar/APA102 connection cable

Resources
