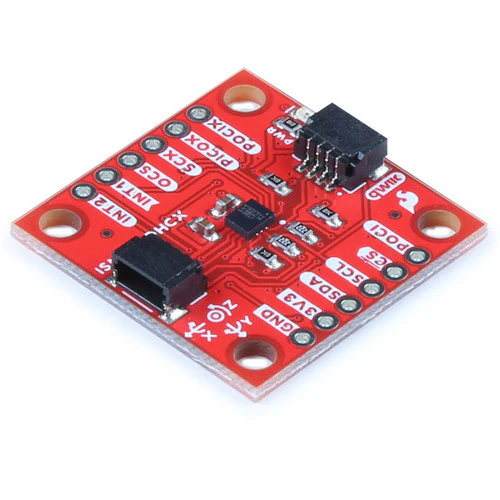

A Qwiic-compatible breakout board for the STMicroelectronics ISM330DHCX — a high-performance 3D accelerometer and 3D gyroscope designed for industrial applications. The 1" × 1" board communicates over I2C via the Qwiic connector system, with 0.1"-spaced pins also broken out for soldered connections.

With a full-scale acceleration range of ±2/±4/±8/±16 g and gyroscope range up to ±4000 dps, this IMU is suited for stabilisation, robotics, navigation, and vibration monitoring. It includes advanced embedded features such as a Machine Learning Core, programmable Finite State Machine, 9 KB FIFO, and a sensor hub for connecting external sensors.

Key Features

• ISM330DHCX 6DoF IMU – High-performance 3D accelerometer + 3D gyroscope
• Selectable Accelerometer Range – ±2/±4/±8/±16 g
• Extended Gyroscope Range – ±125/±250/±500/±1000/±2000/±4000 dps
• Machine Learning Core – On-chip pattern recognition and classification
• Programmable FSM – Process data from accelerometer, gyroscope, and external sensors
• 9 KB Smart FIFO – Buffered data output for efficient processing
• Sensor Hub – Collect data from additional external sensors
• Qwiic / I2C Interface – Two Qwiic ports plus 0.1" header breakout
• Smart Embedded Functions – Tilt detection, free-fall, wake-up, 6D/4D orientation, click/double-click, pedometer

Specifications

• Sensor – STMicroelectronics ISM330DHCX
• Supply Voltage – 1.71–3.6V
• Interface – I2C (Qwiic), auxiliary SPI for OIS applications
• I2C Address – 0x6B (default), 0x6A (alternate)
• Operating Temperature – -40 to +105°C
• Board Size – 1" × 1" (25.4 × 25.4 mm)
• Embedded Temperature Sensor – Yes

Ideal For

• Robotics and industrial automation
• Optical image and lens stabilisation
• Navigation and inertial measurement systems
• Vibration monitoring and compensation
• Platform stabilisation

Package Contents

• 1× SparkFun 6DoF IMU Breakout – ISM330DHCX (Qwiic)

Resources

• Hookup Guide
• ISM330DHCX Datasheet (PDF)
• Schematic (PDF)
• Arduino Library (GitHub)
• Hardware Repository (GitHub)
