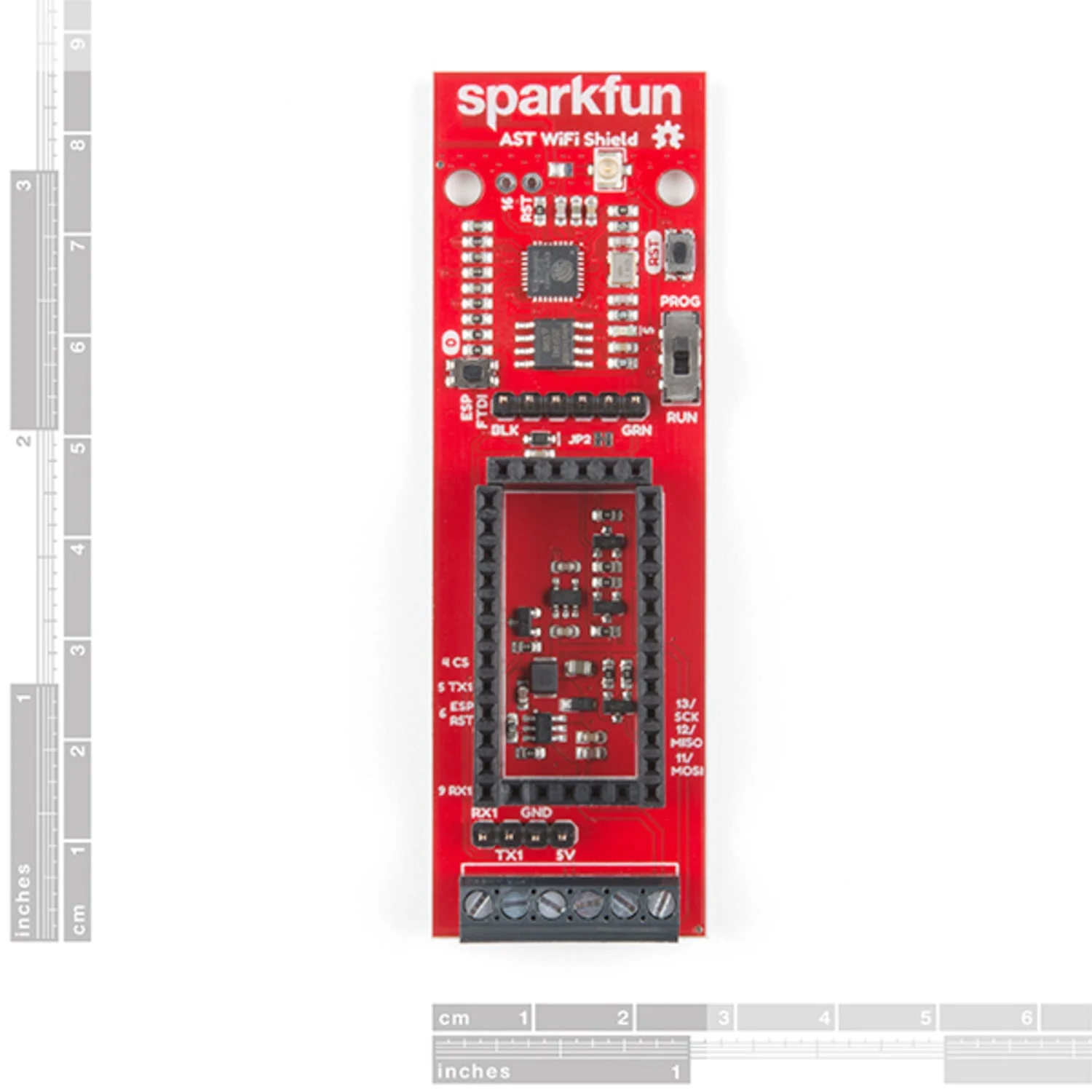

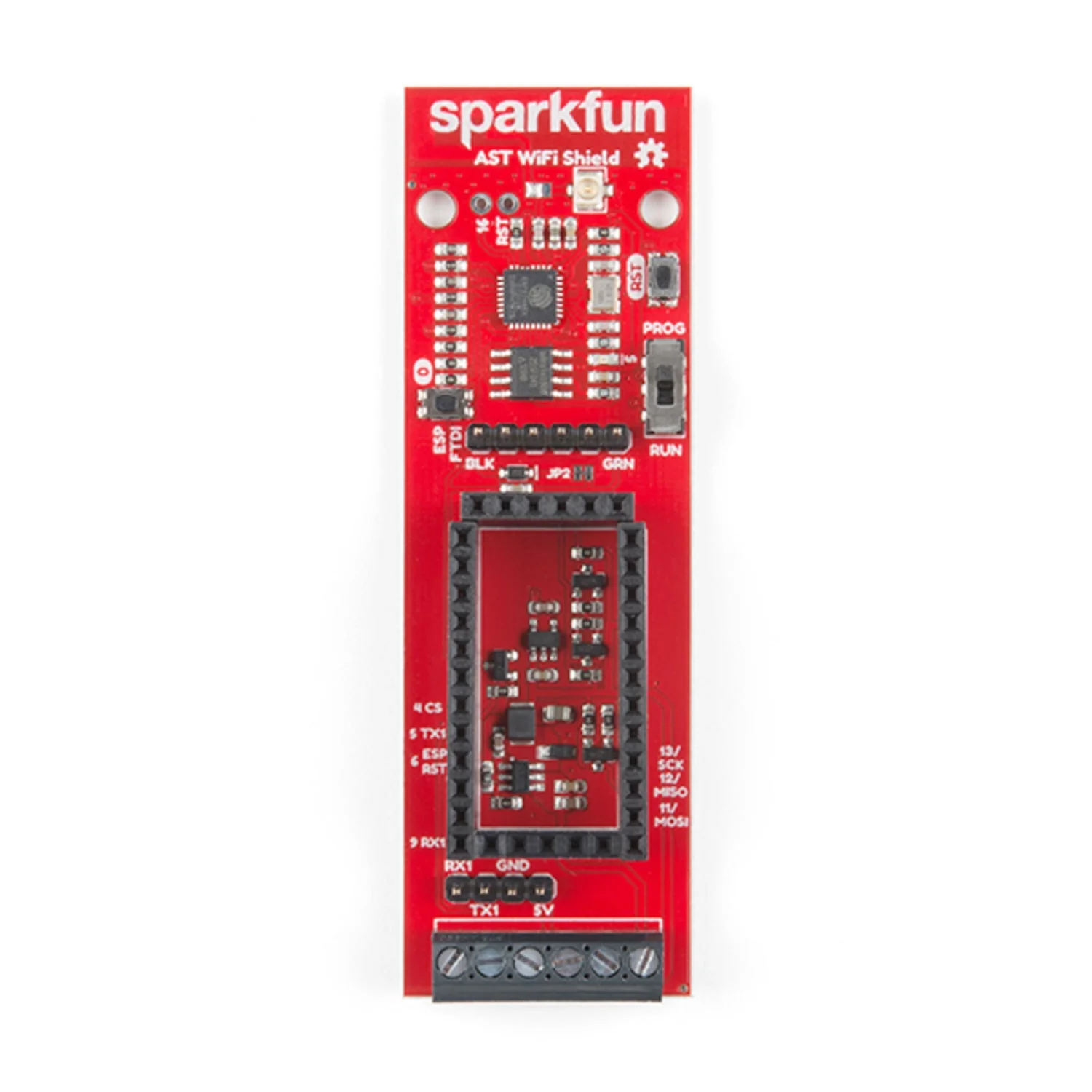

The SparkFun AST-CAN485 Wi-Fi Shield adds wireless communication to the AST-CAN485 Dev Board, enabling cable-free operation in industrial automation environments. It uses the Espressif ESP8266 for Wi-Fi connectivity and includes both a PCB trace antenna and a U.FL connector for external antennas when greater range is needed.

The shield features screw terminal connectors for RS-485 communication and an FTDI header for programming and working with the ESP8266 directly. Designed for use in noisy industrial environments, it provides a compact wireless solution for CAN and RS-485 applications.

Key Features

• ESP8266 Wi-Fi – Wireless communication for IoT and automation
• Dual Antenna Options – PCB trace antenna plus U.FL connector for external antenna
• RS-485 Screw Terminals – Secure industrial connections
• FTDI Header – For ESP8266 programming and debugging
• Pro Mini Form Factor – Compact design for space-constrained builds

Package Contents

• 1× SparkFun AST-CAN485 Wi-Fi Shield

Resources

• SparkFun AST-CAN485 Wi-Fi Shield Hookup Guide
