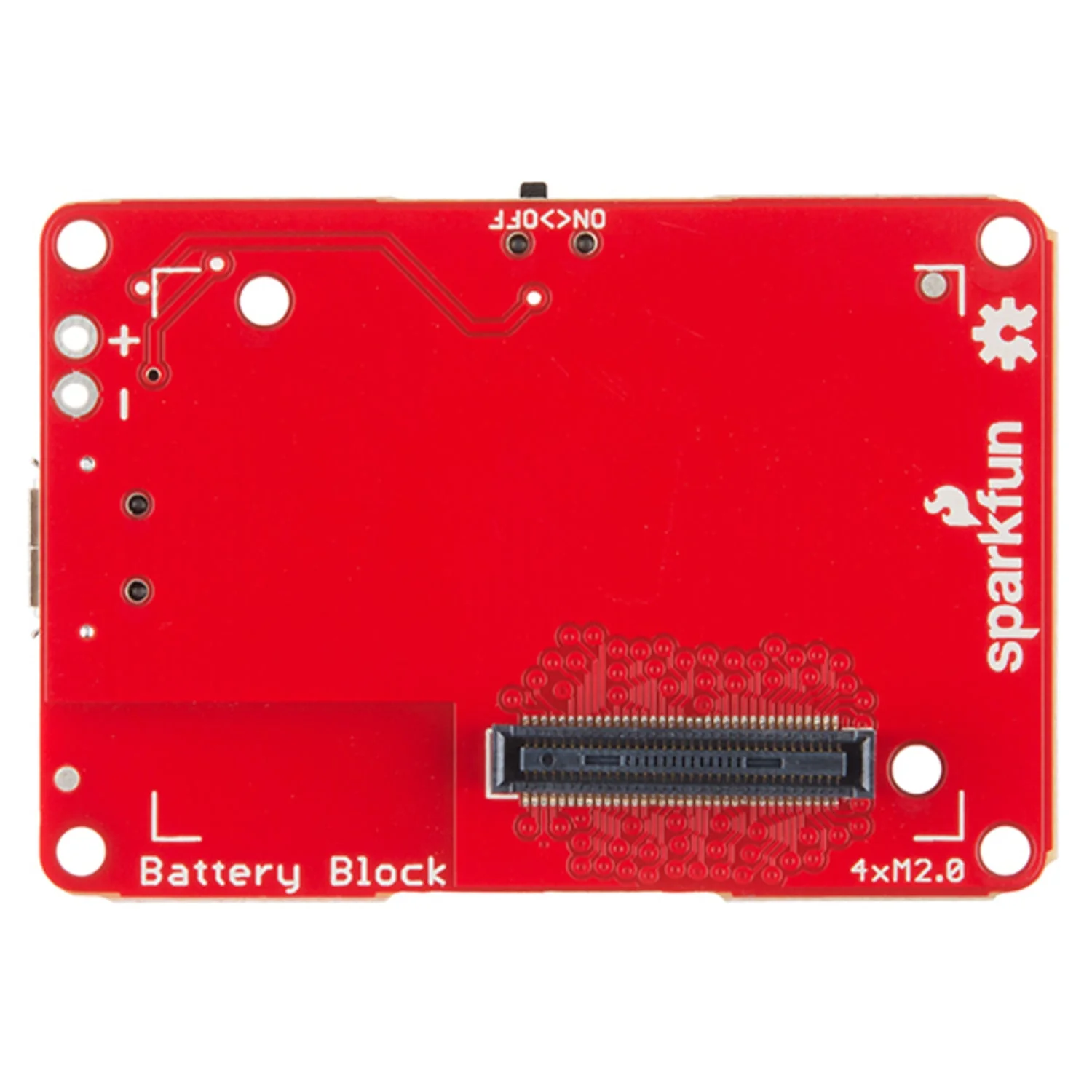

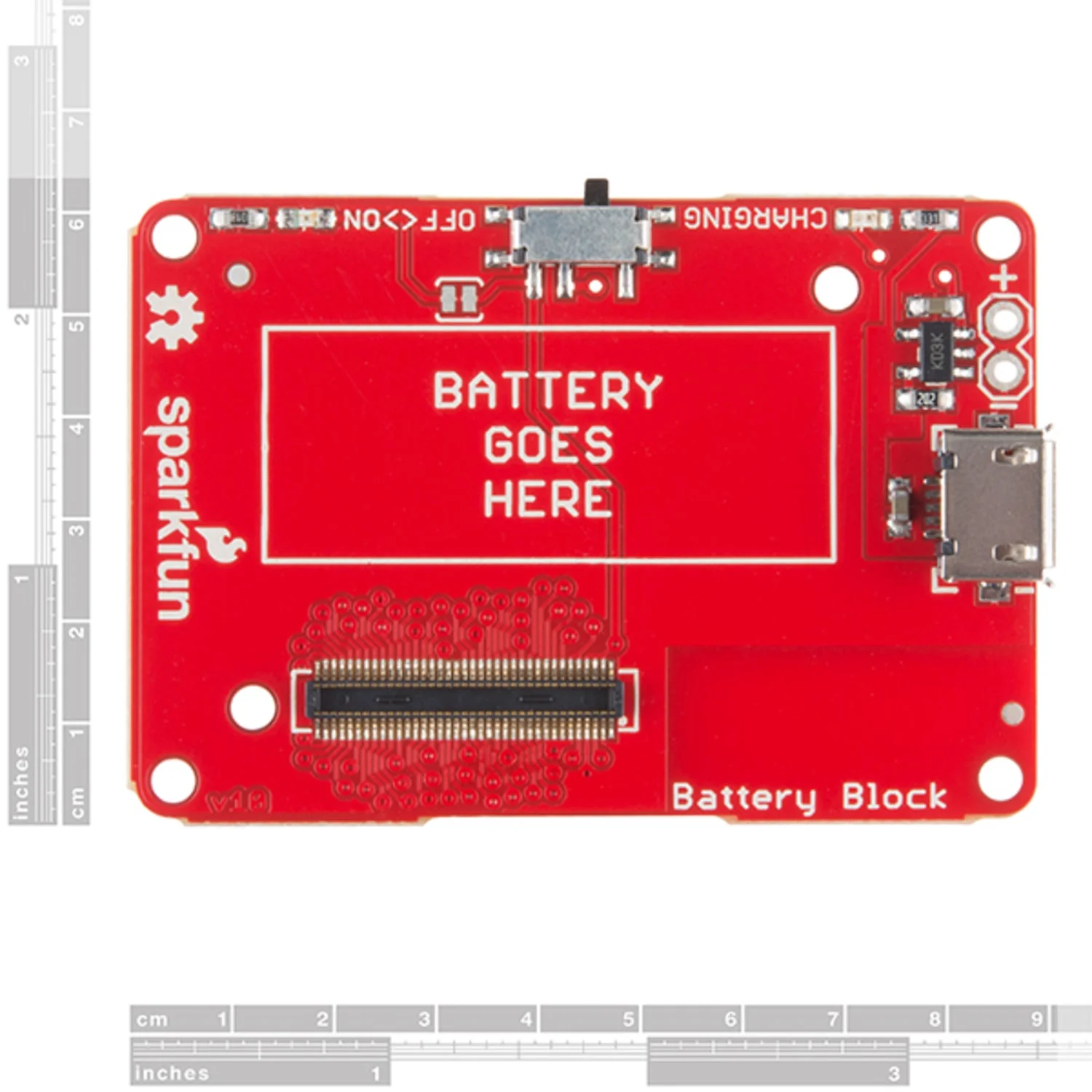

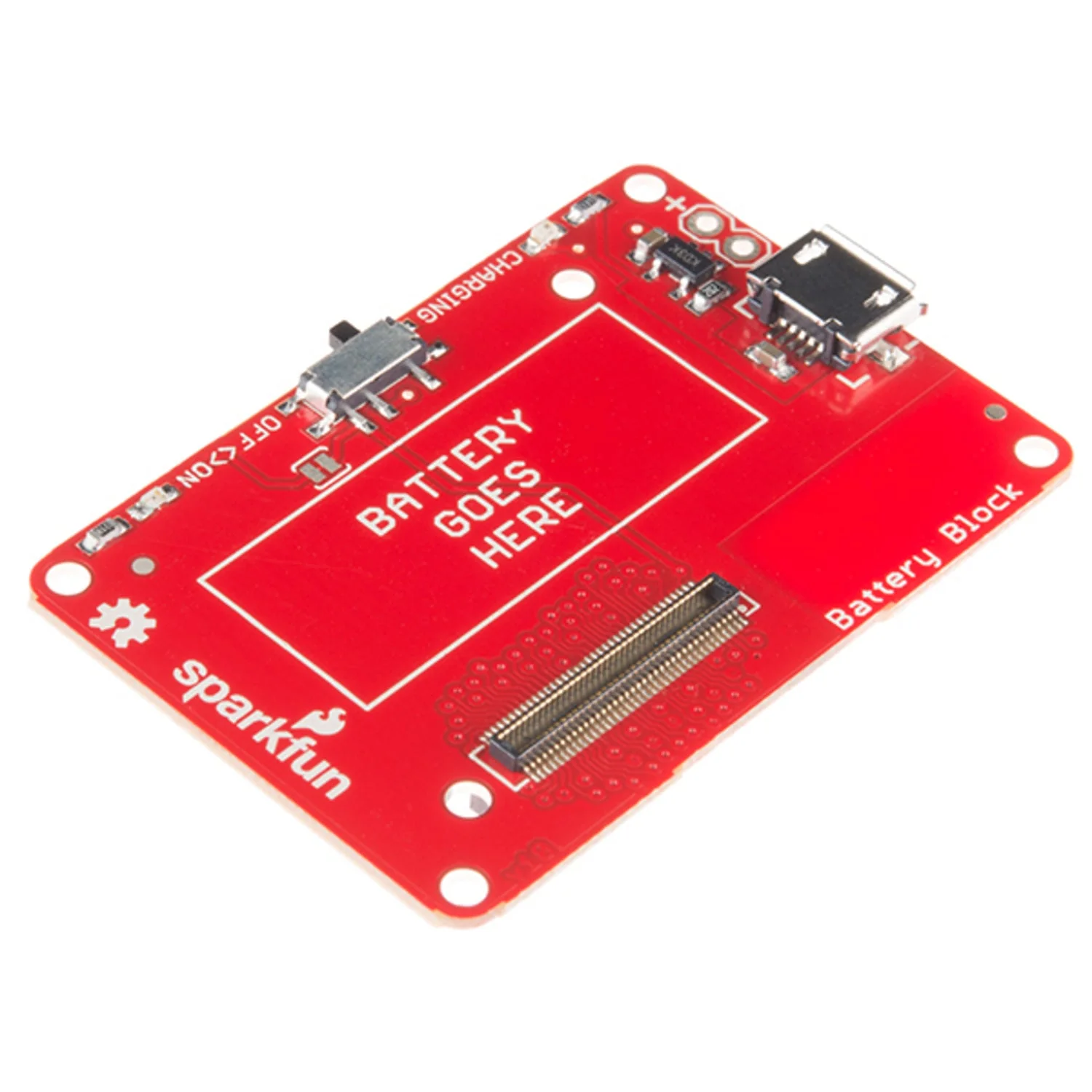

The SparkFun Power Block provides a convenient way to power your Intel Edison stack using your own 3.7V lithium battery. It features a micro-USB connector that delivers up to 500 mA charge current, letting you charge a connected battery while running your Edison.

Identical to the Battery Block in design but without a built-in battery, the Power Block is designed for use with an external 3.7V battery of your choice. It stacks with other SparkFun Edison Blocks via the 70-pin Hirose connector.

Key Features

• External Battery Support – Add your own 3.7V lithium battery for portable power
• Micro-USB Charging – 500 mA charge current via micro-USB connector
• Stackable Design – Connects to other SparkFun Edison Blocks via 70-pin Hirose connector
• Compact Form Factor – Matches the Edison Block standard footprint

Ideal For

• Portable Intel Edison projects
• Battery-powered IoT devices
• Custom Edison Block stacks

Package Contents

• 1× SparkFun Power Block for Intel Edison

Resources

• Power Block Hookup Guide
• Schematic (PDF)
• Intel Edison Tutorials
• GitHub – Design Files
