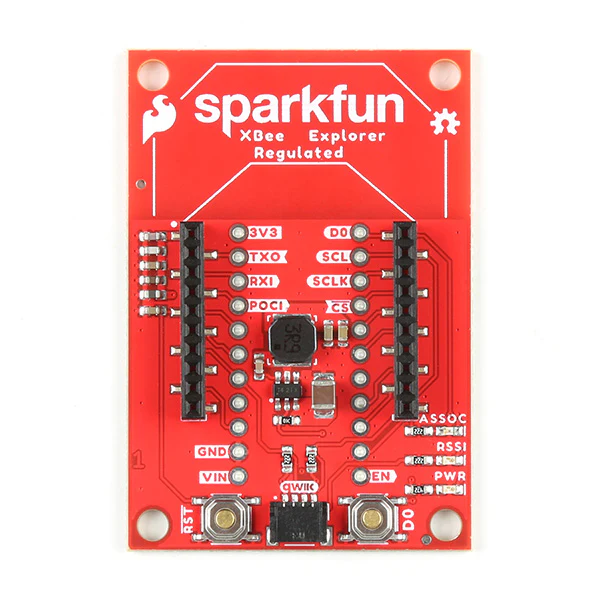

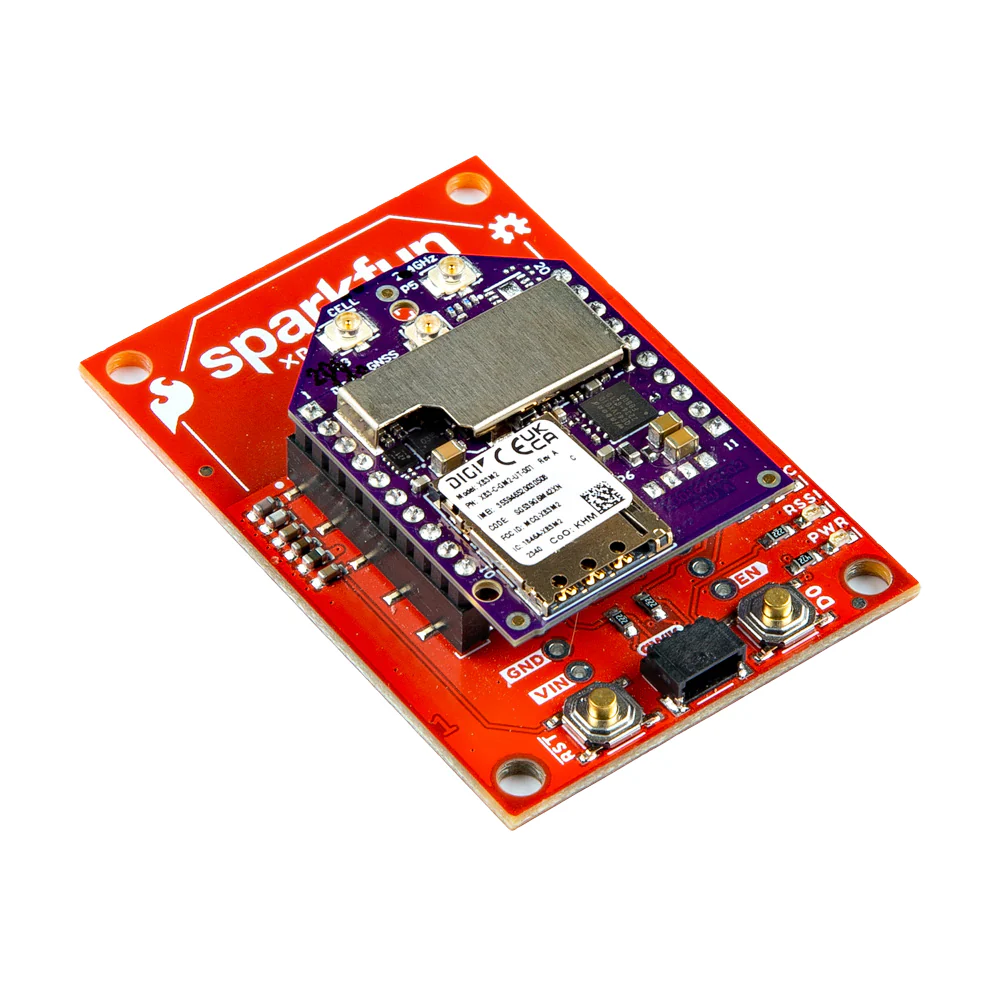

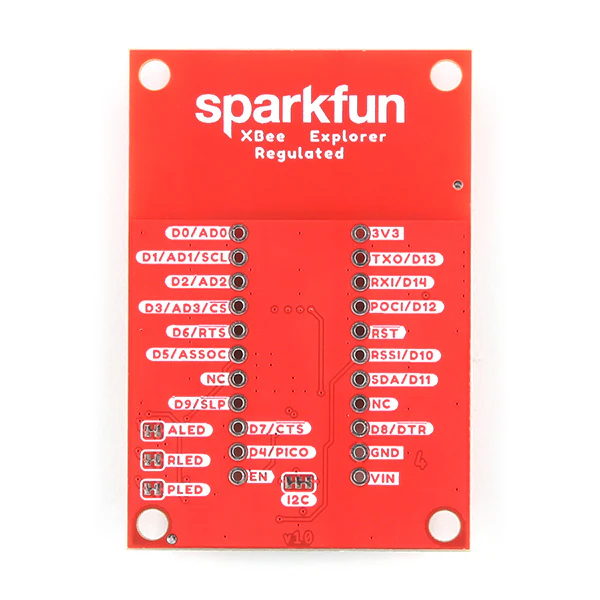

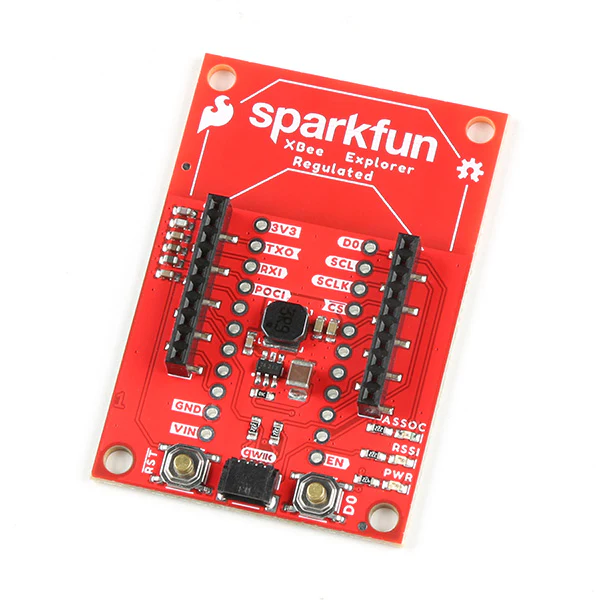

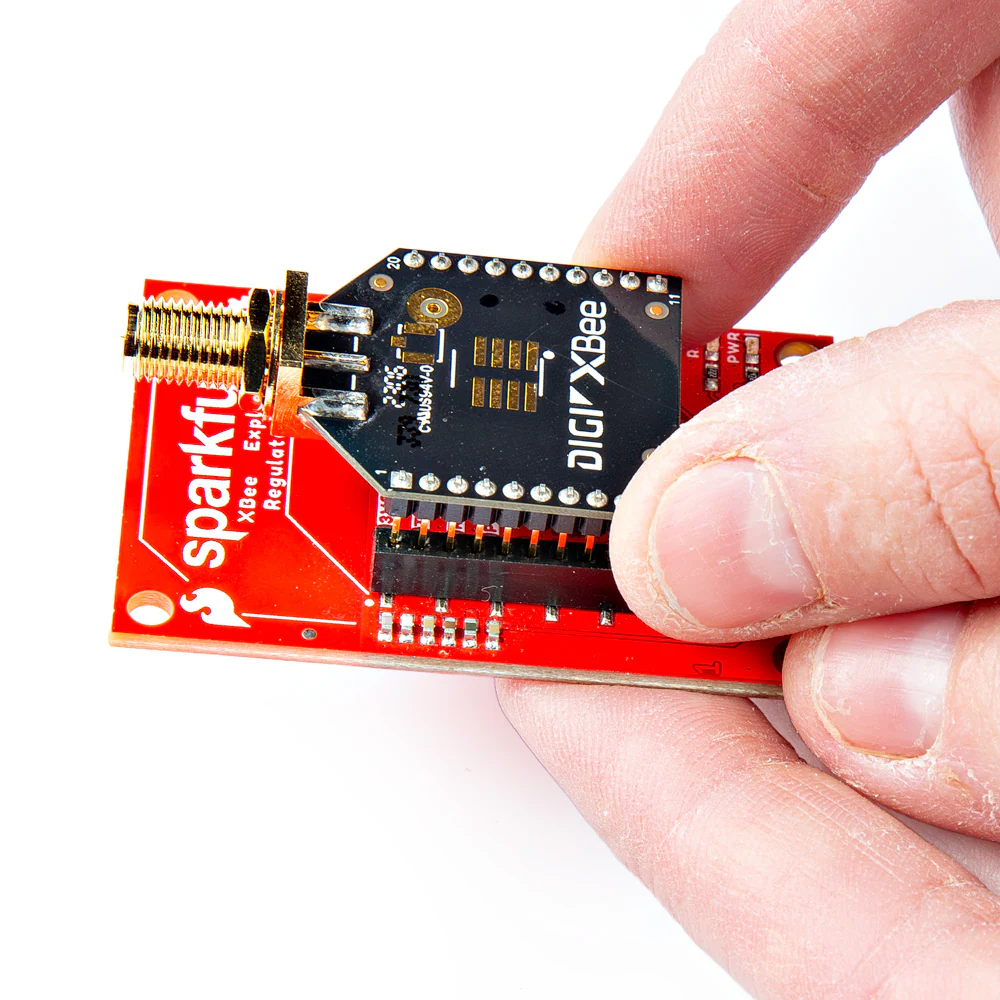

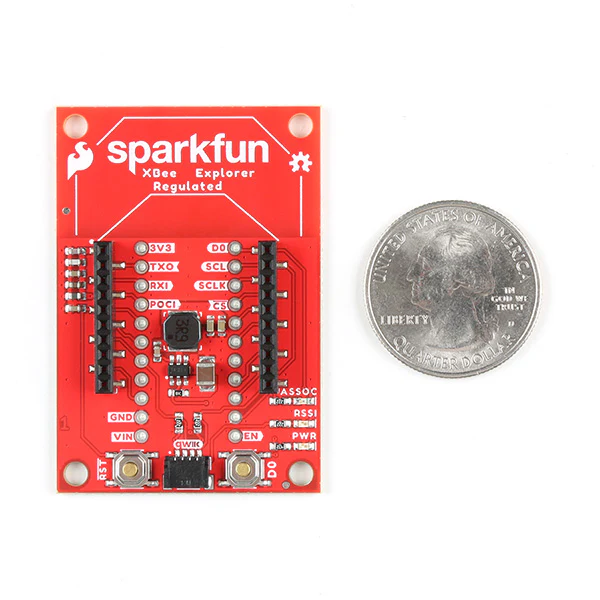

The SparkFun Digi XBee Explorer Regulated is a breakout board for Digi's XBee 3 micro form factor modules. It provides regulated power (up to 6V input), a Qwiic connector for I2C sensors, and reset/D0 buttons — everything you need to get an XBee module up and running without a USB connection.

Compatible with the latest XBee 3 modules including LTE-M/NB-IoT and XBee RR Pro. Configure via AT commands, MicroPython, or Digi XCTU software. Built-in Digi TrustFence security protects against cyber threats.

Key Features

• XBee 3 Micro Socket – On-board socket for Digi XBee 3 micro form factor modules
• Regulated Power – AP63203 buck converter (up to 2A) accepts up to 6V supply
• Qwiic Connector – Plug in I2C sensors and peripherals without soldering
• Reset and D0 Buttons – Convenient on-board controls
• 3× Status LEDs – Visual indicators for module activity
• AT Command Configuration – Standard XBee API frames and AT commands
• TrustFence Security – Built-in identity and data privacy protection

Specifications

• Voltage Regulator – AP63203 buck converter, up to 2A output
• Input Voltage – Up to 6V
• I2C Connector – 1× Qwiic (JST SH, 1 mm pitch)
• Programming – AT commands, MicroPython, Digi XCTU

Ideal For

• Low-power cellular IoT projects (LTE-M/NB-IoT)
• Wireless sensor networks
• Remote monitoring and telemetry
• Prototyping with XBee 3 modules

Resources

• Hookup Guide
• Schematic (PDF)
• GitHub Hardware Repo
