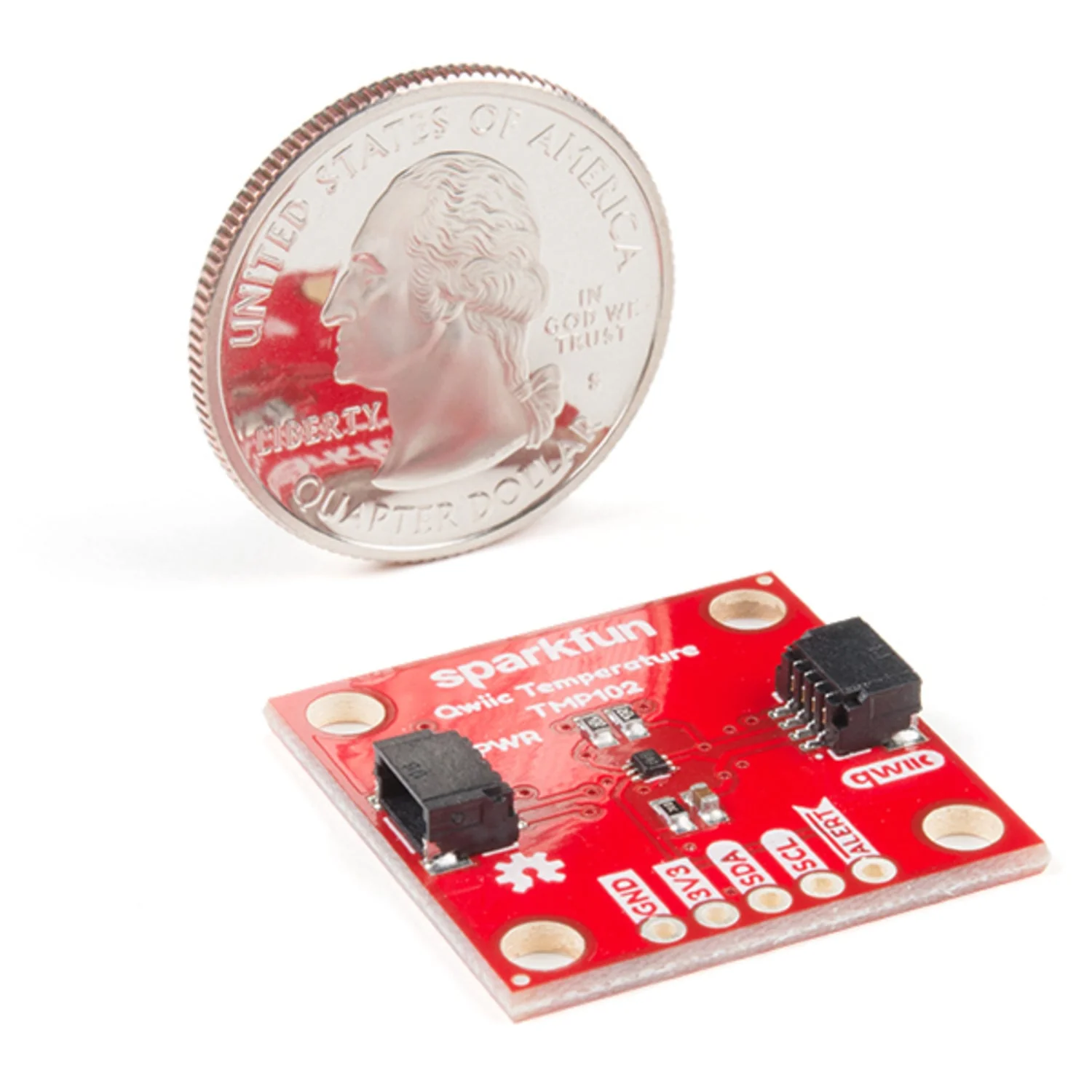

The SparkFun TMP102 Qwiic breakout provides accurate digital temperature readings over I2C with minimal wiring. Based on the Texas Instruments TMP102, the sensor delivers 0.0625 °C resolution and ±0.5 °C accuracy, communicating entirely over the I2C bus — no analogue conversion needed.

This version features two Qwiic connectors for plug-and-play I2C daisy-chaining, an address jumper for multi-sensor setups, and standard 0.1" header breakouts for breadboard use. Built-in 4.7 kΩ pull-up resistors and open-drain I2C signalling mean no level shifting is required.

Key Features

• 0.0625 °C Resolution – High-precision temperature readings
• ±0.5 °C Accuracy – Reliable across the measurement range
• I2C Interface – Digital output with configurable address
• 2× Qwiic Connectors – Quick I2C connection, no soldering required
• Address Jumper – For running multiple TMP102 sensors on one bus
• Built-In Pull-Ups – 4.7 kΩ I2C pull-up resistors onboard
• 0.1" Header Breakout – Also compatible with standard breadboards

Specifications

• Sensor: Texas Instruments TMP102
• Resolution: 0.0625 °C
• Accuracy: ±0.5 °C
• Operating Voltage: 1.4–3.6 V
• Interface: I2C (Qwiic / 0.1" headers)

Package Contents

• 1× SparkFun TMP102 Qwiic Digital Temperature Sensor Breakout

Resources

• TMP102 Qwiic Hookup Guide
