The SparkFun Flexible Grayscale OLED Breakout features a 1.81-inch display that can be bent to a radius as tight as 40mm without damage. At less than 0.5mm thick, it delivers impressive 4-bit grayscale graphics — BMP images, text, or even games — with excellent contrast on a 160×32 pixel display.

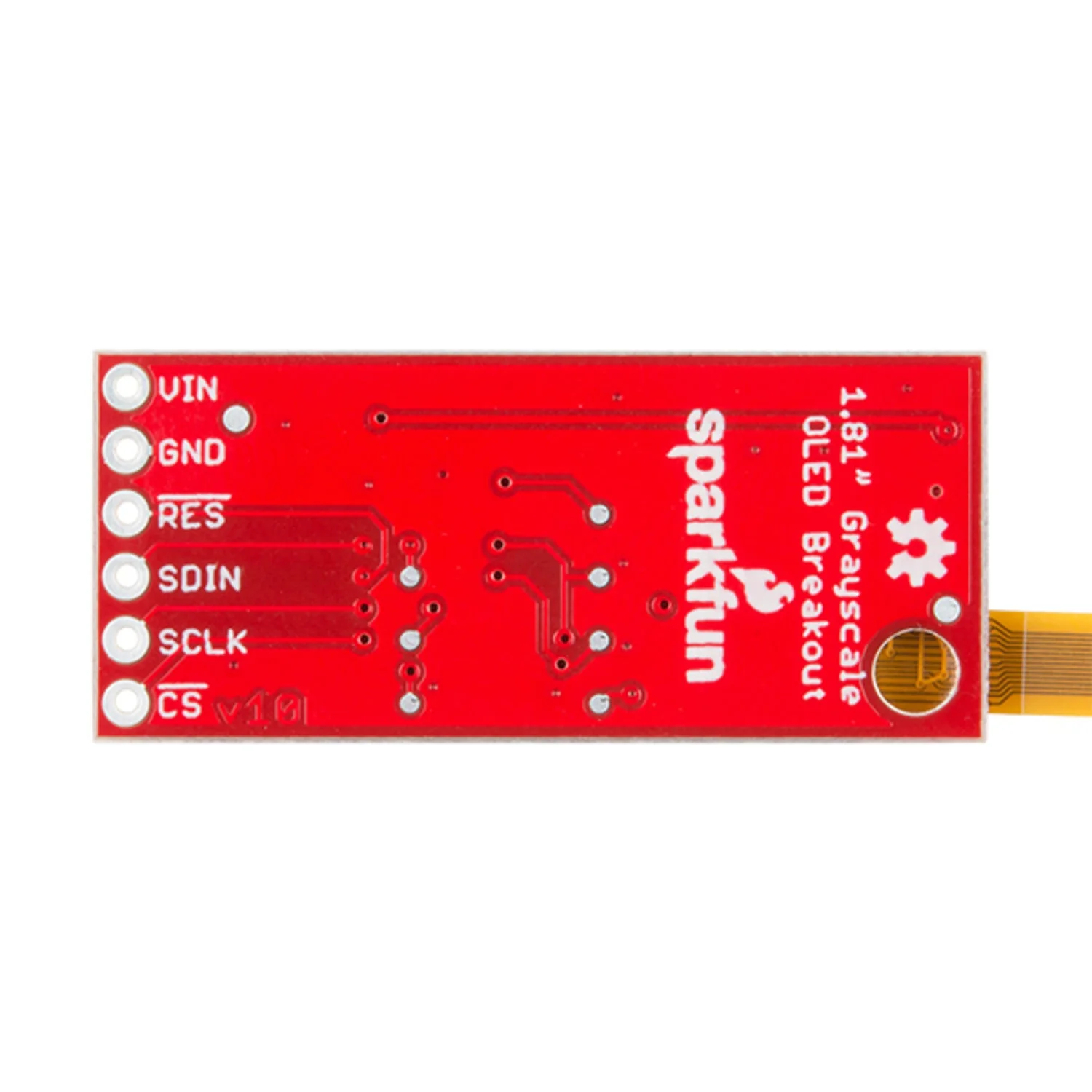

The breakout communicates via 3-wire SPI and includes an on-board buffer that supports both 3.3V and 5V logic without additional level conversion. Connect via solder headers or direct wiring.

Key Features

• Display – 1.81-inch flexible OLED, 160×32 pixels
• Colour Depth – 4-bit grayscale (16 shades)
• Flexibility – Bendable to 40mm radius
• Thickness – Less than 0.5mm (display panel)
• Interface – 3-wire SPI
• Logic Level – 3.3V and 5V compatible (on-board buffer)
• RAM Requirement – 2,560 bytes for full frame buffer

Ideal For

• Wearable electronics and curved enclosures
• Compact display for microcontroller projects
• Grayscale image and text display applications

Package Contents

• 1× SparkFun Flexible Grayscale OLED Breakout (1.81")

Resources

• Hookup Guide
