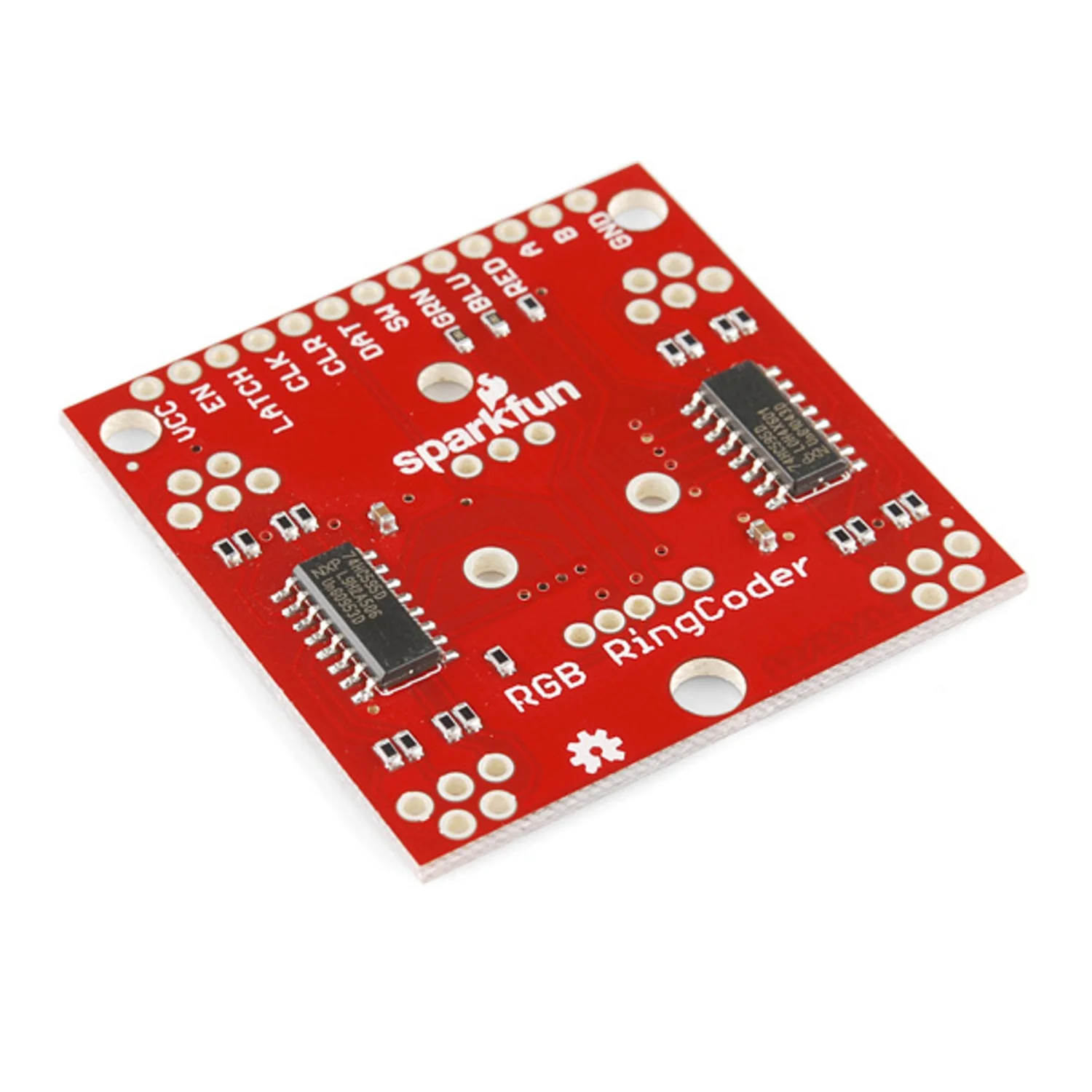

The SparkFun LED RingCoder Breakout provides a visual position indicator for rotary encoders. Two 8-bit shift registers drive a circular LED bargraph that displays the virtual position of the encoder as it turns, giving clear feedback on where you are within a range of values.

This RGB revision supports RGB illuminated rotary encoders and operates safely at 5 V. All shift register inputs and rotary encoder lines are broken out to standard 0.1" (2.54 mm) headers.

Key Features

• Circular LED Bargraph Control – Visual position feedback for rotary encoders
• 2× 8-Bit Shift Registers – Drive the LED ring from minimal I/O pins
• RGB Support – Compatible with RGB illuminated rotary encoders
• 5 V Safe – Operates reliably at 5 V logic levels
• Standard 0.1" Headers – All control lines broken out for easy wiring

Package Contents

• 1× SparkFun LED RingCoder Breakout board (RGB)
