SparkFun Lumenati 8-stick

Product image 1
1 / 4

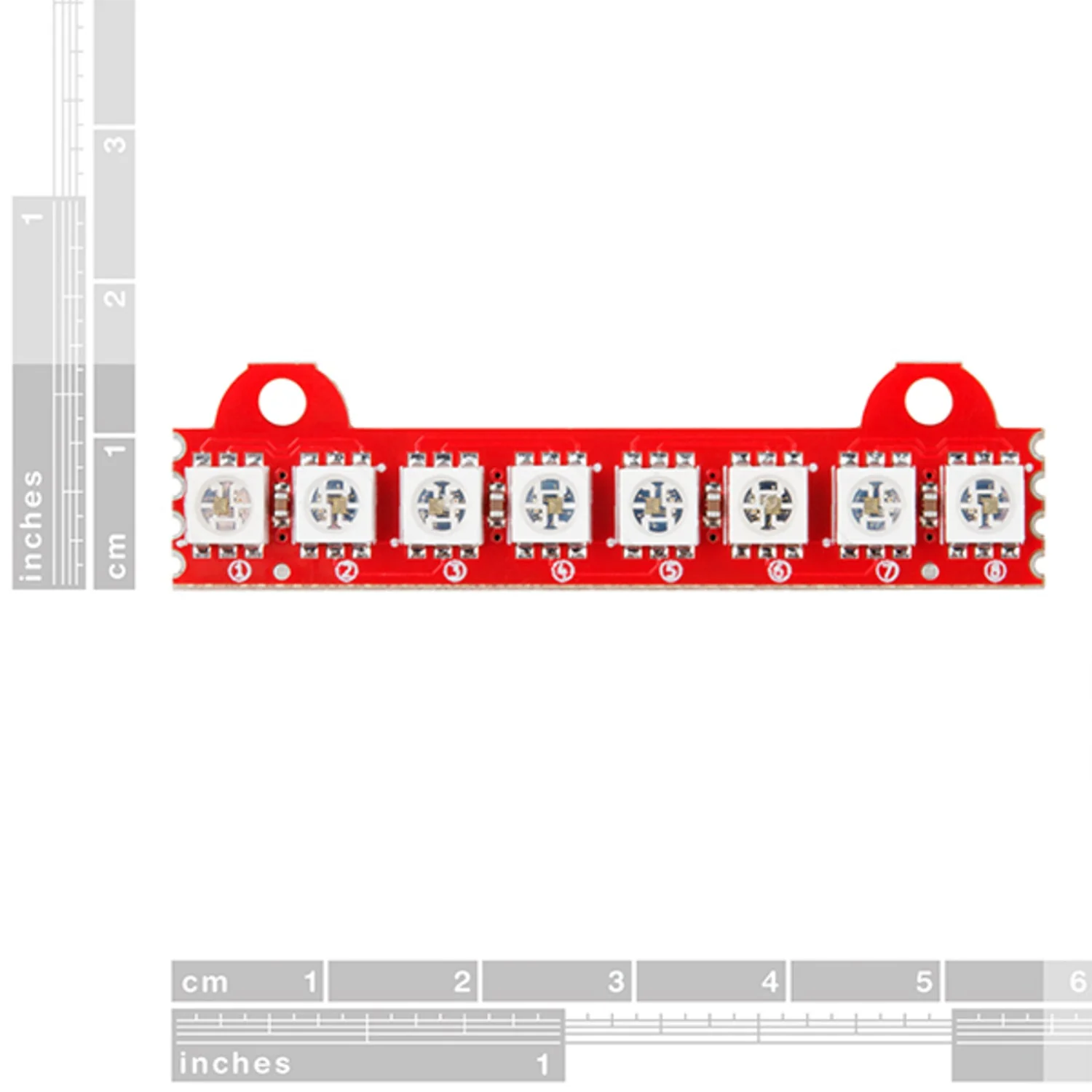

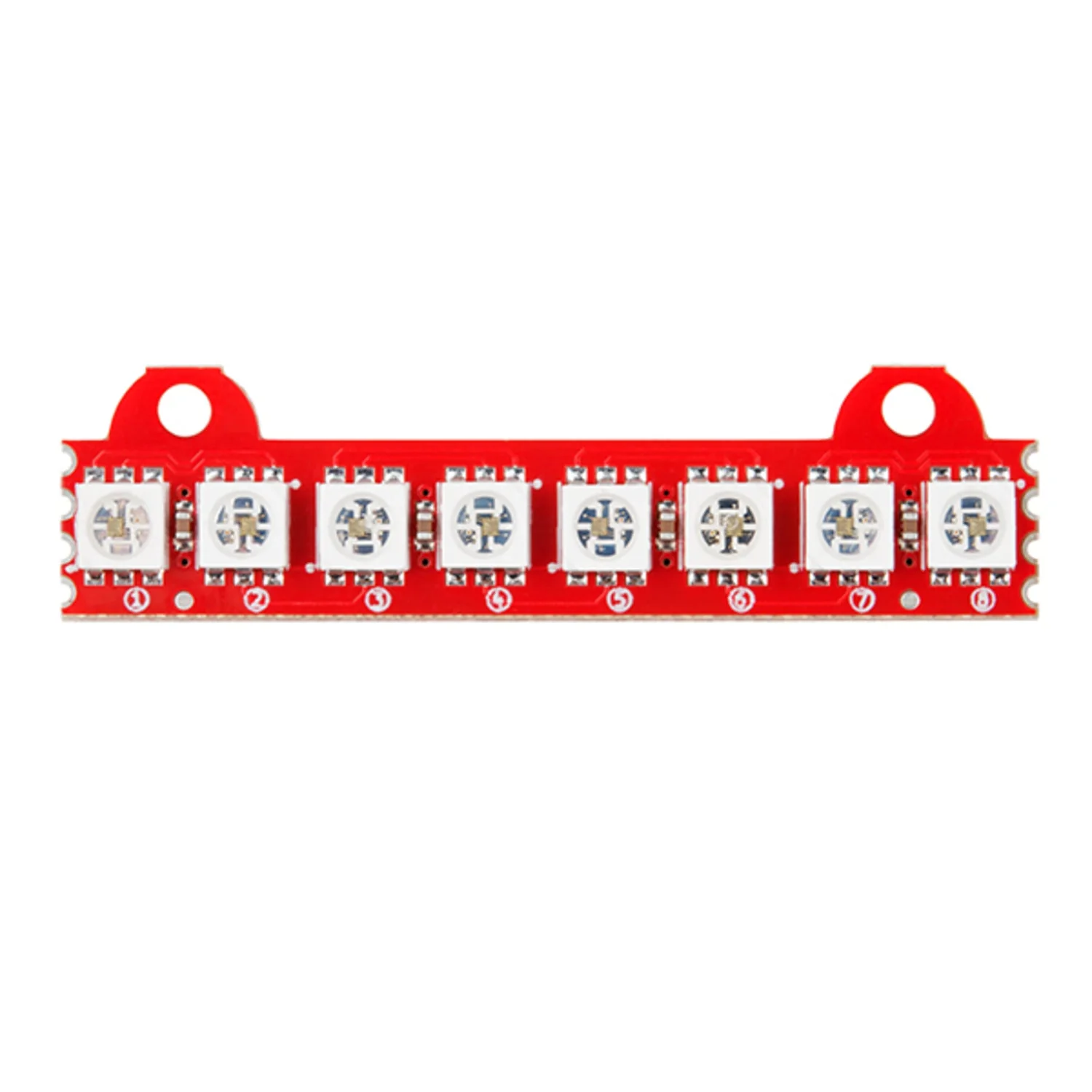

SparkFun Lumenati 8-stick

The SparkFun Lumenati 8-stick is a compact LED board featuring eight APA102C addressable LEDs in a row. Designed for daisy-chaining with other Lumenati boards via castellated edge connectors, it makes it easy to create custom lighting layouts, outlines, and shapes for your projects.

Unlike WS2812B LEDs, the APA102C uses a 2-wire protocol (clock + data), making communication timing-independent. This means you can drive these LEDs directly from a Raspberry Pi or other single-board computer without additional hardware. Each LED is numbered on the board to simplify coding.

Key Features

  • 8× APA102C Addressable LEDs – Full RGB colour control per LED
  • Castellated Edge Connectors – Daisy-chain with other Lumenati boards (90R, 90L)
  • 2-Wire SPI Protocol – Clock + data lines, timing-independent communication
  • 5V Operation – 5V power input with 0–5V logic levels
  • Numbered LEDs – Position labels for easier coding
  • Two Mounting Positions – Secure installation options

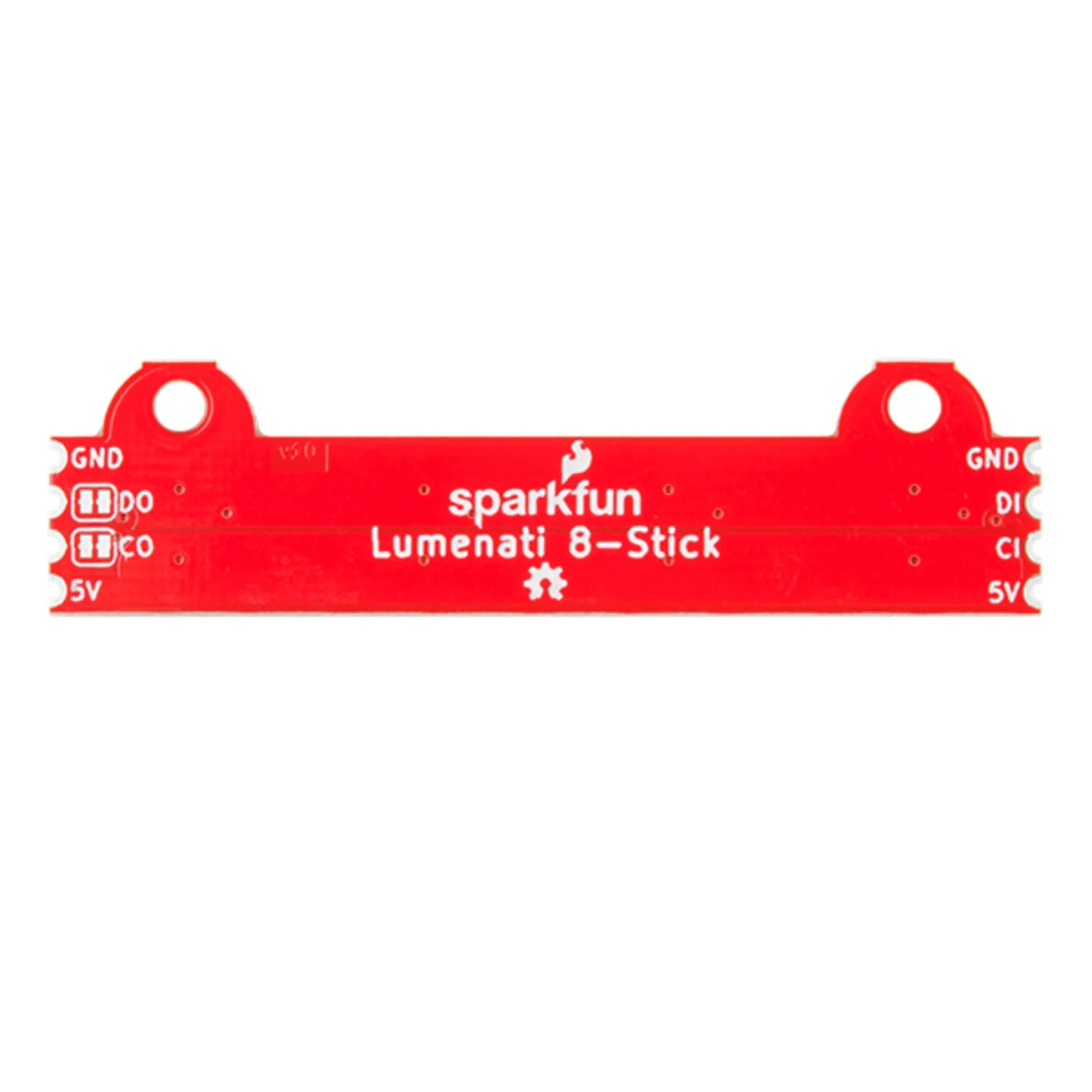

  • Solder Jumpers – CO and DO jumpers for closed-loop designs

Ideal For

  • Custom lighting designs and LED outlines
  • Racing drone accent lighting
  • Wearable and costume lighting
  • Raspberry Pi and single-board computer LED projects
Warning: If creating a closed-loop design, you must cut the CO and DO solder jumpers on the last board in the loop before powering up. Failing to do so will likely burn out LEDs.

Package Contents

  • 1× SparkFun Lumenati 8-stick

Resources

$5.73

Original: $19.11

-70%
SparkFun Lumenati 8-stick—

$19.11

$5.73

Product Information

Shipping & Returns

Description

The SparkFun Lumenati 8-stick is a compact LED board featuring eight APA102C addressable LEDs in a row. Designed for daisy-chaining with other Lumenati boards via castellated edge connectors, it makes it easy to create custom lighting layouts, outlines, and shapes for your projects.

Unlike WS2812B LEDs, the APA102C uses a 2-wire protocol (clock + data), making communication timing-independent. This means you can drive these LEDs directly from a Raspberry Pi or other single-board computer without additional hardware. Each LED is numbered on the board to simplify coding.

Key Features

  • 8× APA102C Addressable LEDs – Full RGB colour control per LED
  • Castellated Edge Connectors – Daisy-chain with other Lumenati boards (90R, 90L)
  • 2-Wire SPI Protocol – Clock + data lines, timing-independent communication
  • 5V Operation – 5V power input with 0–5V logic levels
  • Numbered LEDs – Position labels for easier coding
  • Two Mounting Positions – Secure installation options
  • Solder Jumpers – CO and DO jumpers for closed-loop designs

Ideal For

  • Custom lighting designs and LED outlines
  • Racing drone accent lighting
  • Wearable and costume lighting
  • Raspberry Pi and single-board computer LED projects
Warning: If creating a closed-loop design, you must cut the CO and DO solder jumpers on the last board in the loop before powering up. Failing to do so will likely burn out LEDs.

Package Contents

  • 1× SparkFun Lumenati 8-stick

Resources
