SparkFun LuMini LED Matrix - 8x8 (64 x APA102-2020)

Product image 1
1 / 4

SparkFun LuMini LED Matrix - 8x8 (64 x APA102-2020)

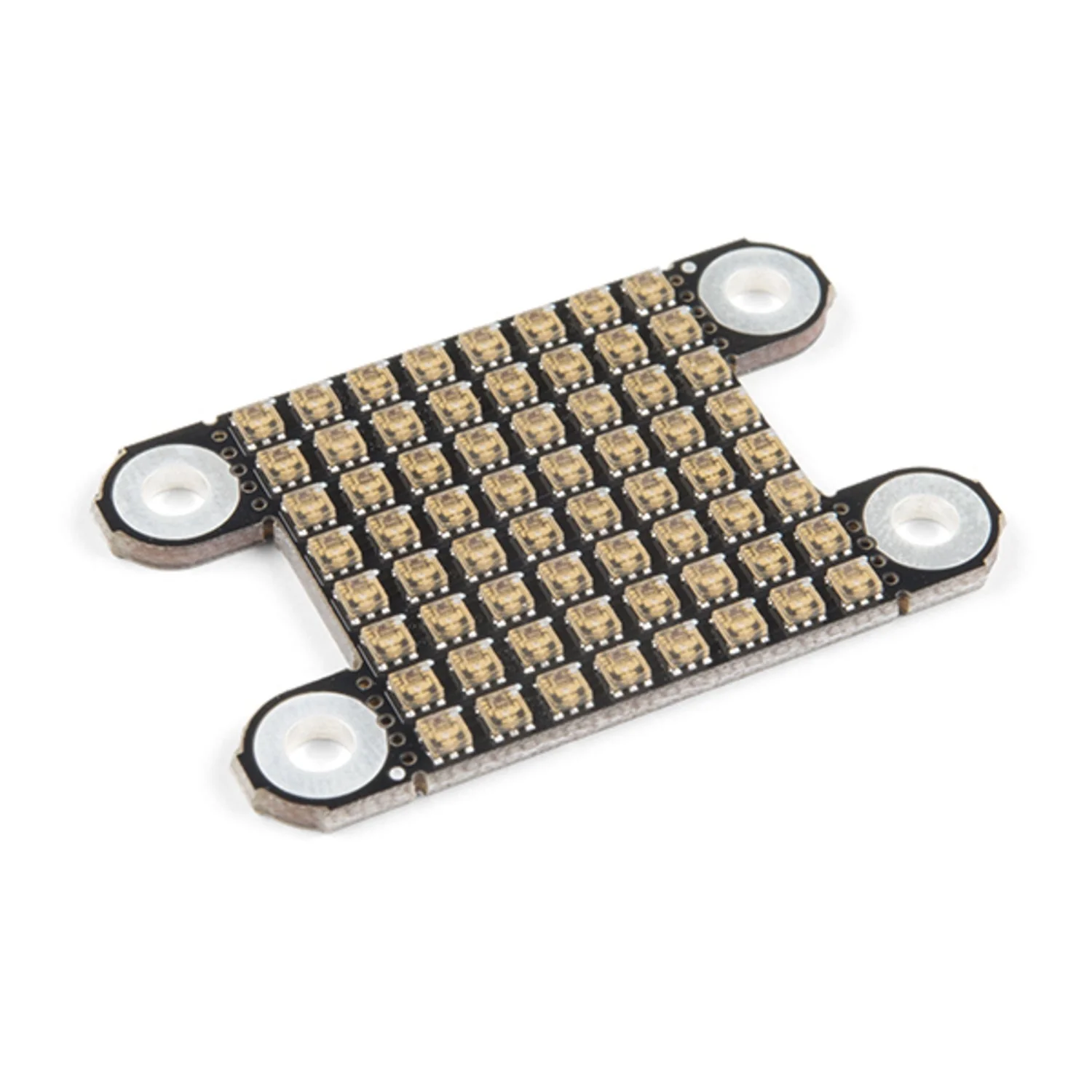

The SparkFun LuMini LED Matrix packs 64 individually addressable APA102-2020 LEDs into a compact 8×8 grid. Each LED supports 16 million colours, making it ideal for creating small displays, indicators, or custom-shaped screens by tiling multiple matrices together.

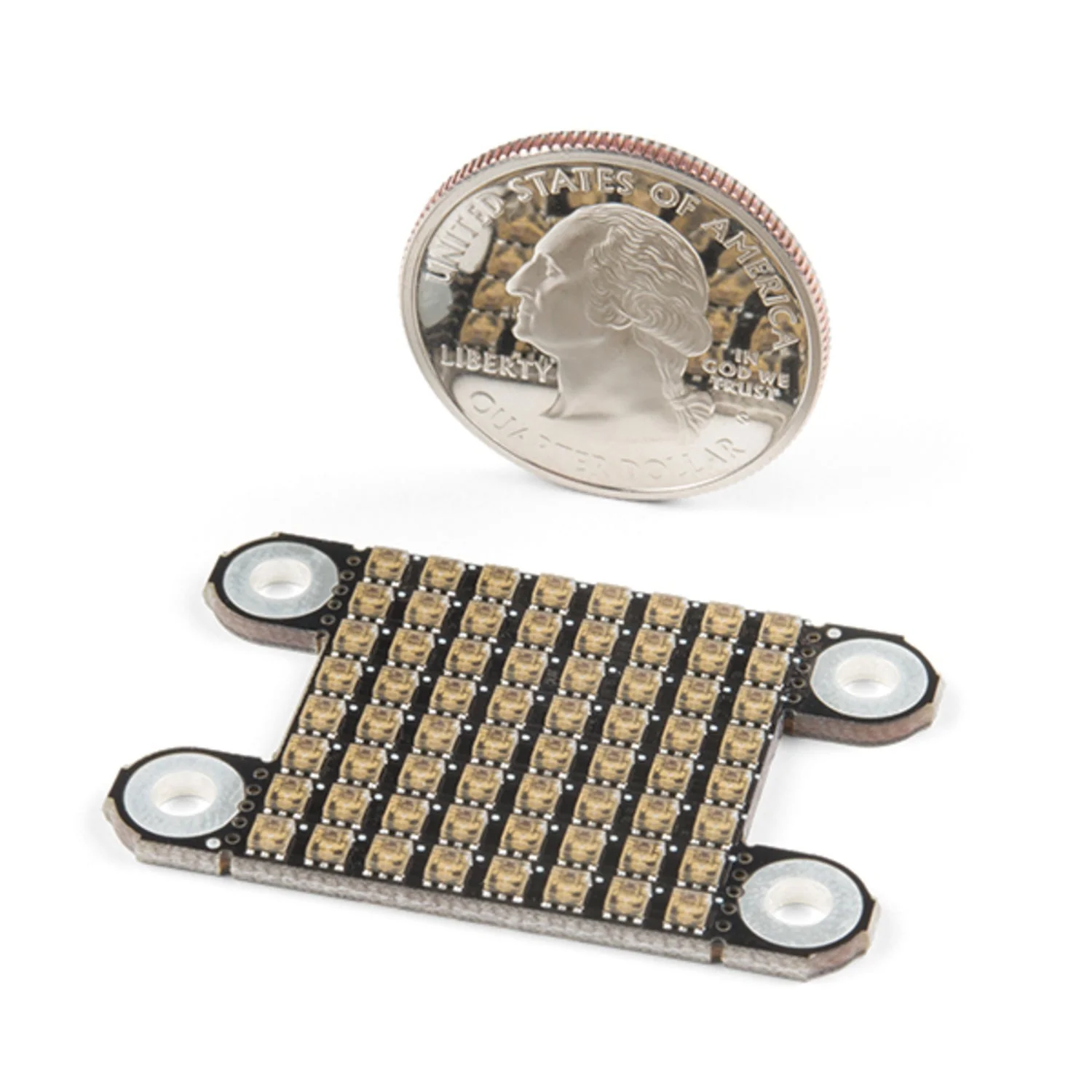

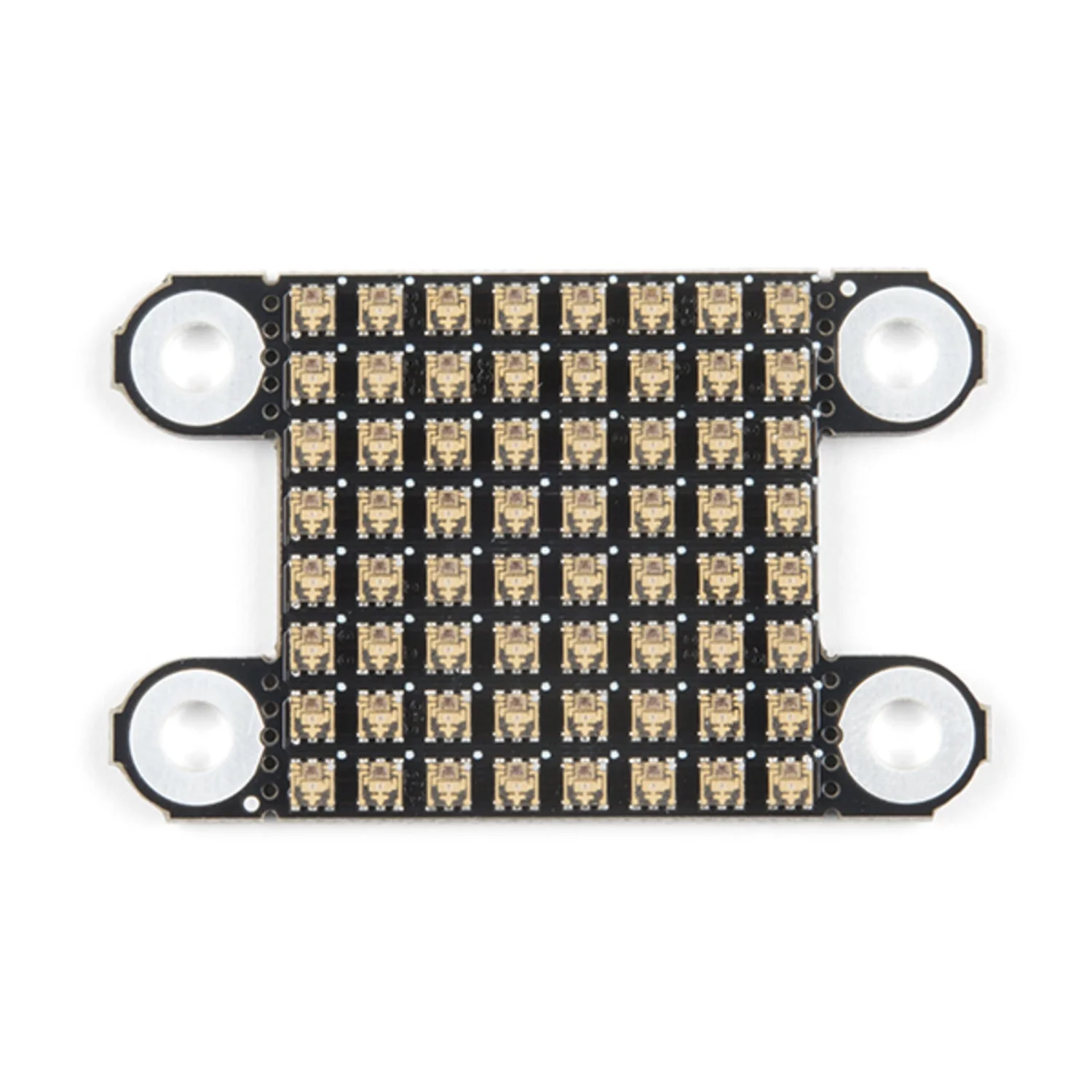

The LuMini uses miniature 2 mm × 2 mm APA102-2020 LEDs (compared to the standard 5 mm × 5 mm APA102-5050), enabling much tighter pixel density with less visible pixelation. LEDs are indexed left to right, bottom to top on the LED-facing side. Multiple boards can be soldered together via data out/clock out pads to form larger displays.

Key Features

  • 64 APA102-2020 LEDs – Individually addressable RGB in an 8×8 grid
  • 16 Million Colours – Full RGB colour per LED
  • High Pixel Density – 2 mm × 2 mm LED package for minimal pixelation
  • Chainable – Data out/clock out pads for tiling multiple matrices
  • Detachable Mounting Points – Four breakaway tabs for mounting or removal

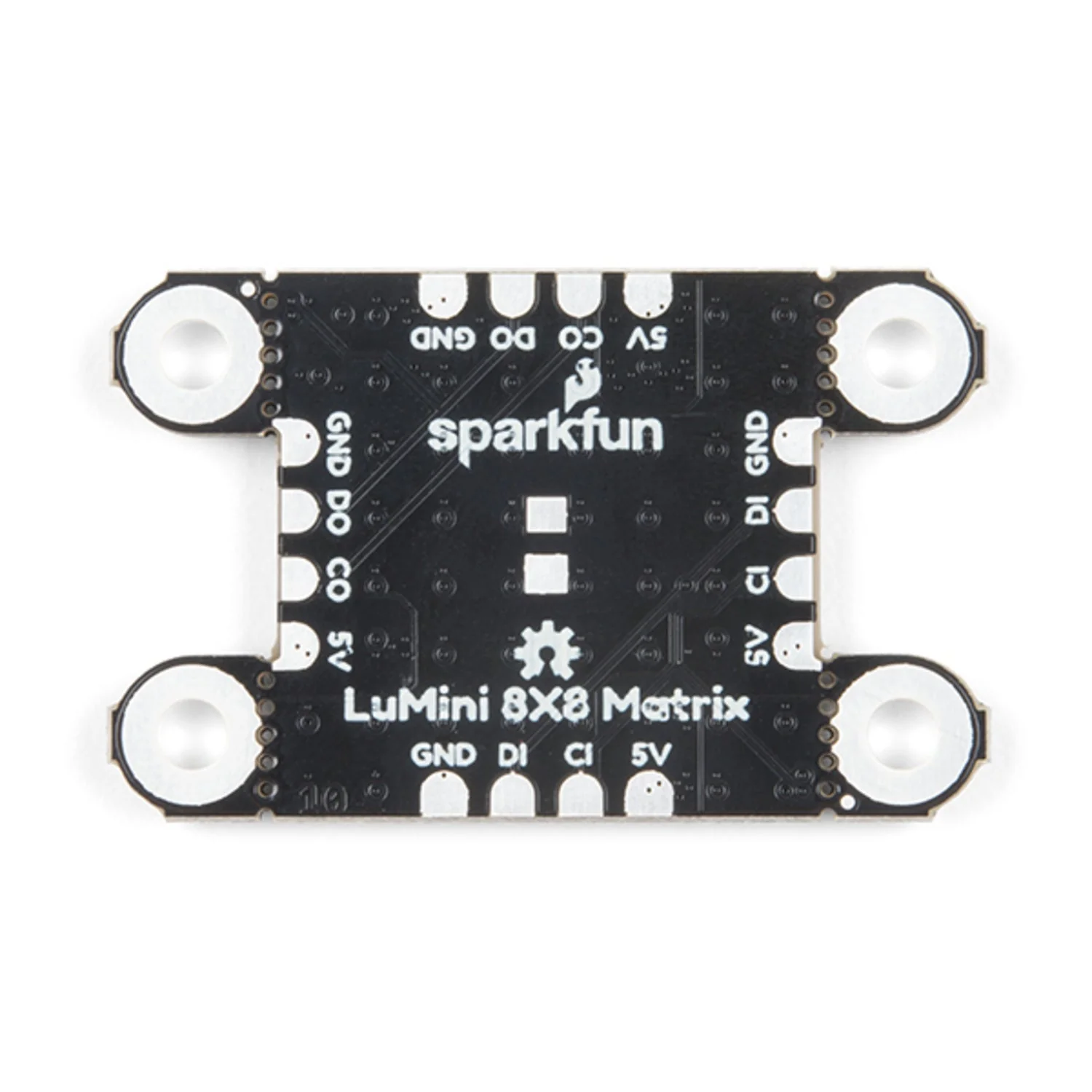

  • SPI Interface – Data in + clock in solder pads on the back

Specifications

  • LED Type: APA102-2020
  • LED Count: 64 (8×8)
  • LED Package: 2 mm × 2 mm
  • Supply Voltage: 5 V
  • Interface: SPI (data + clock)
Note: For larger installations, add a 4.7 µF decoupling capacitor between power and ground to prevent voltage dips when turning on many LEDs simultaneously.

Ideal For

  • Miniature LED displays and indicators
  • Custom-shaped tiled LED screens
  • Wearable electronics and cosplay
  • Ambient lighting and data visualisation

Package Contents

  • 1× SparkFun LuMini 8×8 LED Matrix

Resources
