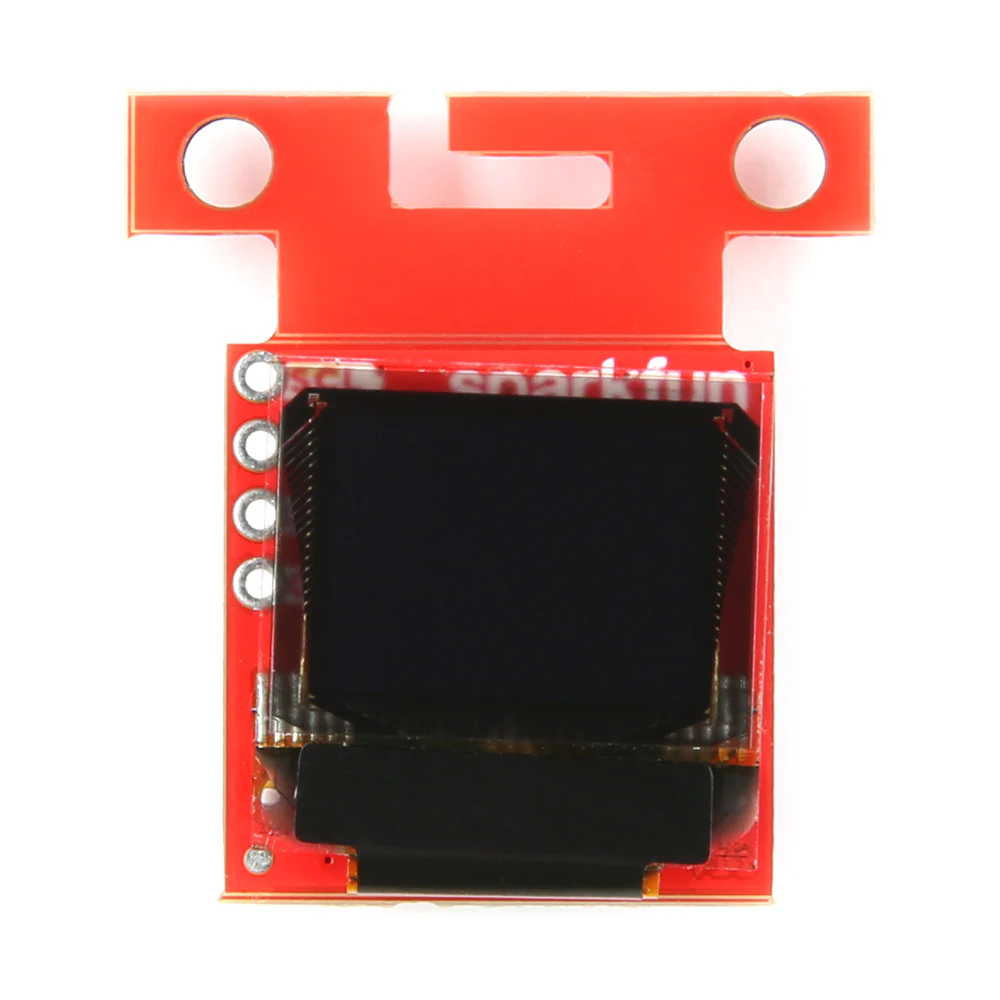

A compact monochrome OLED breakout board featuring a 64×48 pixel blue-on-black display (0.66" diagonal). Equipped with two Qwiic connectors for solderless I²C connection, plus 0.1"-spaced header pins for breadboard use. The board includes I²C pull-up and address jumpers on the back for flexible configuration.

The display is driven by an SSD1306 controller over I²C, with a default address of 0x3D (jumper-selectable to 0x3C). Two mounting holes and a detachable Qwiic cable holder tab (v-scored for easy removal) are included.

Key Features

• 64×48 Pixel OLED – Monochrome blue-on-black, 0.66" diagonal

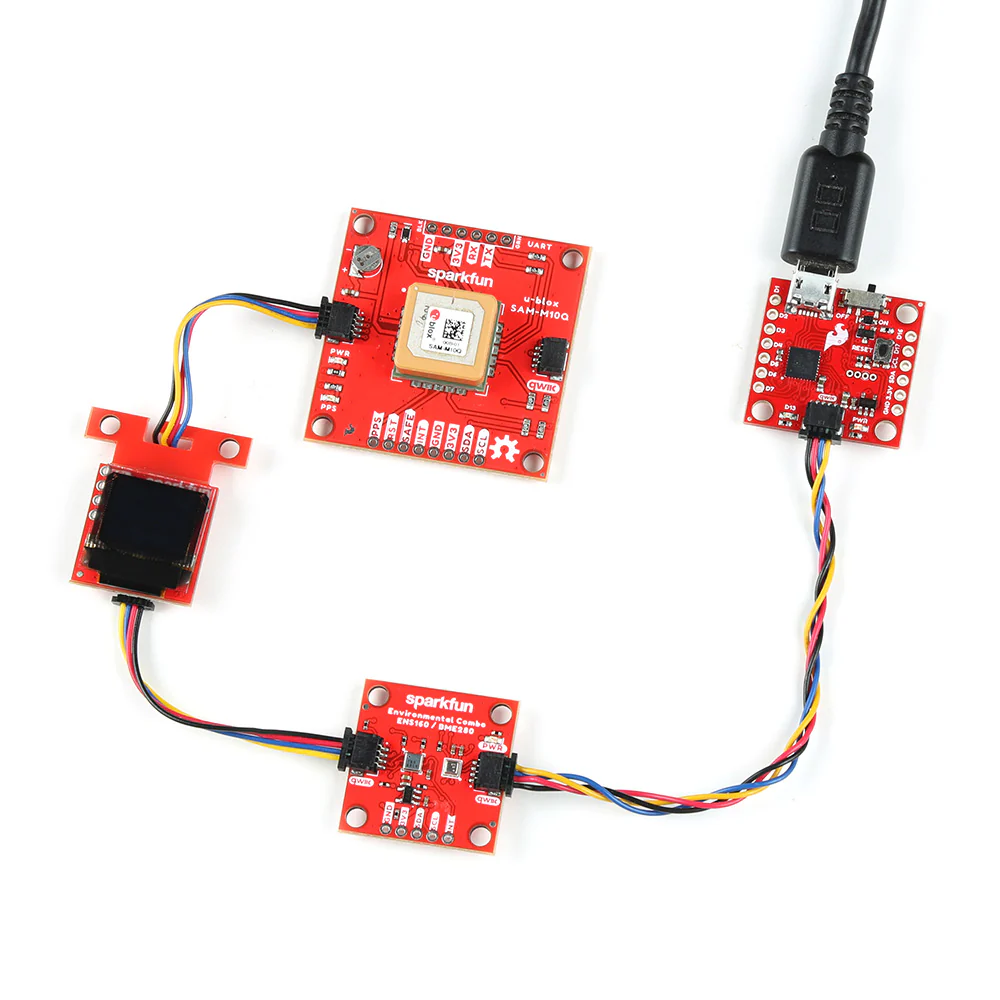

• Dual Qwiic Connectors – Solderless I²C daisy-chaining
• Breadboard Friendly – 0.1"-spaced header pins broken out
• Configurable Jumpers – I²C pull-up resistor (4.7 kΩ) and address selection
• Selectable I²C Address – 0x3D (default) or 0x3C

Specifications

• Display: 64×48 pixels, monochrome blue-on-black OLED
• Controller: SSD1306
• Interface: I²C (Qwiic / standard headers)
• I²C Address: 0x3D (default), 0x3C (alternate)
• Operating Voltage: 3.3 V
• Operating Current: 10 mA typical, 20 mA max
• Dimensions: 1.08" × 1.17"

Ideal For

• Displaying sensor data, diagnostics, and status information
• Small graphical interfaces for embedded projects
• Qwiic I²C sensor networks

Resources

• Hookup Guide
• Board Dimensions
• Schematic (v11)
• Eagle Files (v11)
• SSD1306 Datasheet
• Micro OLED Arduino Library
• Qwiic OLED Arduino Library
• Qwiic Micro OLED Python Package
• GitHub Hardware Repo
• Fritzing Part
