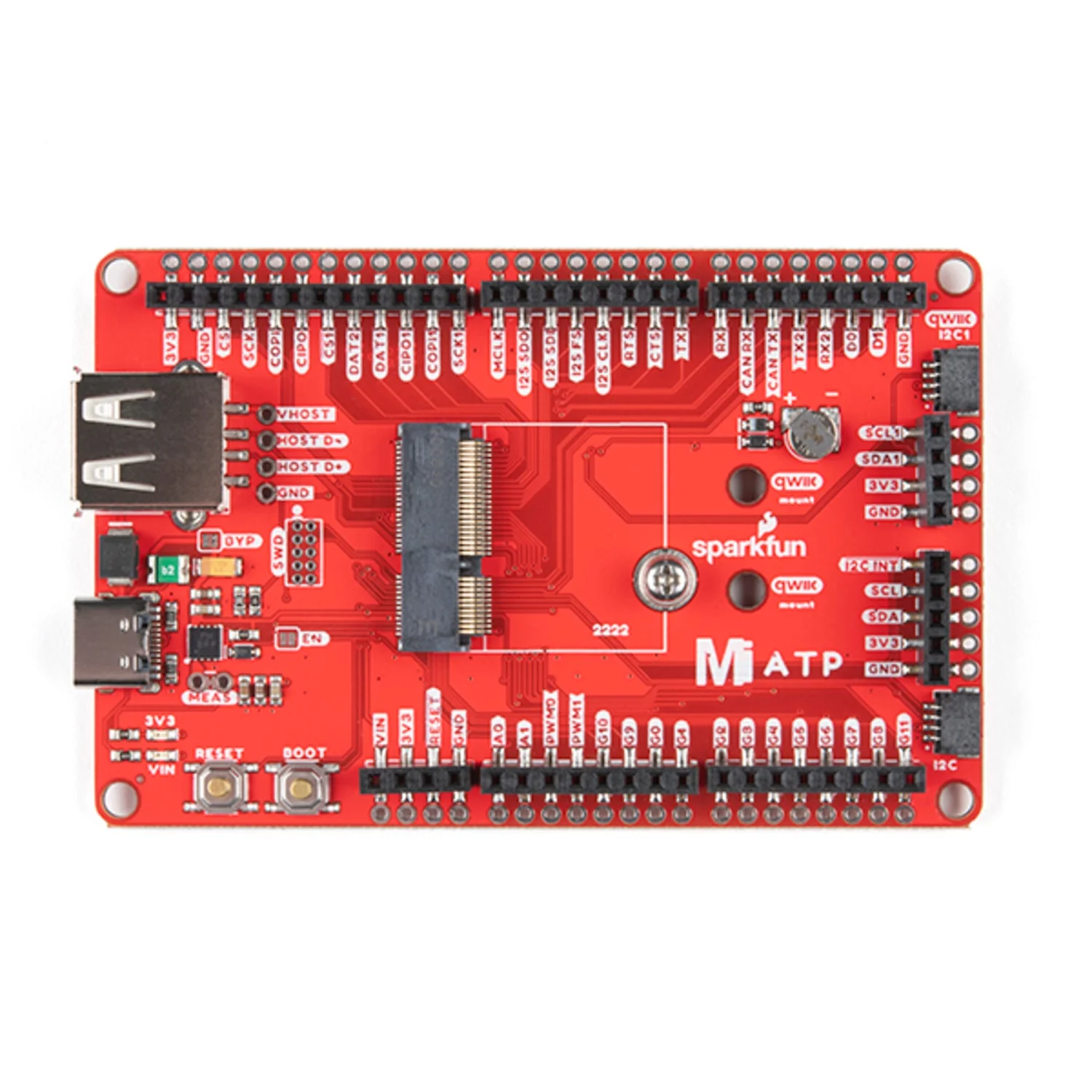

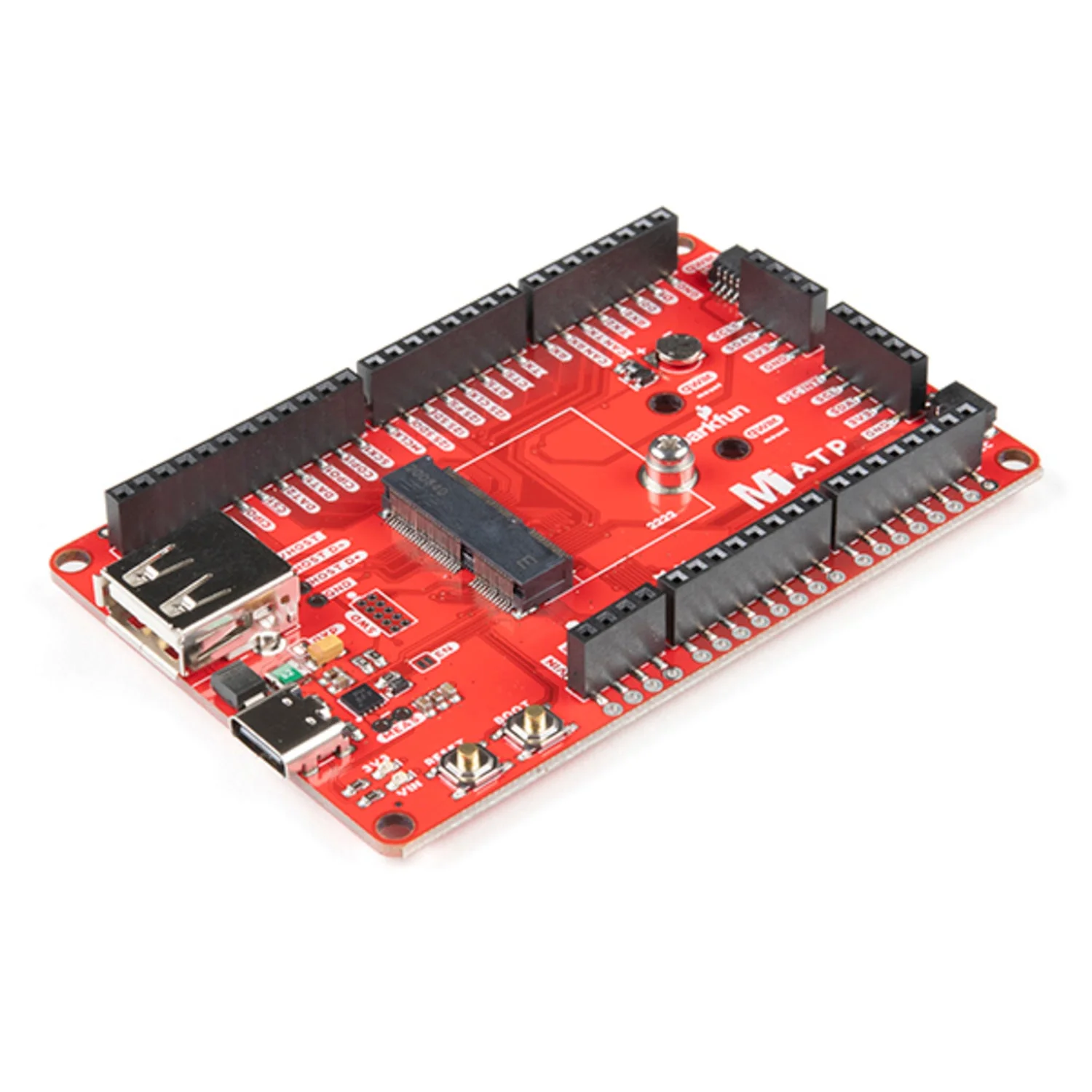

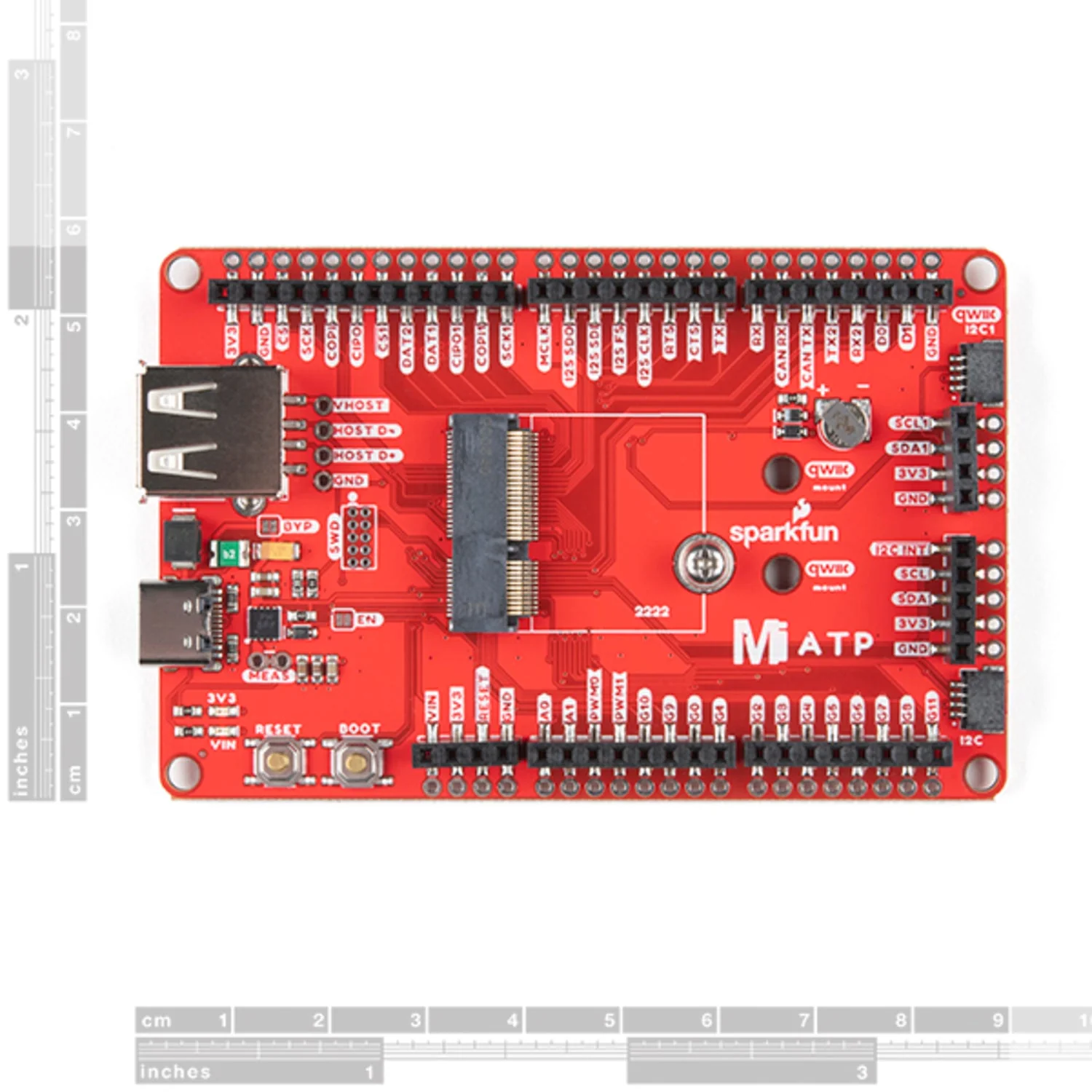

The SparkFun MicroMod ATP (All The Pins) Carrier Board breaks out every pin from the MicroMod M.2 connector to 0.1" female headers and PTH pads, giving you full access to your MicroMod Processor Board's capabilities. It's the ideal development and prototyping platform for evaluating different MicroMod processors.

The board features a USB-C connector for programming, a USB-A connector for processor boards with USB Host support, two Qwiic I2C ports for daisy-chaining sensors, SWD debug pins, and a backup battery for processors with RTC. A current measurement jumper is included for low-power testing.

Key Features

• All Pins Broken Out – Every M.2 connector pin accessible via 0.1" headers and PTH pads
• USB-C Programming – Modern connector for easy programming and power
• USB-A Host Port – For processor boards with USB Host support
• 2× Qwiic I2C Ports – Daisy-chain Qwiic-enabled sensors and peripherals
• SWD Debug Pins – For professional debugging tools
• Backup Battery – Maintains RTC on supported processor boards
• Current Measurement Jumper – Convenient low-power consumption testing
• M.2 Connector – Hot-swap compatible MicroMod processor boards

Ideal For

• Evaluating and comparing MicroMod processor boards
• Prototyping with full GPIO access
• Projects requiring maximum pin availability
• Low-power development and current profiling

Compatible Processor Boards

• MicroMod SAMD51 Processor
• MicroMod RP2040 Processor
• MicroMod nRF52840 Processor

Package Contents

• 1× SparkFun MicroMod ATP Carrier Board

Resources

• Hookup Guide
