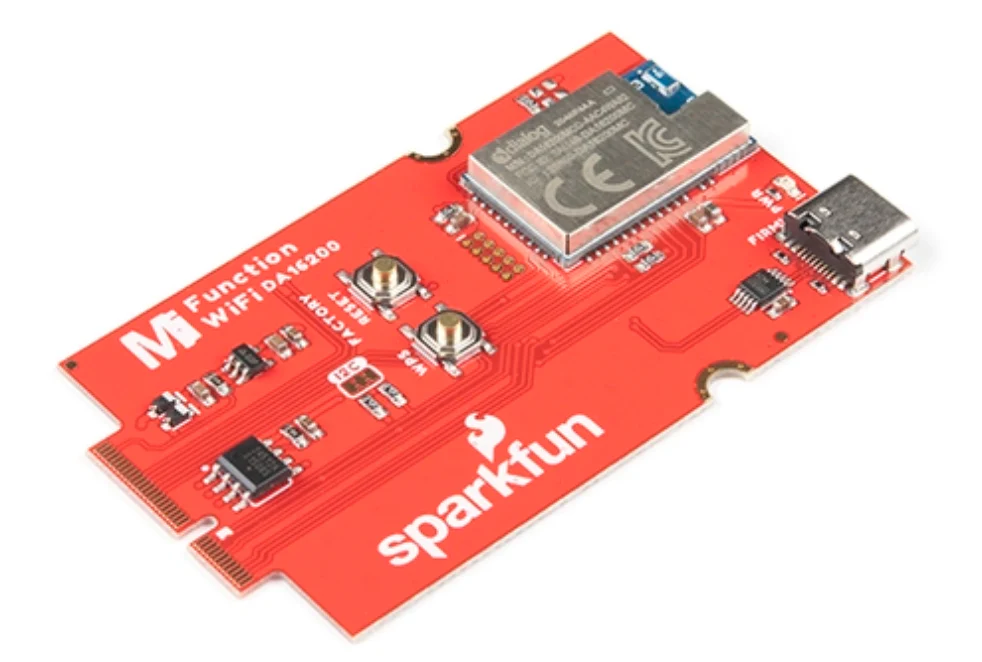

The SparkFun MicroMod DA16200 Function Board adds fully integrated Wi-Fi connectivity to any MicroMod project. Built around the DA16200 module with an Arm Cortex-M4F processor, it includes a 40 MHz crystal oscillator, 32.768 kHz RTC, 4 MB flash memory, and an on-board chip antenna — everything needed for IoT applications.

Three ultra-low power sleep modes with current draw as low as 3.5 µA make this board ideal for battery-powered IoT devices such as sensors, door locks, thermostats, and trackers. The DA16200 module is Wi-Fi Alliance certified for IEEE 802.11b/g/n.

Key Features

• Arm Cortex-M4F Core – 30–160 MHz clock frequency
• Wi-Fi 802.11b/g/n – 2.4 GHz, 20 MHz channel bandwidth, Wi-Fi mesh support
• Wi-Fi Security – WPA/WPA2-Enterprise/Personal, WPA3 SAE, OWE
• 4 MB SPI Flash – On-board storage for firmware and data
• Ultra-Low Power Sleep – As low as 3.5 µA in sleep mode
• On-Chip RTC – Real-time clock for timed wake-up
• 2× UARTs – Serial communication interfaces
• JTAG Connectors – For advanced programming and debugging
• Operating Voltage – 2.1–3.6 V

Resources

• Hookup Guide
• Schematic (PDF)
• DA16200 Datasheet (PDF)
• AP2112 Datasheet (PDF)
• AT Command User Manual (PDF)
• GitHub Hardware Repo
• Getting Started with MicroMod
