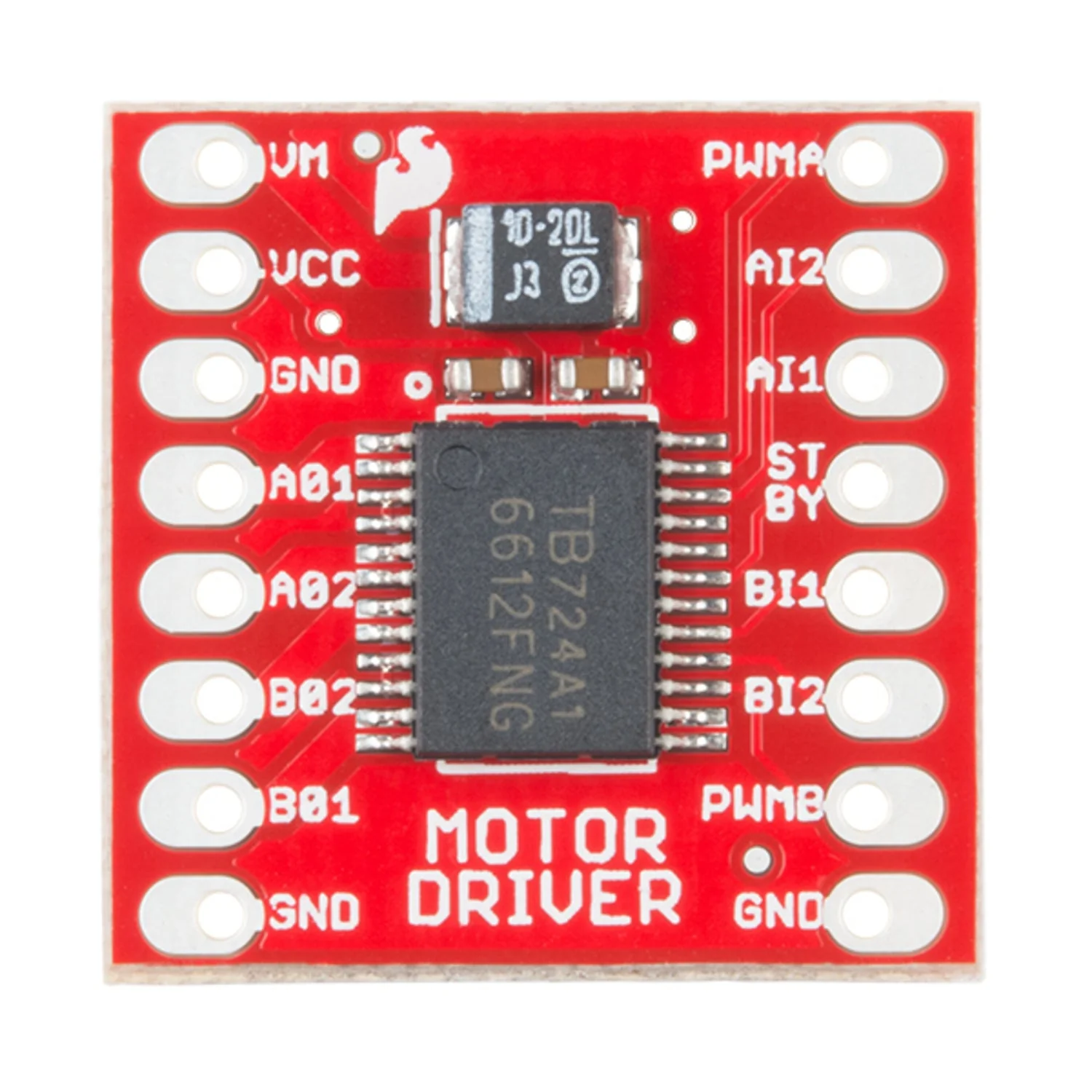

The SparkFun TB6612FNG Motor Driver breakout can independently control up to two DC motors at a constant current of 1.2 A (3.2 A peak). Each motor channel supports four modes — clockwise, counter-clockwise, short-brake, and stop — controlled via two input signals and a PWM speed input.

All pins are broken out to 0.1″ pitch headers with inputs on one side and outputs on the other for clean wiring. Decoupling capacitors are included on both supply lines. No additional components needed — just solder headers and connect your motors.

Key Features

• Dual H-Bridge – Independently control two DC motors
• 1.2 A Continuous / 3.2 A Peak – Per channel output current
• PWM Speed Control – Up to 100 kHz input frequency
• Wide Motor Voltage – VM up to 15V DC
• Logic Voltage – 2.7–5.5V DC (VCC)
• Standby Pin – Pull STBY high to enable, low for low-power standby
• Breadboard Friendly – 0.1″ pitch headers, inputs and outputs on opposite sides

Specifications

• Driver IC – Toshiba TB6612FNG
• Motor Channels – 2
• Continuous Current – 1.2 A per channel
• Peak Current – 3.2 A (single pulse)
• Motor Supply (VM) – Up to 15V DC
• Logic Supply (VCC) – 2.7–5.5V DC
• PWM Frequency – Up to 100 kHz

Ideal For

• Small robot platforms and rovers
• Motorised art installations
• Arduino and Raspberry Pi motor control
• Any project requiring dual DC motor driving

Package Contents

• 1× SparkFun Motor Driver - Dual TB6612FNG (1A) Breakout

Resources

• TB6612FNG Hookup Guide
