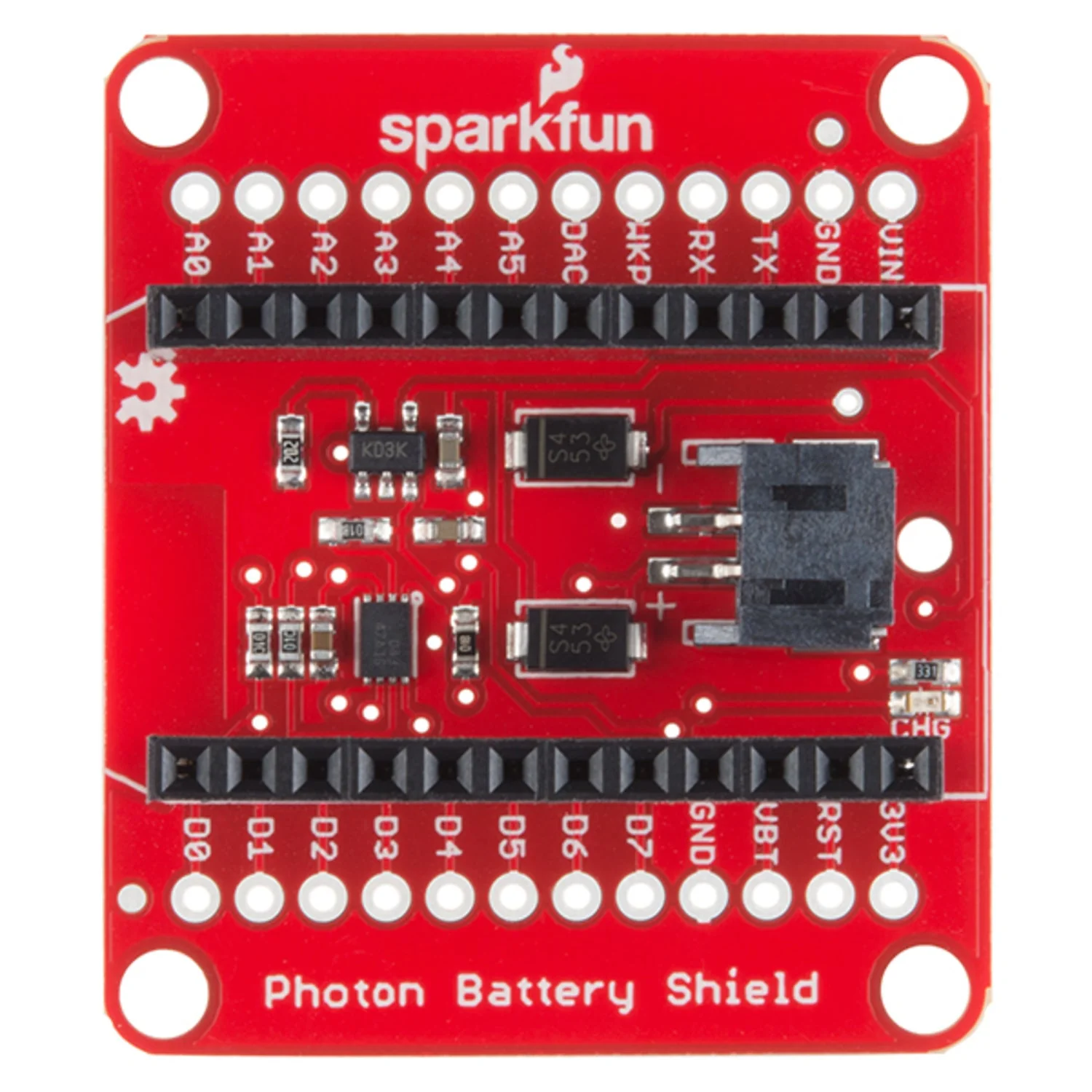

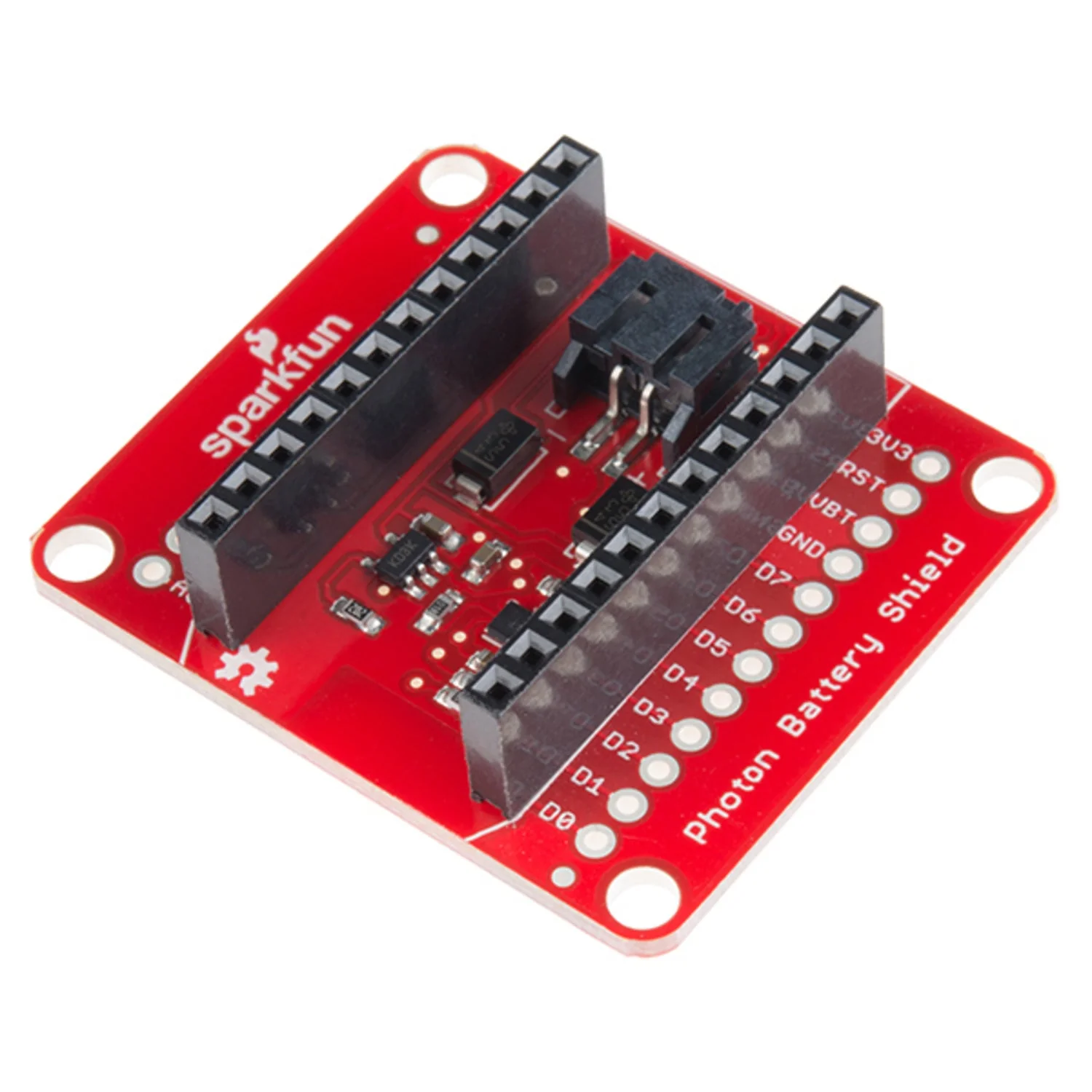

The SparkFun Photon Battery Shield provides portable LiPo battery power and charging for the Particle Photon (and Particle Core). It features a JST connector for a single-cell LiPo battery and charges via the Photon's onboard micro USB connector, making it easy to build battery-powered IoT projects.

The shield uses a MCP73831 charge controller for safe LiPo charging and a MAX1704X fuel gauge IC for monitoring battery level. Headers come pre-soldered for immediate plug-and-play use.

Key Features

• LiPo Battery Power – JST connector for single-cell LiPo batteries
• USB Charging – Charges via the Photon's micro USB port using the MCP73831
• Fuel Gauge – MAX1704X IC for battery level monitoring
• Pre-Soldered Headers – Plug and play, no soldering required
• Dual Compatibility – Works with both the Particle Photon and Particle Core

Specifications

• Charge Controller: MCP73831
• Fuel Gauge: MAX1704X
• Battery Connector: JST (single-cell LiPo)
• Charge Input: Micro USB (via Photon)
• Compatibility: Particle Photon, Particle Core

Ideal For

• Portable and battery-powered IoT projects
• Remote sensor deployments with WiFi connectivity
• Mobile Particle Photon applications
• Prototyping wireless devices away from mains power

Package Contents

• 1× SparkFun Photon Battery Shield (headers pre-soldered)

Resources

• Hookup Guide
• Photon Development Guide
• Schematic (PDF)
• MCP73831 Datasheet (PDF)
• MAX1704X Datasheet (PDF)
• GitHub Repository
