The SparkFun PIR Breakout Starter Kit includes everything needed to get started with passive infrared motion detection. Built around the Panasonic EKMB1107112 PIR sensor, this kit's breakout board offers ultra-low 1µA standby current, making it ideal for battery-powered motion-sensing applications.

The PIR sensor monitors infrared light across 32 detection zones with a 5-metre range and 90° × 90° detection area. It outputs a digital signal when motion is detected — no distance data, just reliable motion triggering. The kit includes a SparkFun RedBoard Qwiic, breadboard, jumper wires, and USB cable to get you prototyping immediately.

Key Features

• 1µA Standby Current – Ultra-low power for battery-powered applications
• 5m Detection Range – 90° × 90° detection area across 32 zones
• Digital Output – Simple high/low signal on motion detection
• Pre-Soldered Headers – PIR breakout comes with headers attached
• Complete Kit – Includes RedBoard Qwiic, breadboard, jumper wires, and USB cable

Ideal For

• Motion-activated lighting and security
• Battery-powered IoT motion sensors
• Building automation and energy-saving applications
• Learning PIR sensor basics with Arduino

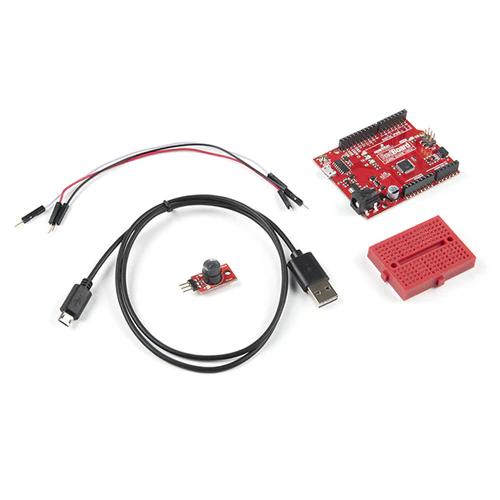

Package Contents

• 1× SparkFun PIR Breakout – 1µA (EKMB1107112) with headers
• 1× SparkFun RedBoard Qwiic
• 1× Mini breadboard (red)
• 1× Jumper wire 3-pack (red, black, white)
• 1× Reversible USB-A to Micro-B cable (0.8m)

Resources

• PIR Breakout Hookup Guide
• RedBoard Qwiic Hookup Guide
• Panasonic PIR Sensor Datasheet (PDF)
• EKMB110711x Spec Sheet (PDF)
• PIR Breakout Schematic (PDF)
• PIR Breakout Hardware (GitHub)
• RedBoard Qwiic Hardware (GitHub)
