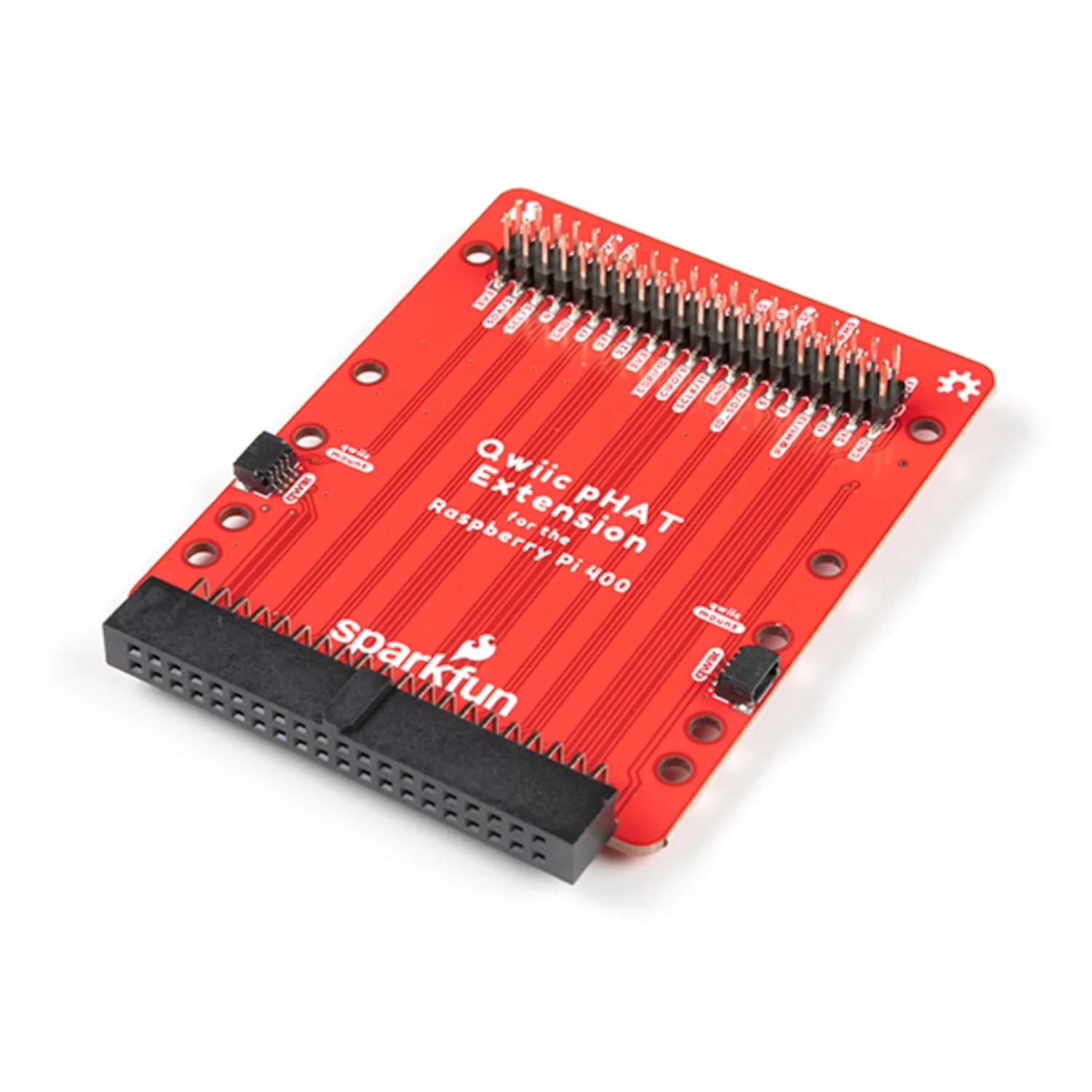

The SparkFun Qwiic pHAT Extension for Raspberry Pi 400 provides access to the Pi 400's GPIO header while adding Qwiic I2C connectivity. The board connects via a 2×20 right-angle header and extends out to the edge of the PCB, allowing you to stack HATs right-side up or connect Qwiic-enabled I2C devices.

Two Qwiic connectors (one on each side) provide easy access to the I2C bus (GND, 3.3 V, SDA, SCL), with support for daisy-chaining multiple Qwiic boards. Silicone bumpers are included for stability when connected to the Pi 400's GPIO port.

Key Features

• Full GPIO Access – 2×20 right-angle header extends all Pi 400 GPIO pins
• Dual Qwiic Connectors – One on each side for convenient I2C device connection
• HAT Stackable – Mount standard Raspberry Pi HATs right-side up
• Daisy-Chain Support – Connect multiple Qwiic I2C devices in series
• Silicone Bumpers – Included for stability on the Pi 400

Specifications

• Connector – 2×20 right-angle GPIO header
• Qwiic Ports – 2× JST-SH 4-pin (1 mm pitch)
• I2C Bus – GND, 3.3 V, SDA, SCL
• Compatibility – Raspberry Pi 400

Ideal For

• Adding Qwiic I2C sensors to the Raspberry Pi 400
• Accessing GPIO pins from the Pi 400 keyboard computer
• Stacking HATs and breakout boards

Package Contents

• 1× SparkFun Qwiic pHAT Extension for Raspberry Pi 400
• 1× Set of silicone bumpers

Resources

• Qwiic pHAT Extension Hookup Guide (SparkFun)
