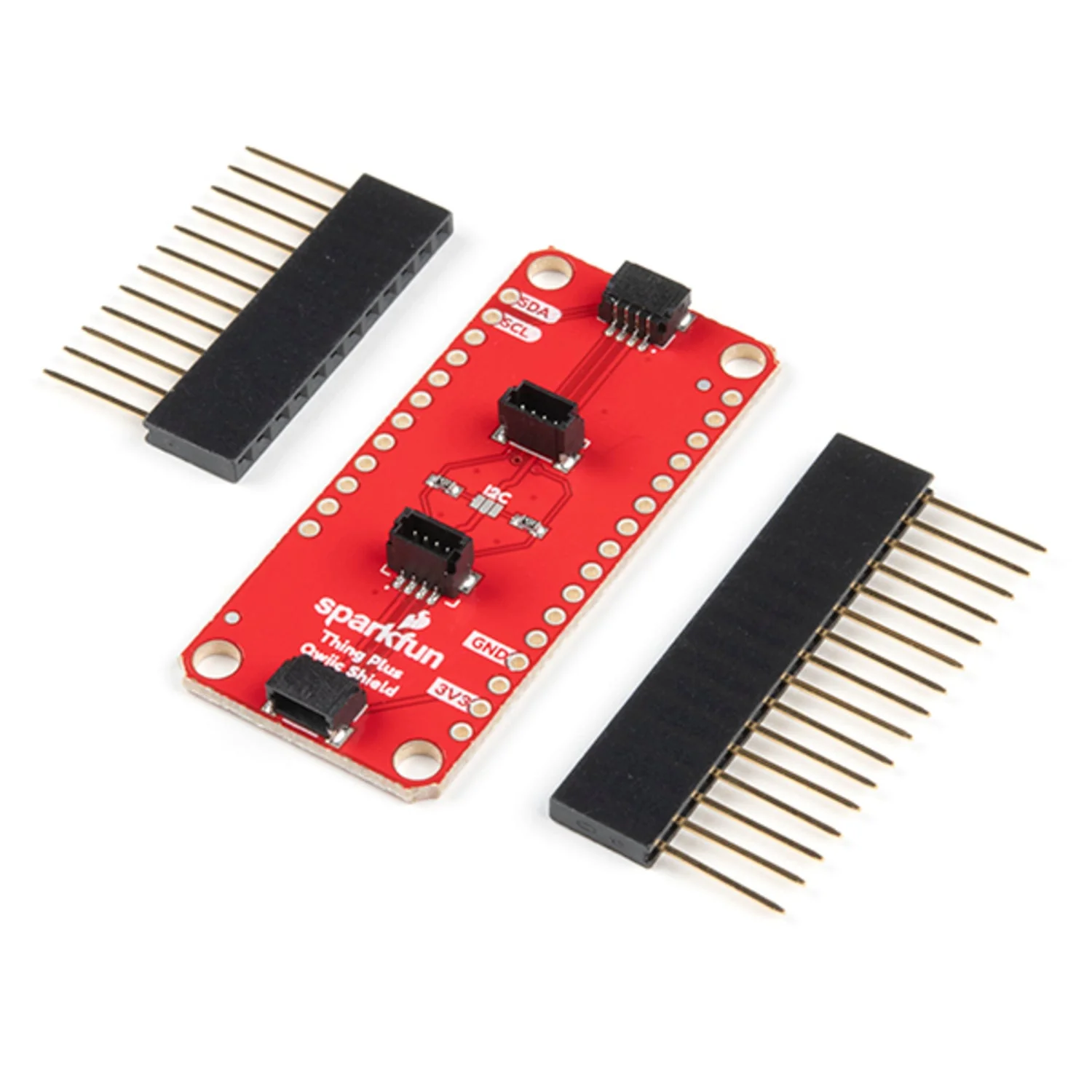

The SparkFun Qwiic Shield for Thing Plus adds four Qwiic connectors (two horizontal, two vertical) to any Thing Plus or Adafruit Feather-format development board. It breaks out the I²C bus (GND, 3.3 V, SDA, SCL) to standard 1 mm pitch JST connectors for solderless daisy-chaining of Qwiic-compatible sensors and actuators.

The shield comes with one 12-pin and one 16-pin header. Both headers need to be soldered to the shield, and to your Thing Plus or Feather board if not already fitted.

Key Features

• 4× Qwiic Connectors – 2 horizontal + 2 vertical JST connectors
• Thing Plus / Feather Compatible – Fits both footprints (interchangeable)
• I²C Bus Breakout – GND, 3.3 V, SDA, SCL on all connectors
• Daisy-Chainable – Connect multiple Qwiic devices on different I²C addresses
• Polarised Connectors – Cannot be connected incorrectly

Package Contents

• 1× Qwiic Shield for Thing Plus
• 1× 12-pin header
• 1× 16-pin header

Ideal For

• Adding Qwiic connectivity to Thing Plus and Feather boards
• Rapid I²C sensor prototyping
• Daisy-chaining multiple Qwiic modules

Resources

• Qwiic Shield for Thing Plus – Hookup Guide
