Everything you need to build a wireless Bluetooth audio speaker. The kit centres on the ESP32 IoT RedBoard for Bluetooth streaming and the WM8960 Audio Codec for high-quality stereo decoding via I2S. Connect your phone or tablet via Bluetooth, hit play, and listen through the included mini speaker or headphones via the 3.5 mm TRRS breakout.

The WM8960 codec features automatic level control, programmable gain, pop/click suppression, 3D stereo enhancement, and configurable I2S settings via I2C. All boards come with headers pre-soldered for quick breadboard assembly.

Key Features

• Bluetooth Audio Streaming – ESP32 receives audio wirelessly from any BT source
• WM8960 Stereo Codec – High-quality DAC with I2S input, headphone drivers, and speaker output
• Qwiic / I²C Configuration – Configure the codec via software over I²C
• Complete Kit – All boards, cables, breadboard, and speaker included
• Headers Pre-Soldered – Ready for breadboard use out of the box

Ideal For

• Wireless Bluetooth audio adapters
• Portable digital music players
• Audio mixing and output projects
• Learning I2S audio protocols

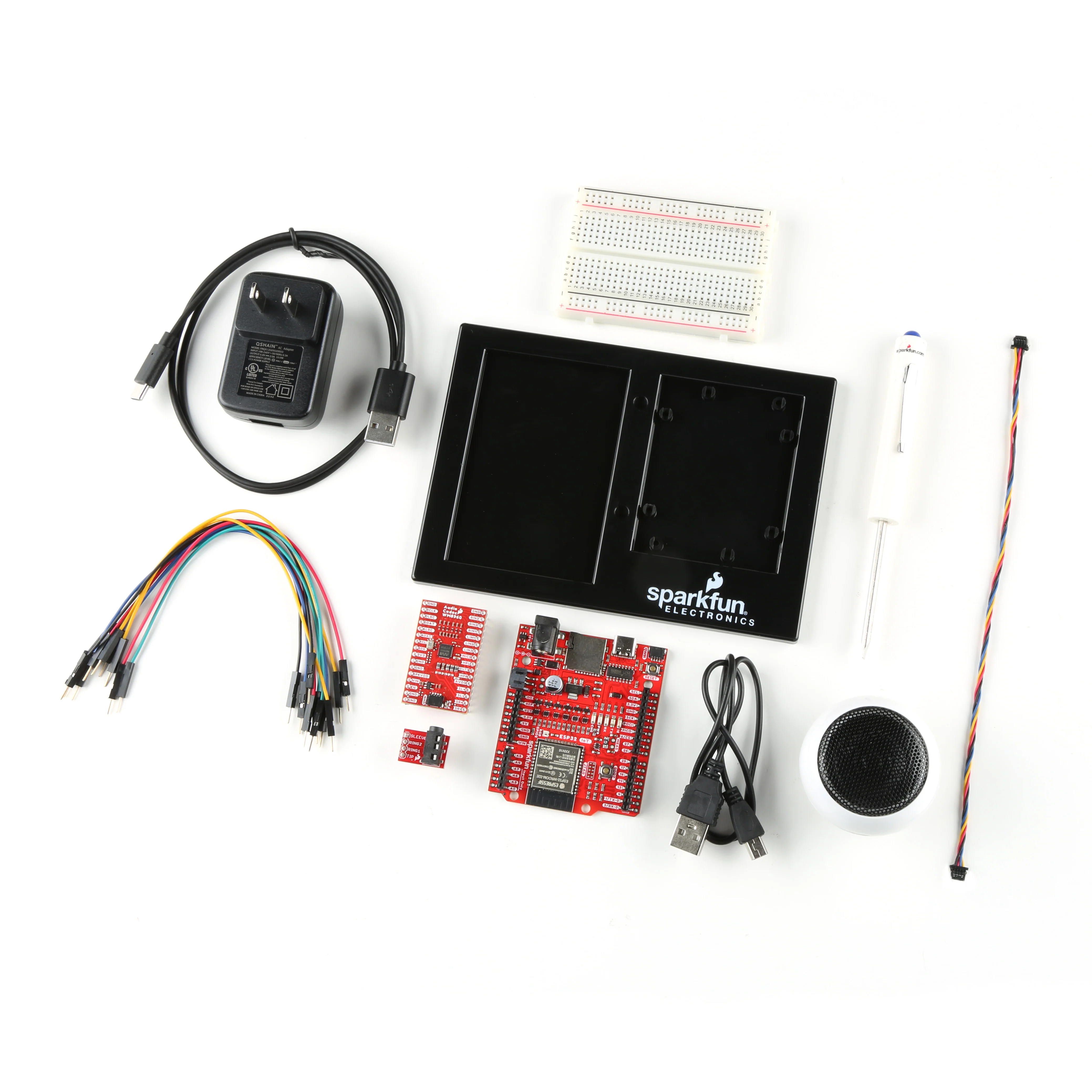

Package Contents

• 1× IoT RedBoard – ESP32 Development Board
• 1× Reversible USB-A to USB-C cable (0.8 m)
• 1× WM8960 Audio Codec Breakout (with headers)
• 1× Breadboard
• 1× Flexible Qwiic Cable (200 mm)
• 1× Jumper Wires – 6" M/M (pack of 10)
• 1× TRRS 3.5 mm Jack Breakout (with headers)
• 1× USB Wall Charger – 5 V, 2 A (US plug)
• 1× Hamburger Mini Speaker
• 1× Arduino and Breadboard Holder
• 1× Mini Screwdriver

Resources

ESP32 IoT RedBoard

• Schematic (PDF)
• Eagle Files
• Hookup Guide
• CH340C Driver Installation
• GitHub Repository

WM8960 Audio Codec Breakout

• Schematic (PDF)
• WM8960 Datasheet (PDF)
• Hookup Guide – Bluetooth Example
• Arduino Library (GitHub)
• GitHub Repository

TRRS 3.5 mm Jack Breakout

• Schematic (PDF)
• GitHub Repository
