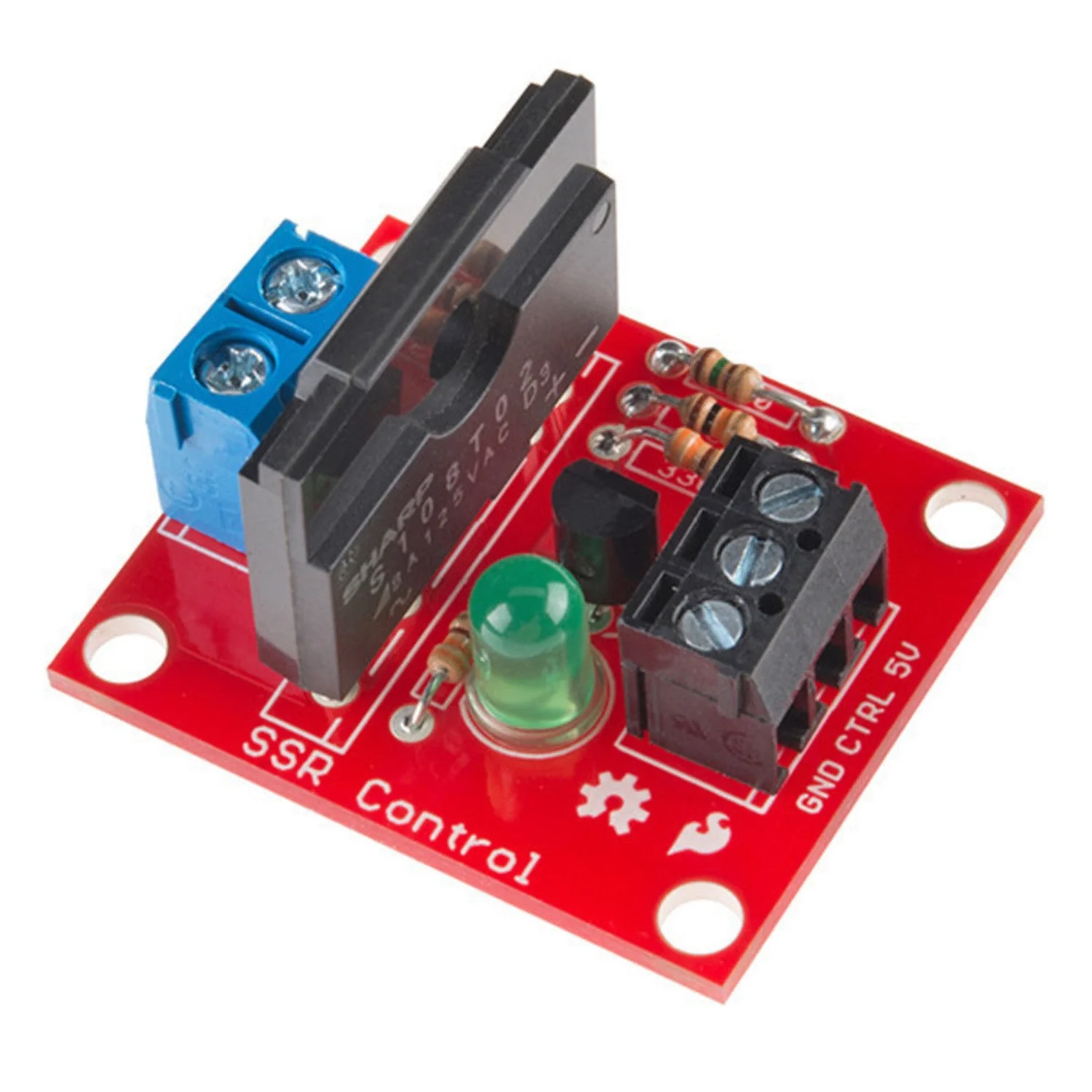

SparkFun Solid State Relay Kit

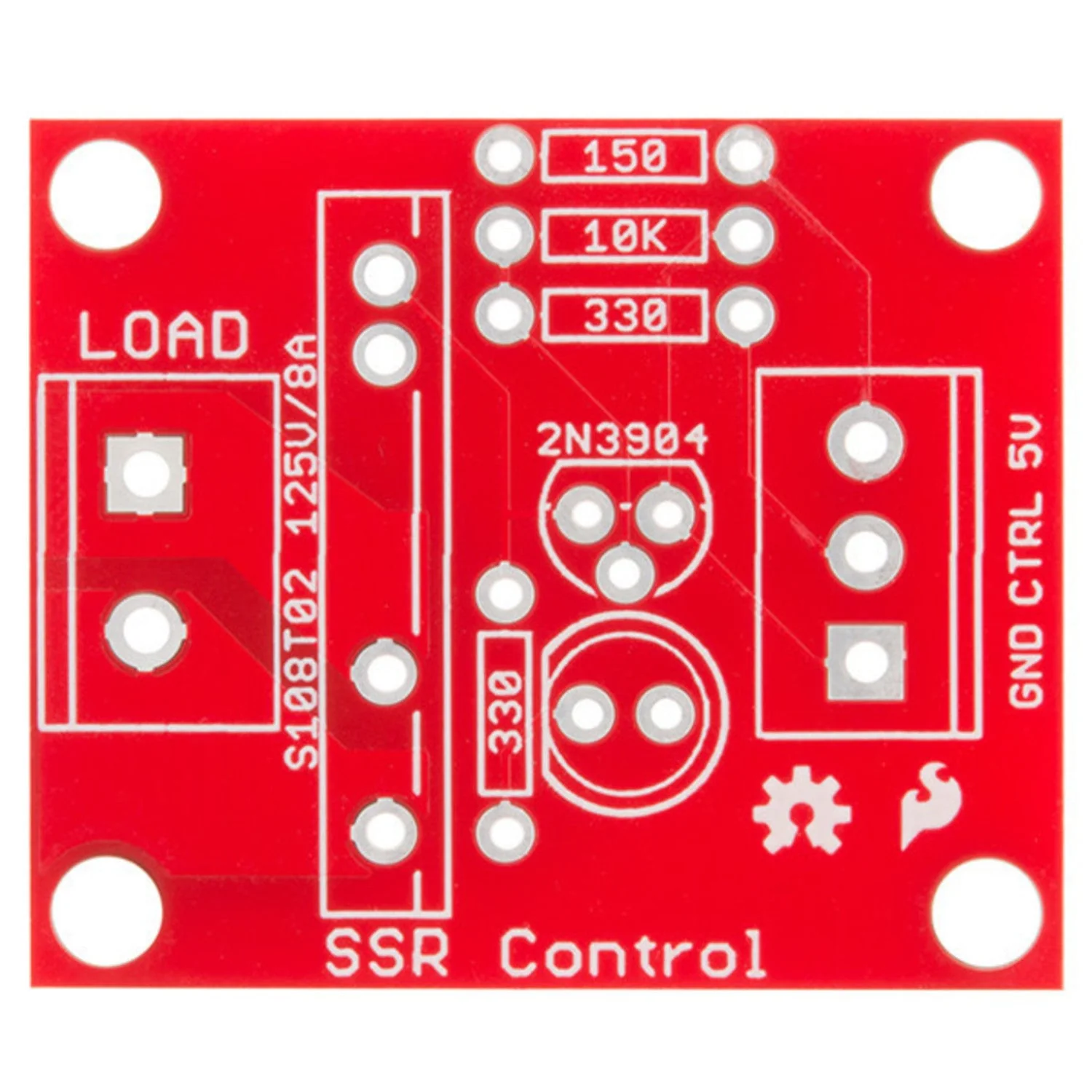

A through-hole soldering kit that builds a solid-state relay (SSR) breakout board. Solid-state relays switch high-voltage AC loads from low-voltage DC control signals with no moving parts, offering faster switching, longer lifespan, and lower control current than mechanical relays.
After assembly, connect your AC load and switch it on and off using a 5 V microcontroller output. Suitable for controlling lights, fans, water pumps, and other intermittent AC devices.
Specifications
- SSR IC – S108T02F
- Maximum Load – 125 V AC at 8 A
- Control Voltage – 5 V DC
- Signal Current – 16–50 mA
- Dimensions – 28.5 × 33.3 mm

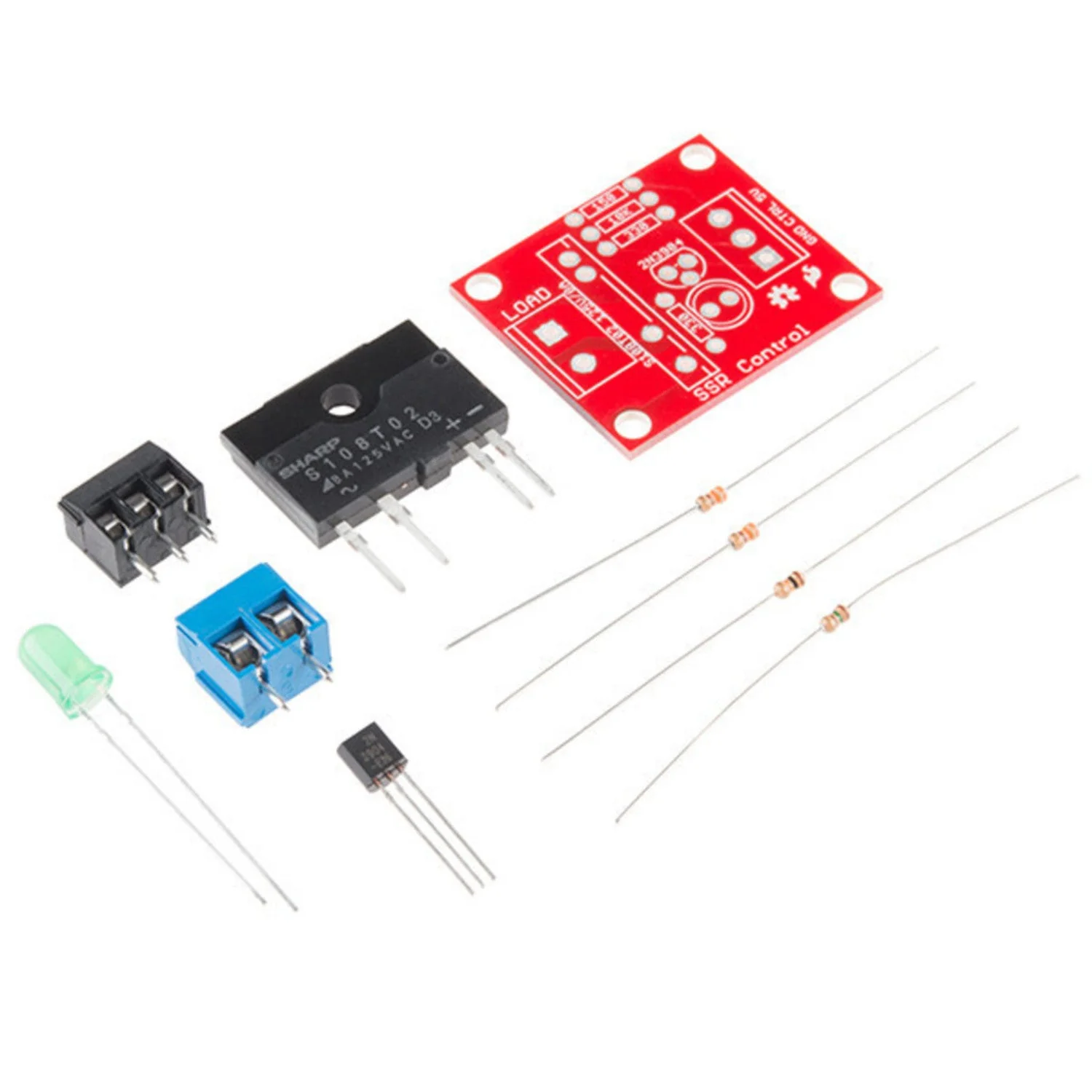

- Assembly – Through-hole soldering kit (beginner-friendly)
