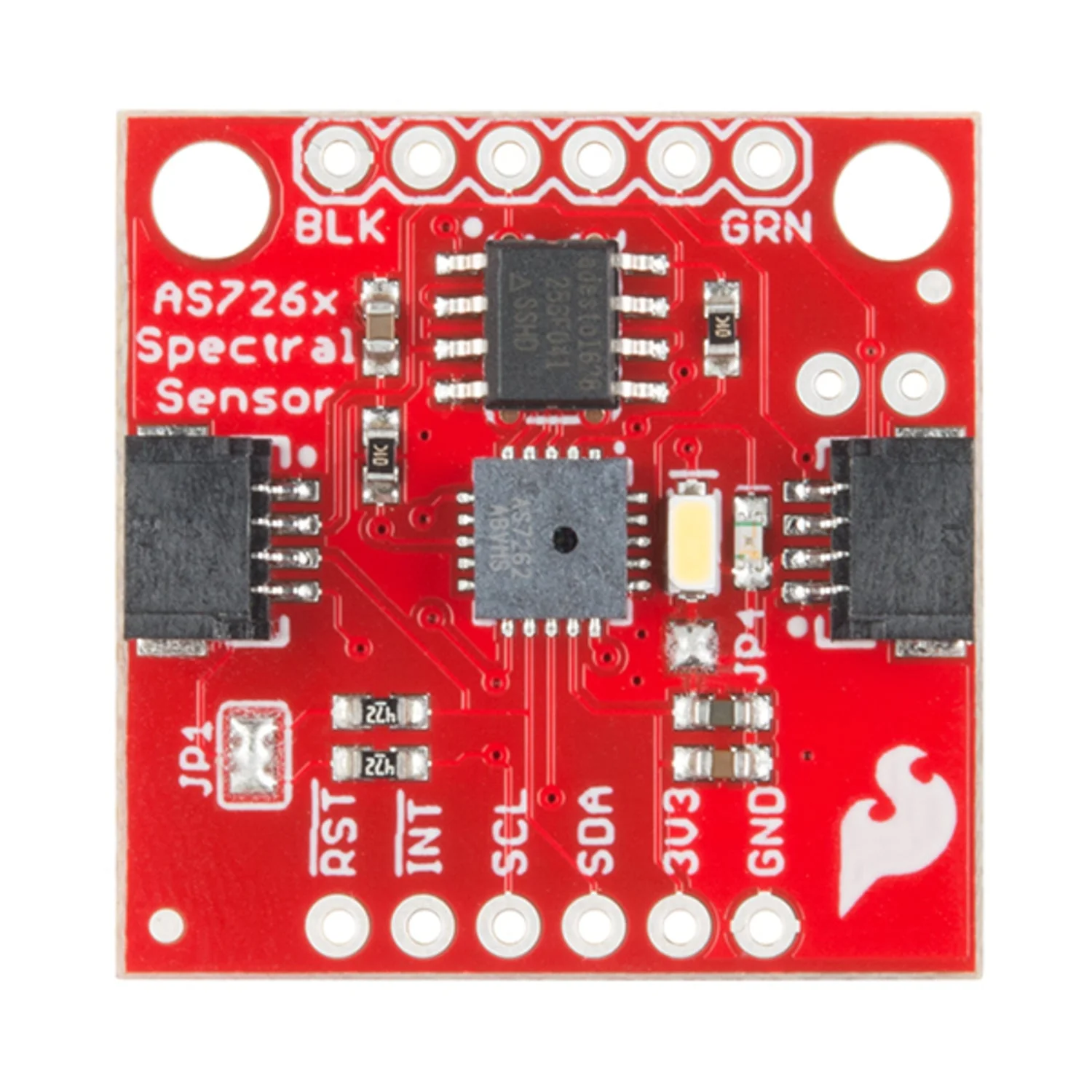

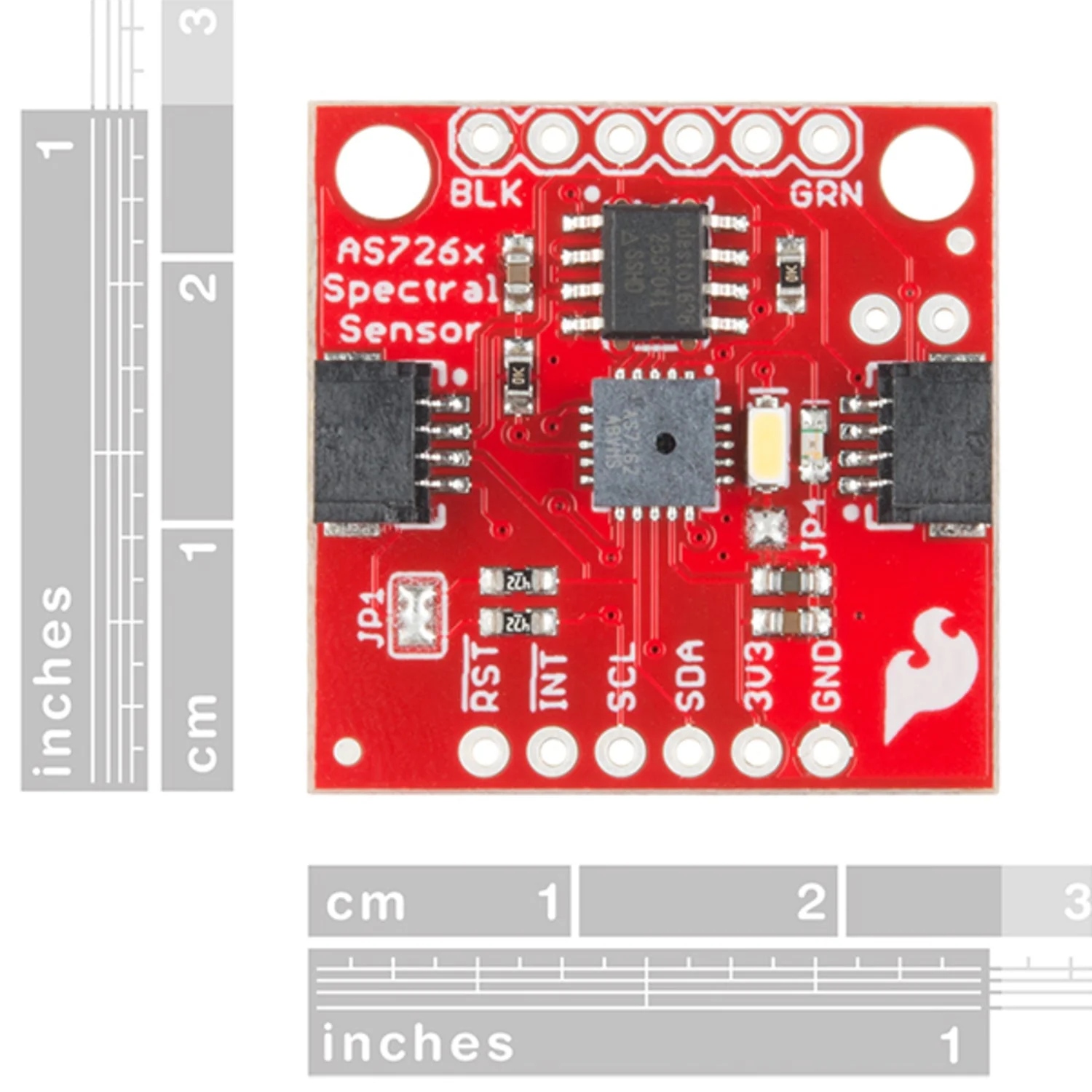

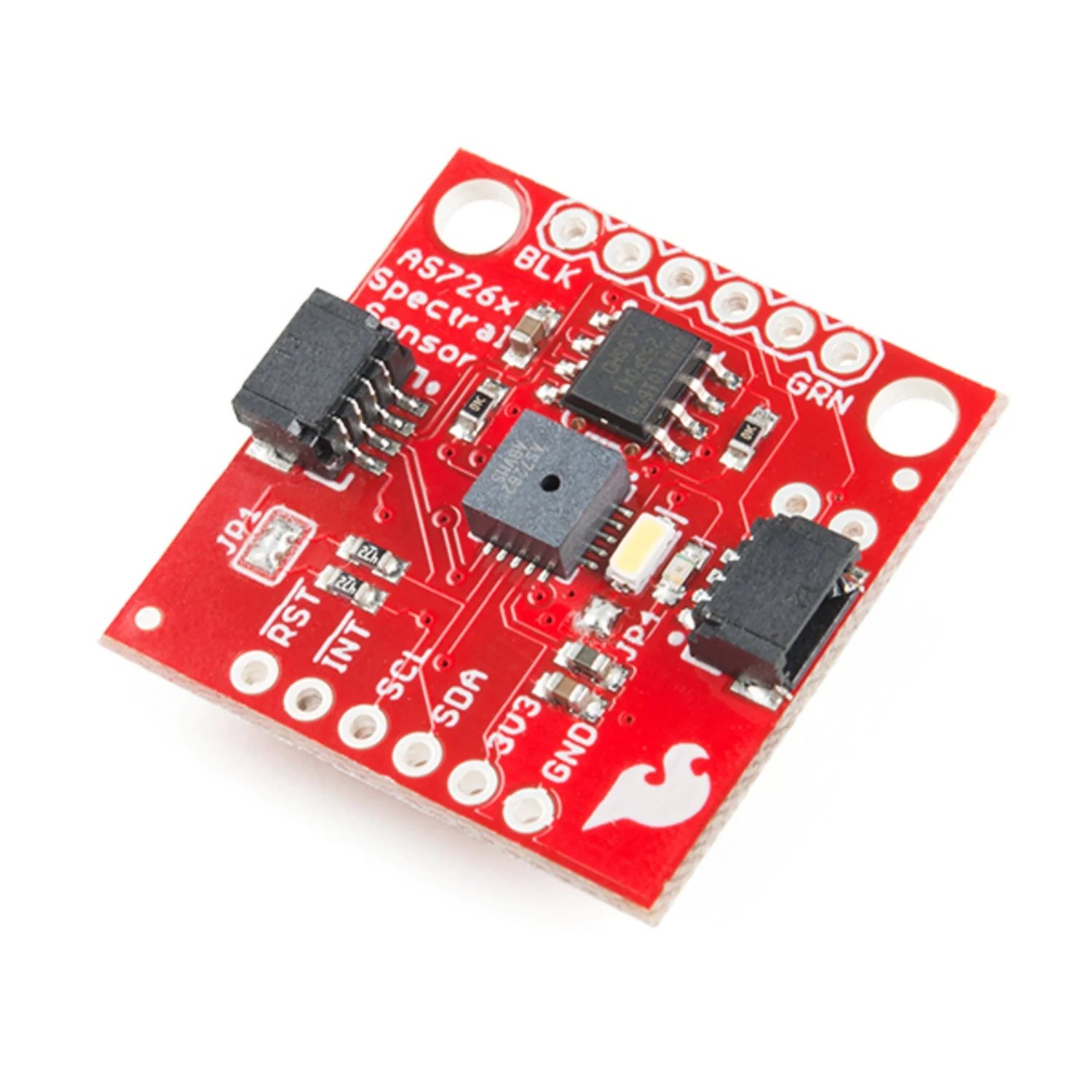

The SparkFun AS7262 Visible Spectral Sensor Breakout brings spectroscopy to the palm of your hand, making it easy to measure and characterise how different materials absorb and reflect different wavelengths of light. It communicates via both I²C and serial (AT commands), and features Qwiic connectors for plug-and-play hookup — no soldering required.

The AS7262 detects six wavelengths in the visible spectrum — 450, 500, 550, 570, 600, and 650 nm — each with 40 nm full-width half-maximum (FWHM) detection. An onboard LED is included for illuminating samples, plus two pads for soldering your own LED.

Key Features

• 6-Channel Visible Spectroscopy – Measures 450, 500, 550, 570, 600, and 650 nm wavelengths
• 40 nm FWHM – Precise per-channel detection bandwidth

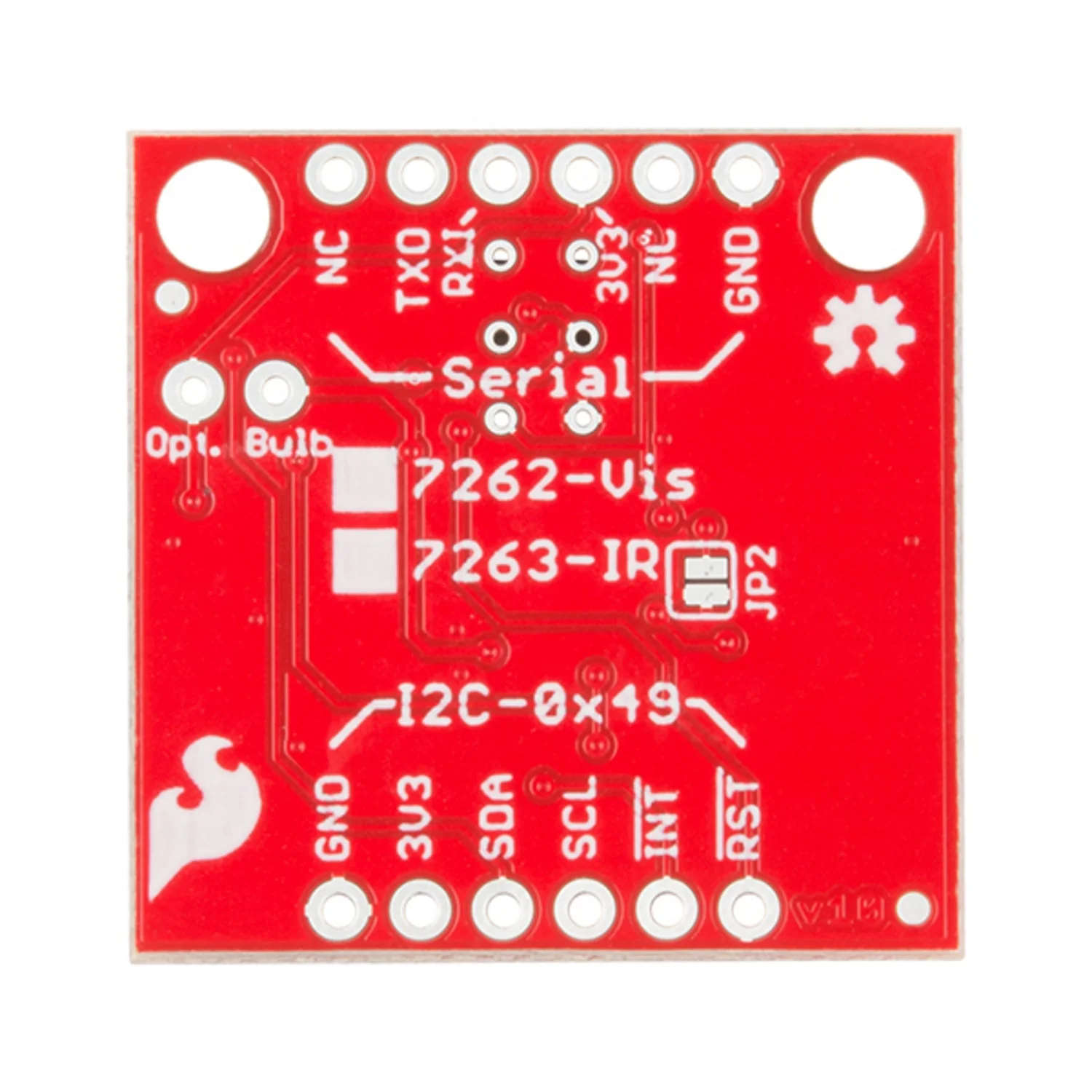

• Dual Interface – I²C (address 0x49) and UART serial with AT commands

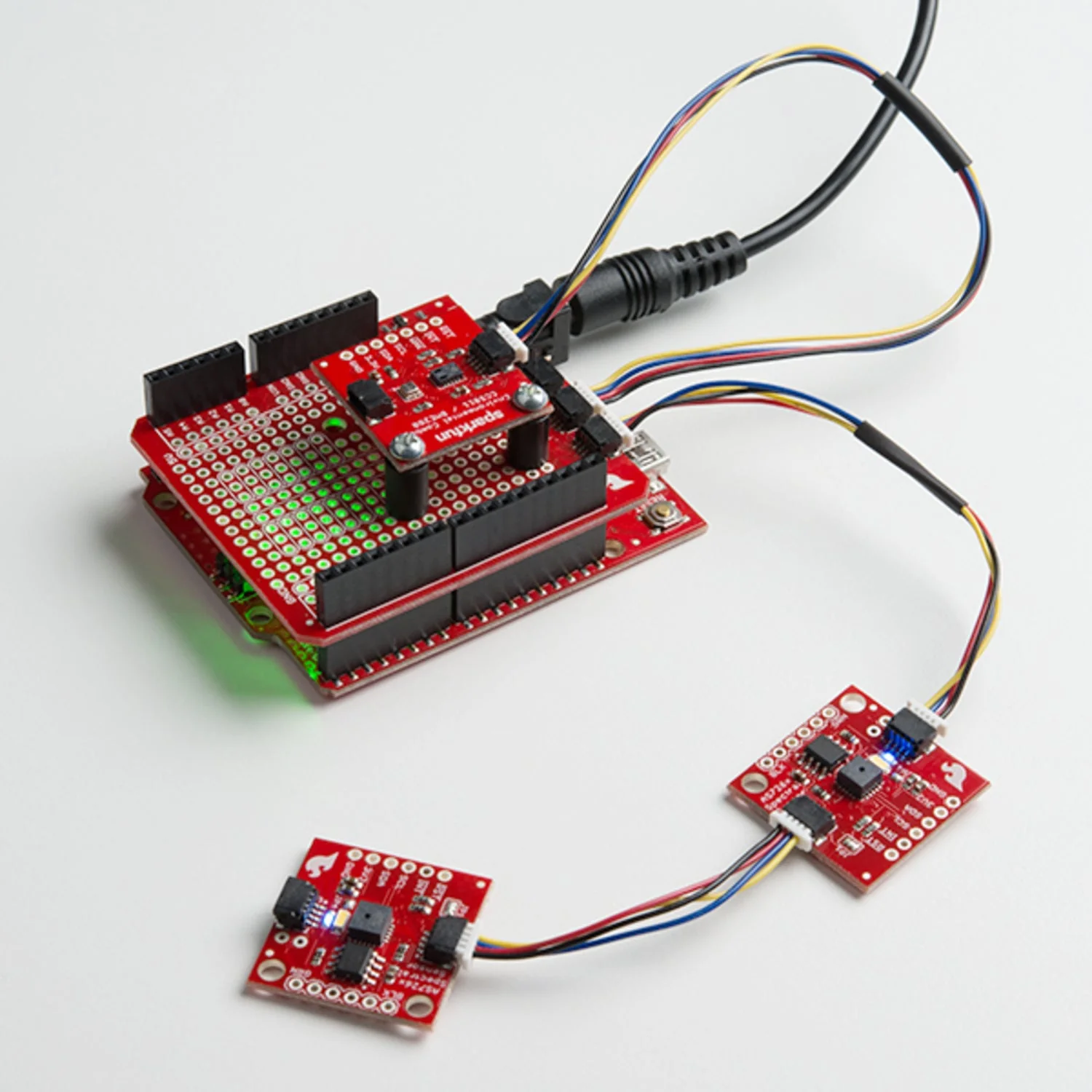

• Qwiic Connectors – Plug directly into any Qwiic-compatible board
• Onboard Illumination LED – Plus pads for a custom LED
• 3.3V Logic – Compatible with most modern microcontrollers

Ideal For

• Colour detection and sorting
• Material analysis and identification
• Light source characterisation
• Science and education projects

Package Contents

• 1× SparkFun AS7262 Visible Spectral Sensor Breakout (Qwiic)

Resources

• AS726X Spectral Sensor Hookup Guide
