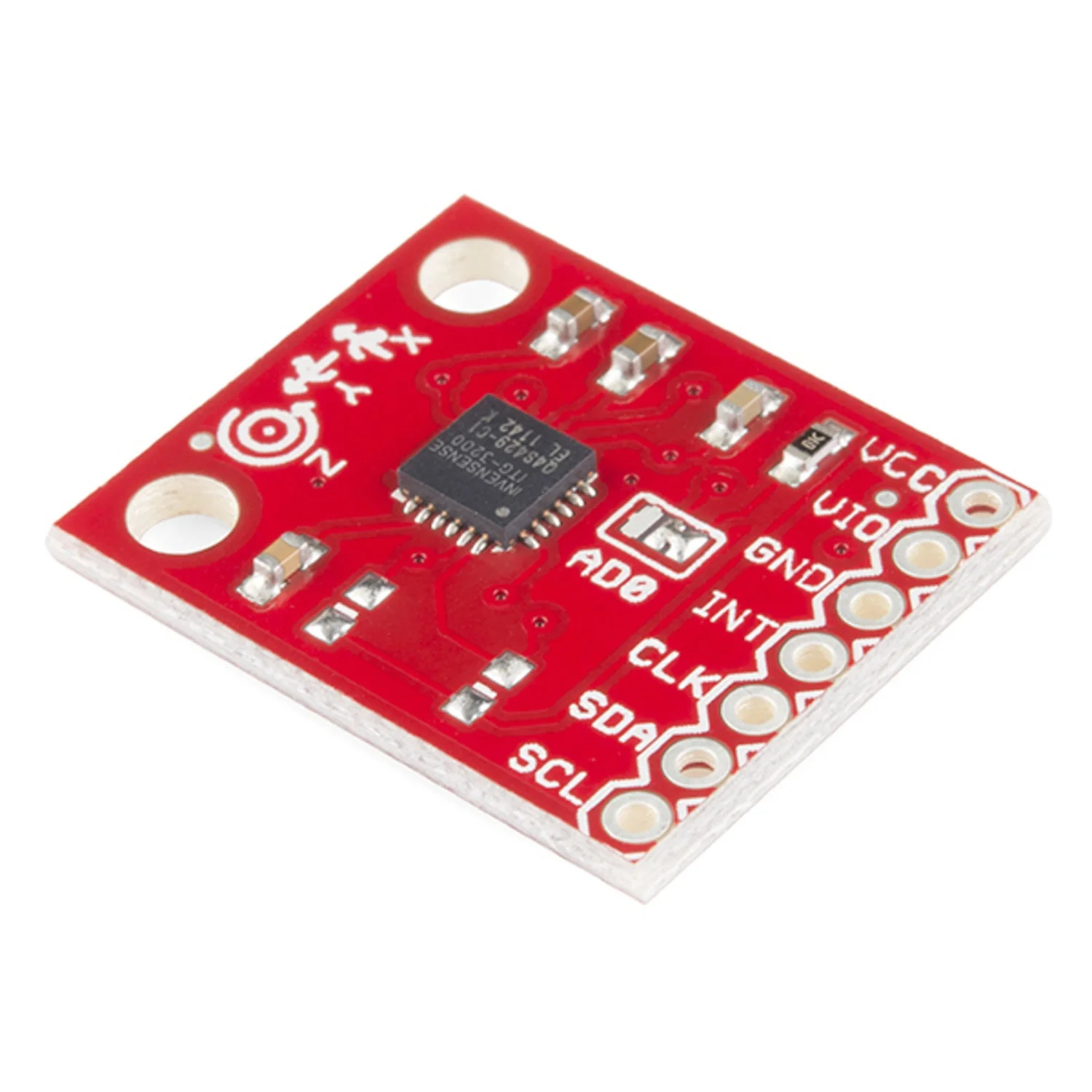

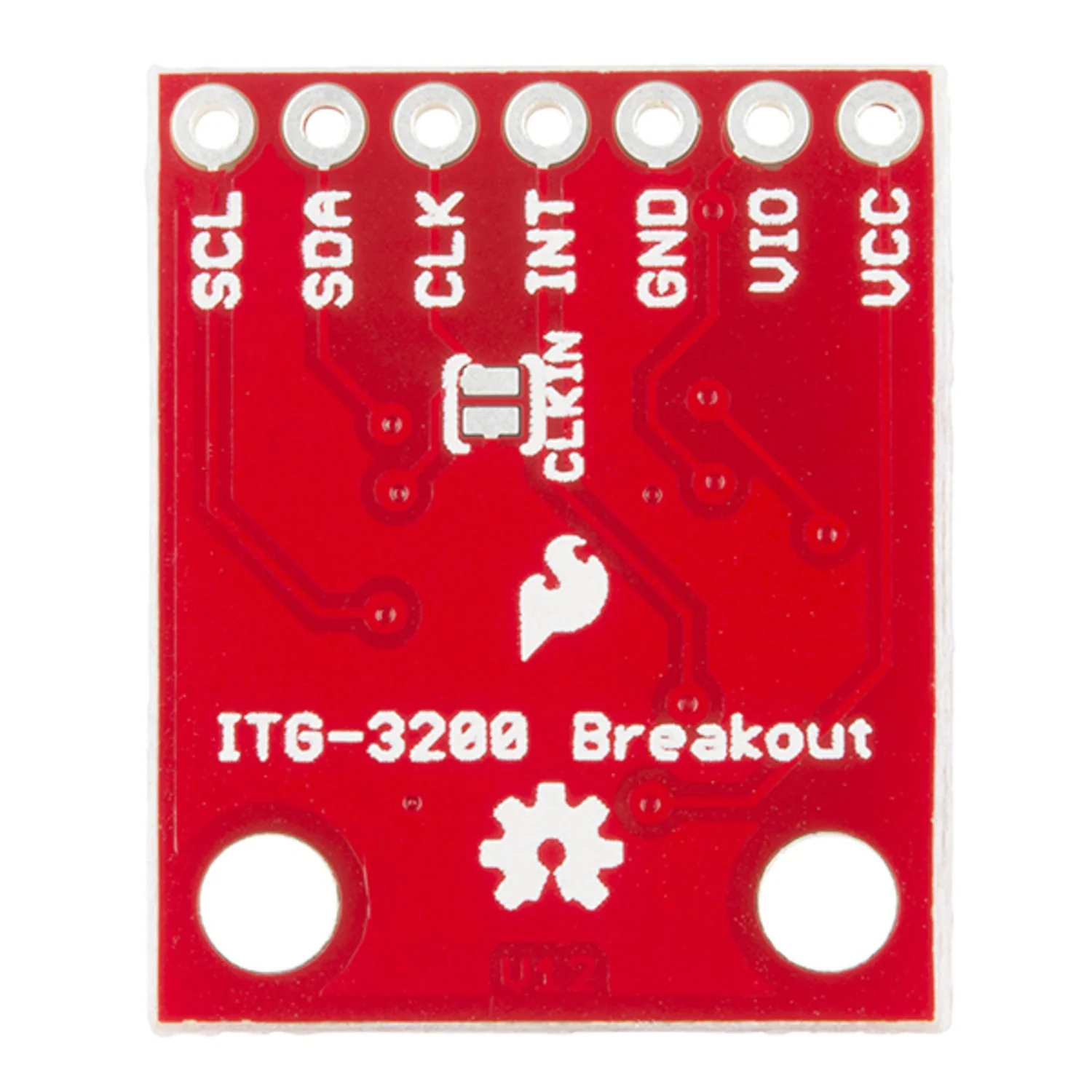

The SparkFun ITG-3200 Breakout Board provides a compact module for InvenSense's triple-axis digital-output MEMS gyroscope. The ITG-3200 features three 16-bit analogue-to-digital converters for digitising gyro outputs, a user-selectable internal low-pass filter, and a Fast-Mode I²C (400 kHz) interface.

The sensor operates on 2.1–3.6 V with a typical current draw of just 6.5 mA. A separate VLOGIC reference pin sets the serial interface logic levels independently from the analogue supply, accepting voltages from 1.71 V up to VDD. An on-board jumper lets you select the I²C address by pulling AD0 to VCC or GND (shipped with AD0 tied to VCC).

Key Features

• Triple-Axis Gyroscope – Digital-output X, Y, and Z angular rate sensors on a single IC
• 16-Bit ADCs – High-resolution digitisation of all three gyro axes
• Programmable Low-Pass Filter – User-selectable digital filter bandwidth
• Low Power – 6.5 mA operating current, 5 µA standby
• Fast-Mode I²C – 400 kHz serial interface for quick data retrieval
• On-Board Temperature Sensor – Digital-output temperature reading
• External Clock Input – Optional 32.768 kHz or 19.2 MHz input to sync with a system clock
• Interrupt Output – Dedicated interrupt pin for event-driven applications
• Breadboard-Friendly – 7-pin header on 2.54 mm (0.1″) pitch
• I²C Address Selection – Jumper for pulling AD0 to VCC or GND

Specifications

• Sensor – InvenSense ITG-3200
• Interface – I²C (Fast-Mode, 400 kHz)
• Supply Voltage (VDD) – 2.1–3.6 V
• Logic Voltage (VIO) – 1.71 V to VDD
• Operating Current – 6.5 mA
• Standby Current – 5 µA
• Internal Oscillator – 2% accuracy
• Dimensions – 22.2 × 18.5 mm (0.87 × 0.72″)

Ideal For

• Motion sensing and orientation tracking
• Robotics and drone stabilisation
• IMU projects (pair with an accelerometer for 6-DOF)
• Gesture recognition systems

Resources

• Hookup Guide
• ITG-3200 Datasheet
• Schematic
• GitHub Repository
• Eagle Files
