The SparkFun WiFi IR Blaster combines an ESP8266 WiFi/microcontroller SoC with IR emitter and receiver components, enabling control of legacy infrared devices over a WiFi network. Use it to trigger IR-controlled TVs, stereos, LED strips, and other devices via HTTP, MQTT, or TCP — bringing old hardware into the Internet of Things.

The board includes a crystal, 4 MB flash, and PCB antenna. The IR emitter and detector are packaged with the board but not pre-soldered, allowing flexible positioning at any angle your project requires. Some soldering is required for assembly.

Key Features

• ESP8266 WiFi SoC – Built-in WiFi with 4 MB flash and PCB antenna
• IR Emitter & Receiver – Included but unsoldered for flexible mounting angles
• Protocol Support – Interface between HTTP, MQTT, TCP, and infrared devices
• Customisable – Swap in your own IR emitter or receiver components if needed

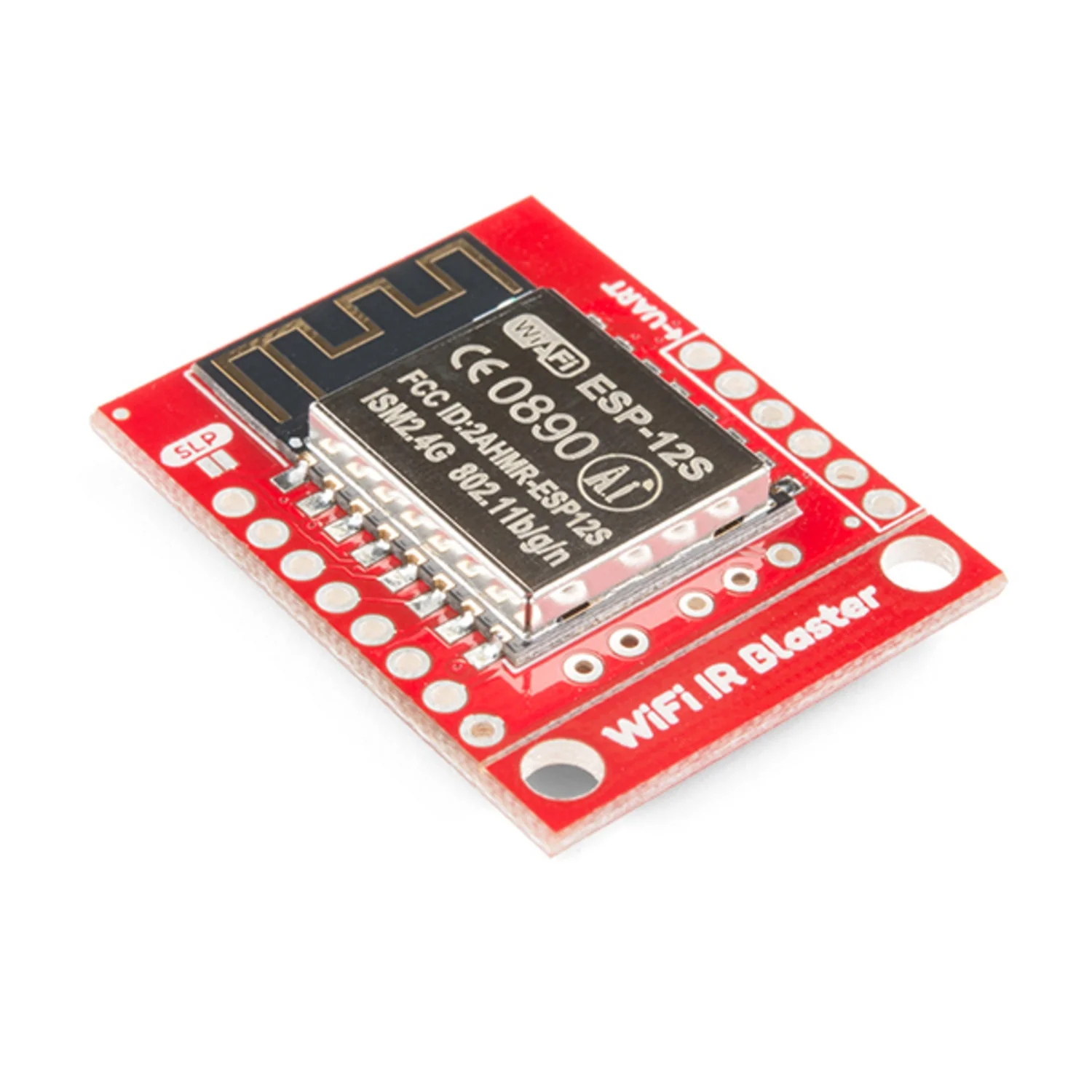

• Compact Design – PCB antenna under the SparkFun logo area

Specifications

• Microcontroller – ESP8266
• Flash – 4 MB
• Antenna – Onboard PCB antenna
• IR Components – Emitter and detector (included, unsoldered)
• Protocols – HTTP, MQTT, TCP, IR

Ideal For

• WiFi control of IR-controlled TVs, stereos, and appliances
• Home automation and IoT integration
• Voice assistant (Alexa, Google Home) IR bridge projects
• Scheduled IR triggers and remote automation

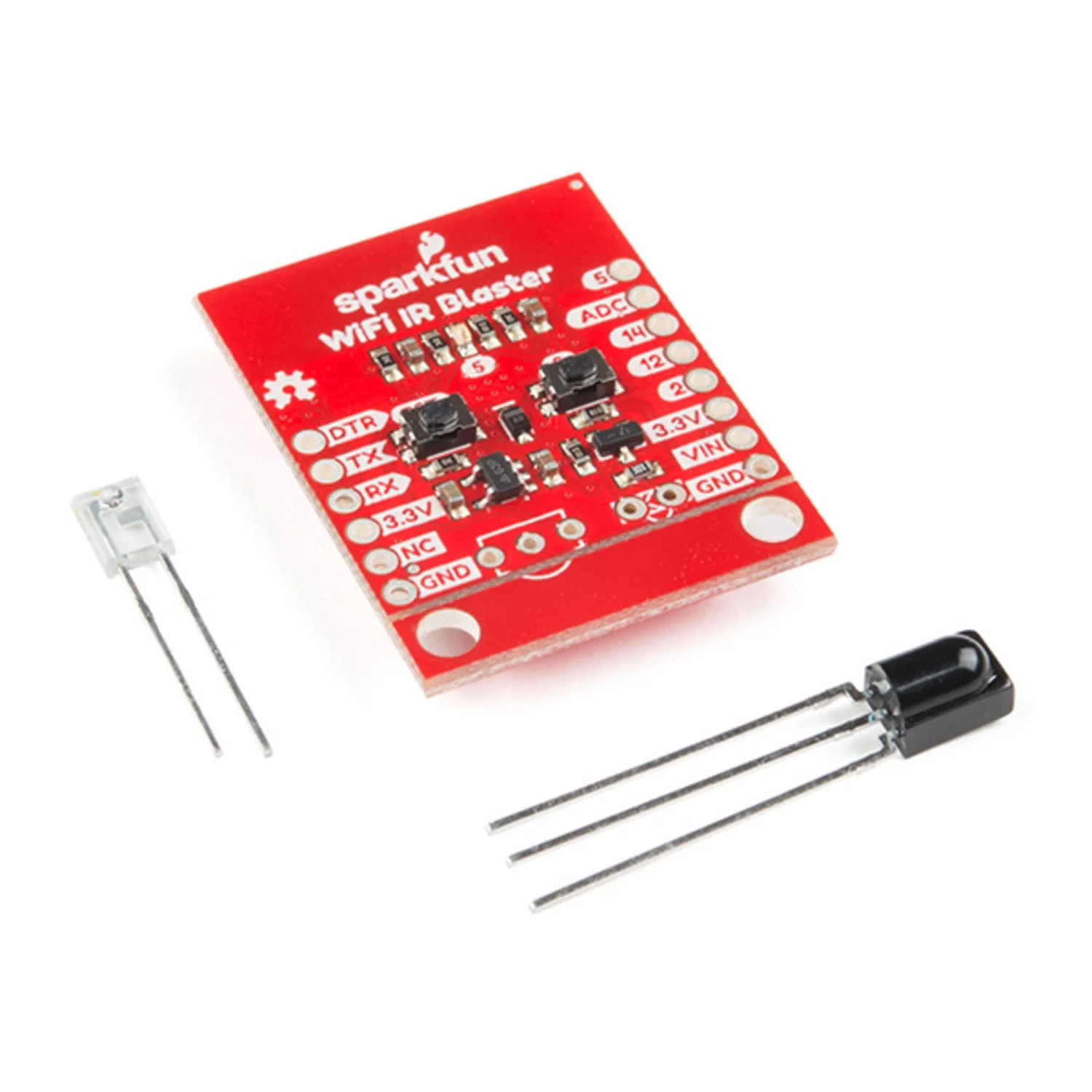

Package Contents

• 1× SparkFun WiFi IR Blaster PCB
• 1× IR Emitter (unsoldered)
• 1× IR Receiver (unsoldered)
