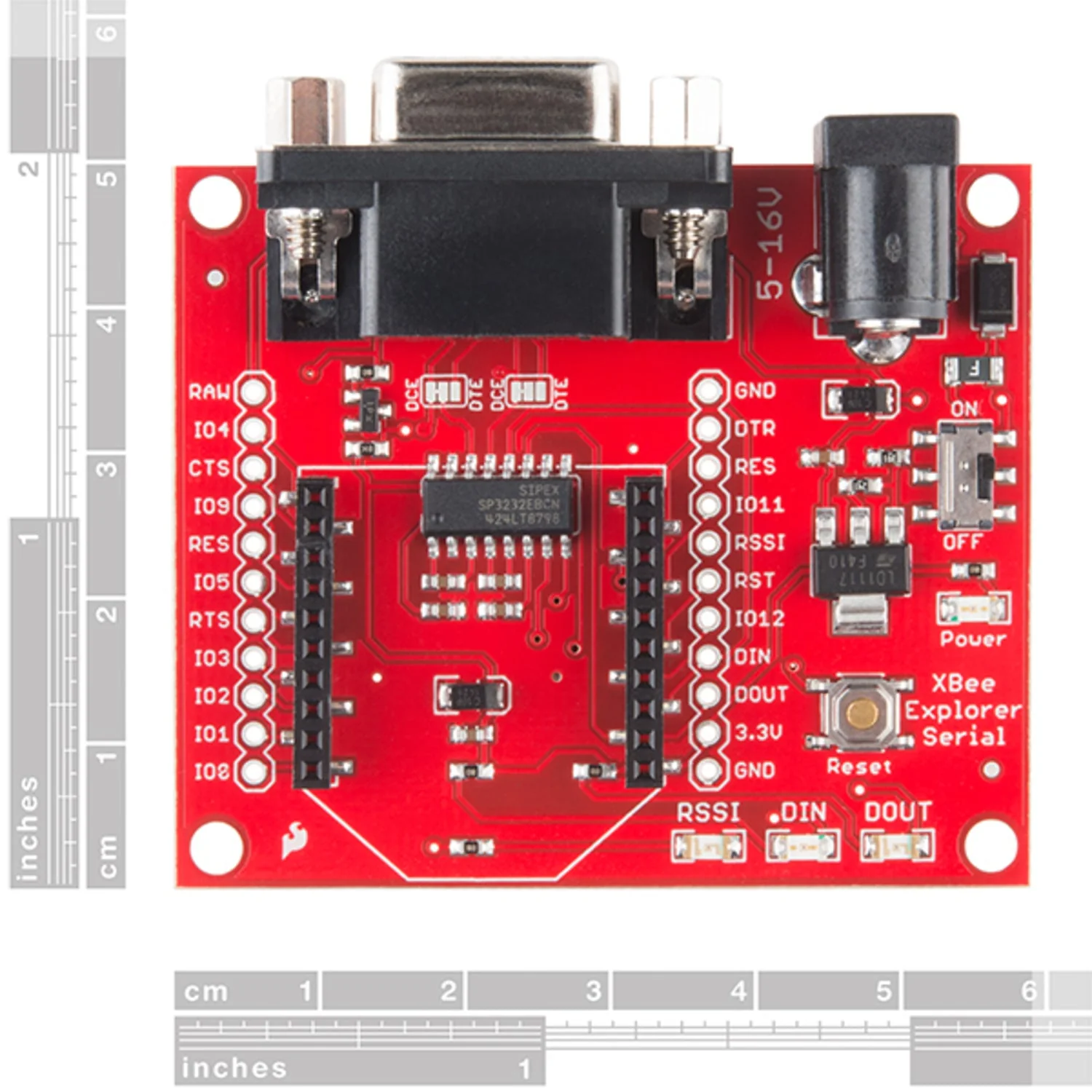

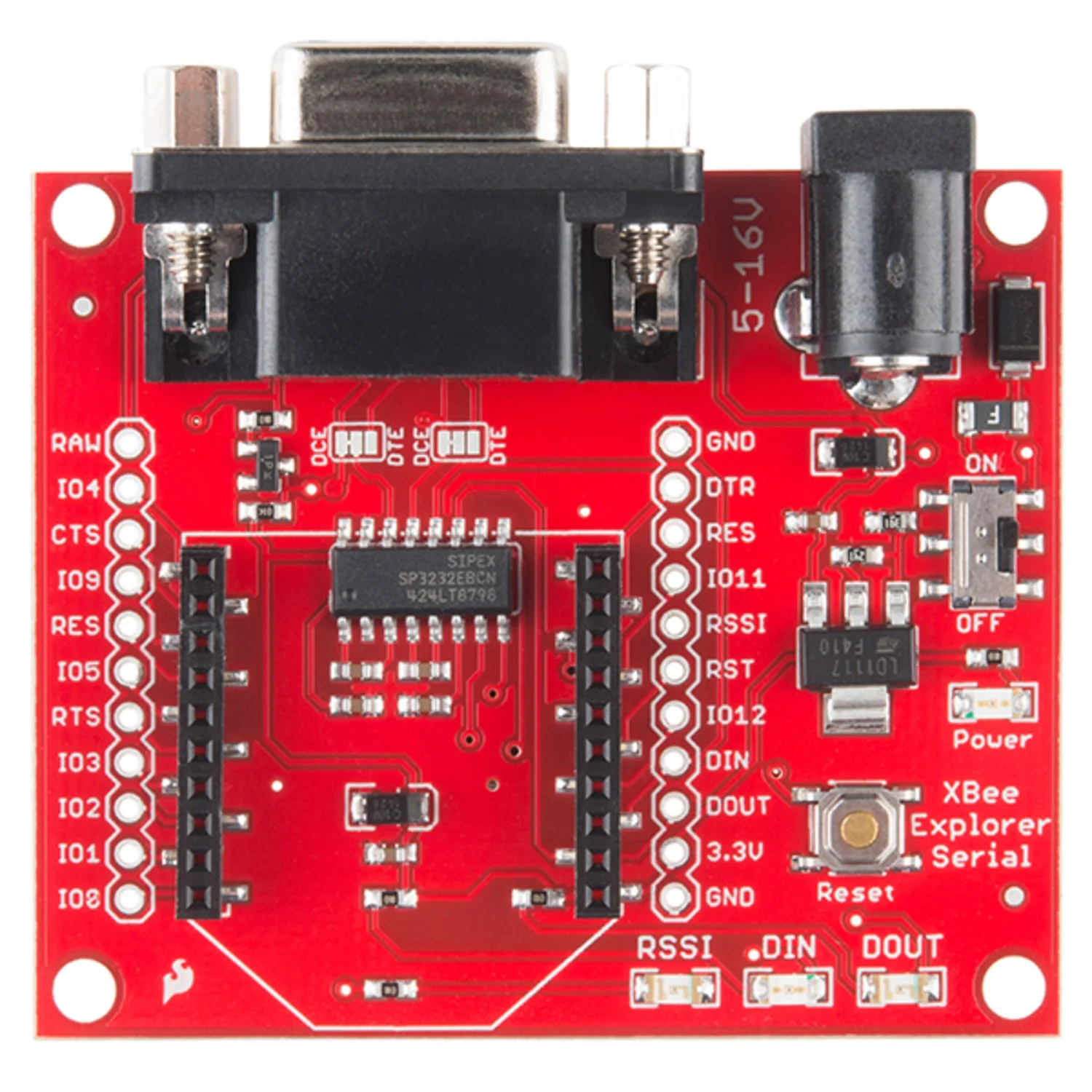

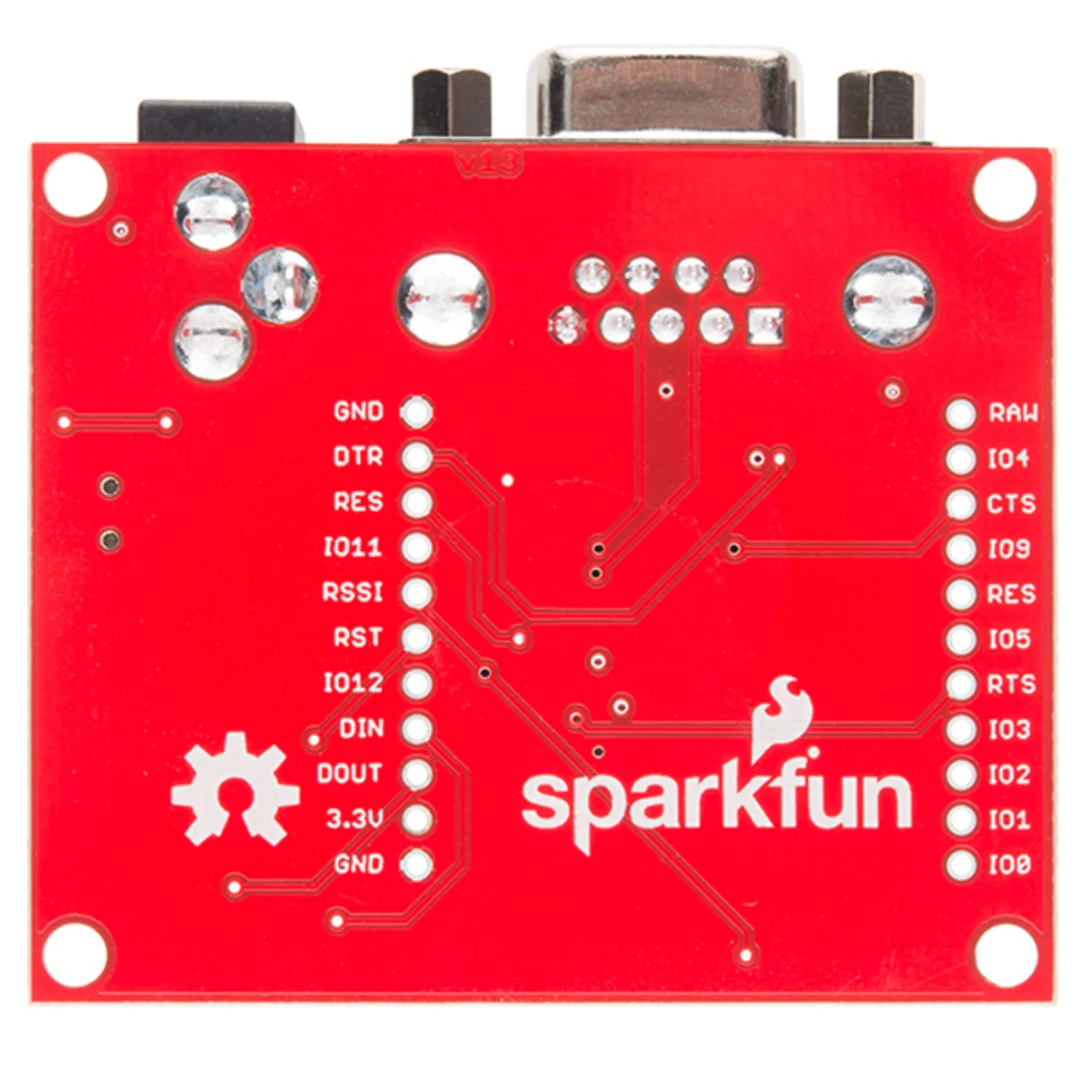

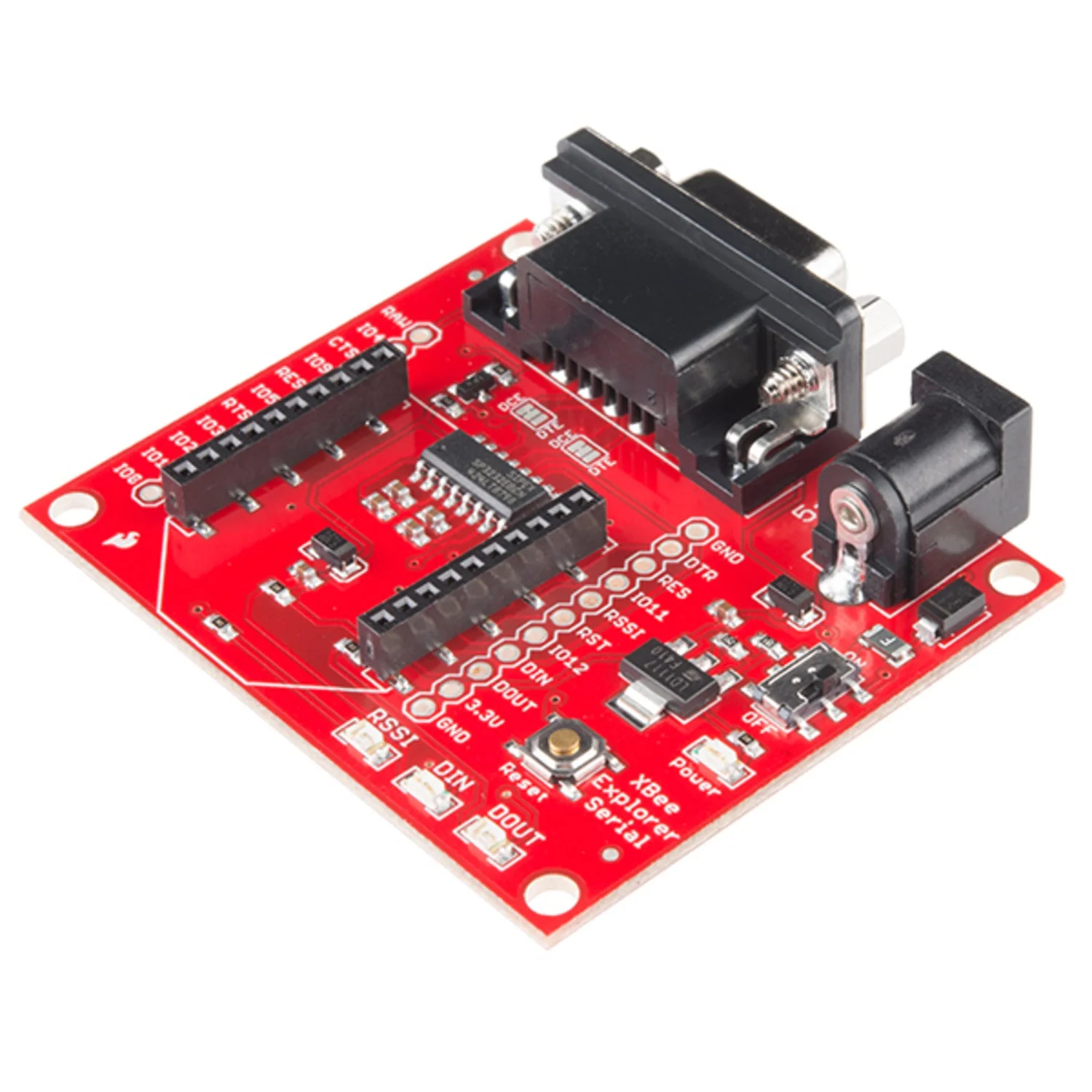

The SparkFun XBee Explorer Serial is an RS232 serial base unit for configuring and communicating with XBee modules. Compatible with all XBee modules including Series 1, Series 2.5, standard, and Pro versions. Simply plug in an XBee module, connect an RS232 cable, and gain direct access to the serial and programming pins.

Supports DTR communication for reprogramming and configuring XBee modules via Digi's XCTU software.

Key Features

• Universal XBee Compatibility – Works with Series 1, 2.5, standard, and Pro modules

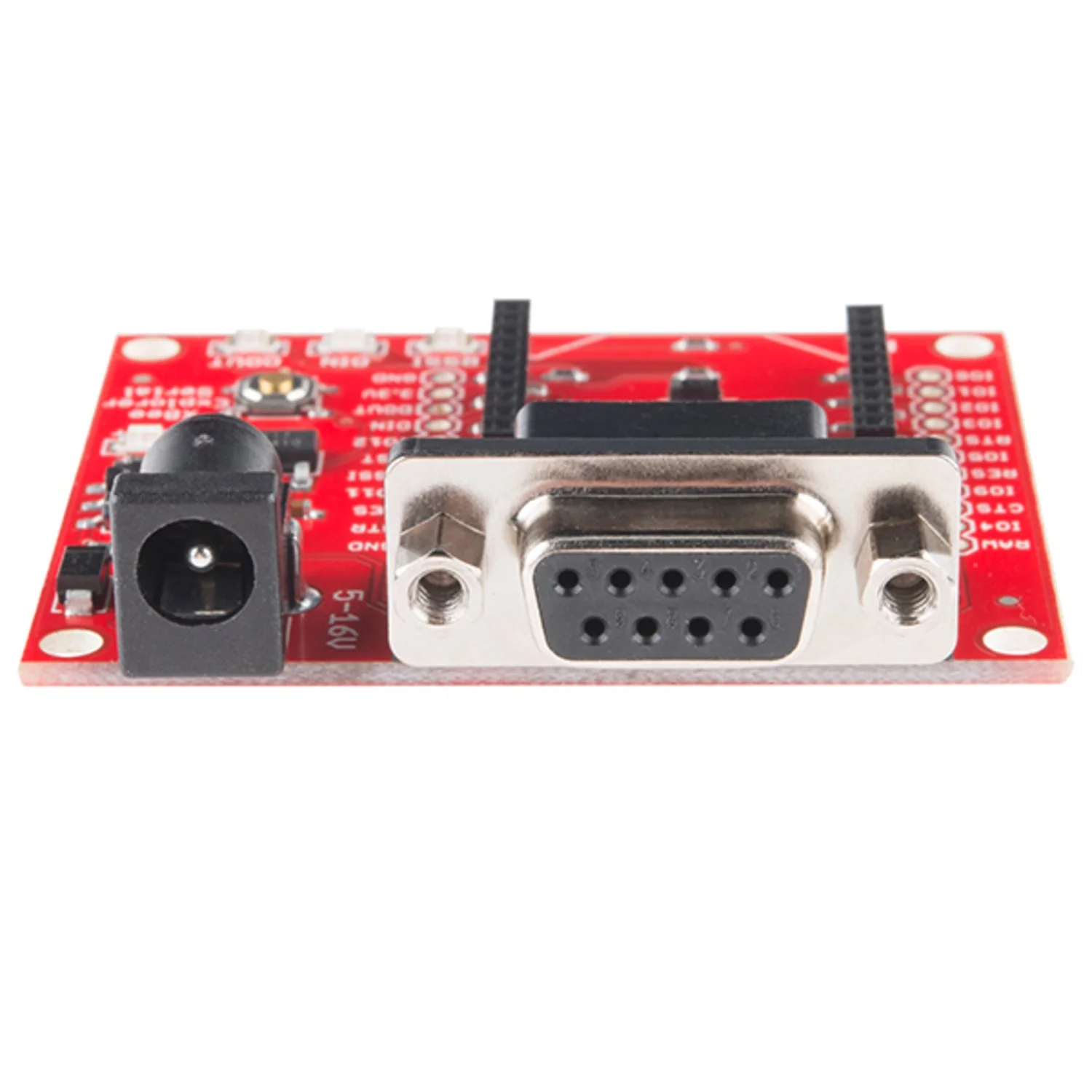

• RS232 Interface – Standard serial connection via DB9
• DTR Support – Reprogram and configure XBee modules directly
• Simple Setup – Plug in XBee, attach RS232 cable, and go

Package Contents

• 1× SparkFun XBee Explorer Serial board

Resources

• Exploring XBees and XCTU Guide
• GitHub Repository (Design Files)
• Schematic (PDF)
• Eagle Files
