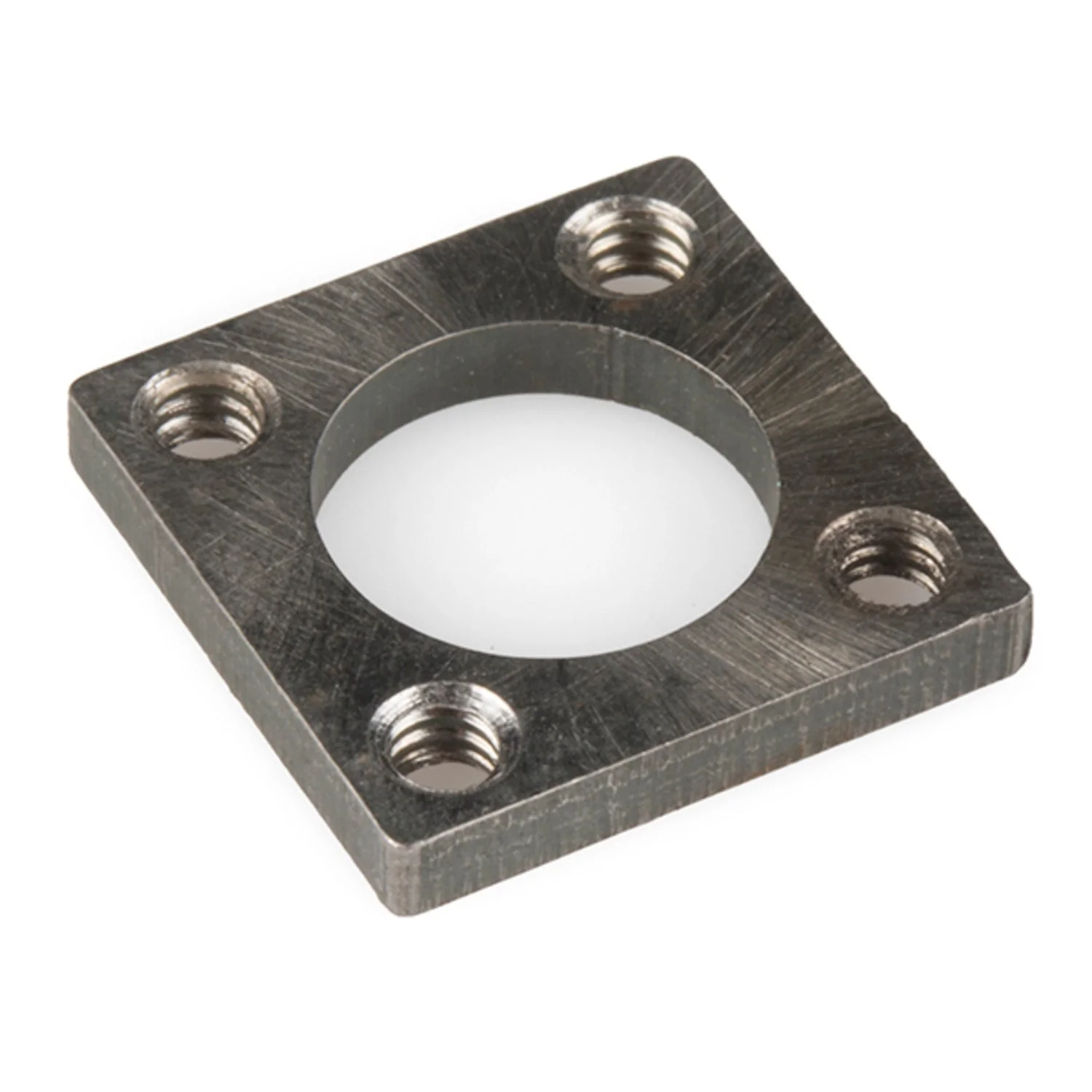

The Small Square Screw Plate creates a strong joining point between Actobotics channel pieces. Measuring 0.784" square with four 6-32 tapped holes, it utilises the 0.77" hole pattern for easy and secure channel connections.

Part of the Actobotics robotics building system, this screw plate works with extruded aluminium channels, precision shafts, and other Actobotics components thanks to the standardised hole patterns.

Specifications

• Dimensions: 0.784" × 0.784" square
• Hole Pattern: 0.77"
• Mounting Holes: 4× 6-32 tapped holes
• Part Number: 585478

Ideal For

• Joining Actobotics channel pieces at right angles
• Robotics chassis and frame construction
• Electromechanical prototyping

Resources

• SketchUp 3D Model
