Standard Nylon Gear Servo For Remote Control Model

Product image 1
1 / 2

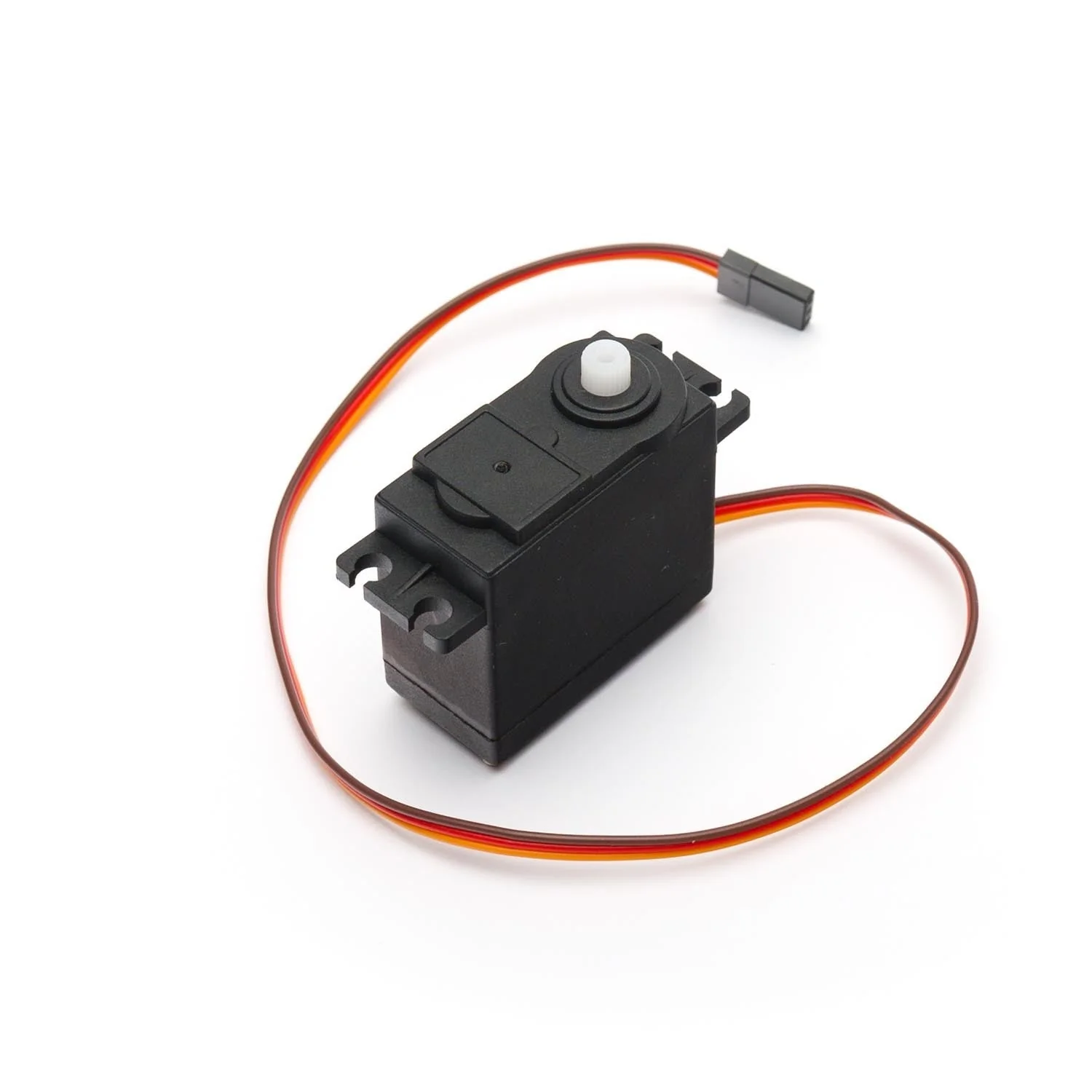

Standard Nylon Gear Servo For Remote Control Model

High impact plastic is designed to withstand minor crashes and the effects of model fuel
Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads
Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn
Nylon gears

Specifications:
Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6V
Torque: 44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6V
Dimensions: 1.6 x 0.8 x 1.4 in (1-9/16 x 13/16 x 1-7/16 in) (40 x 20 x 36 mm)
Weight: 1.3 oz (37 g)
Connector: "J" type with approx. 5 in lead

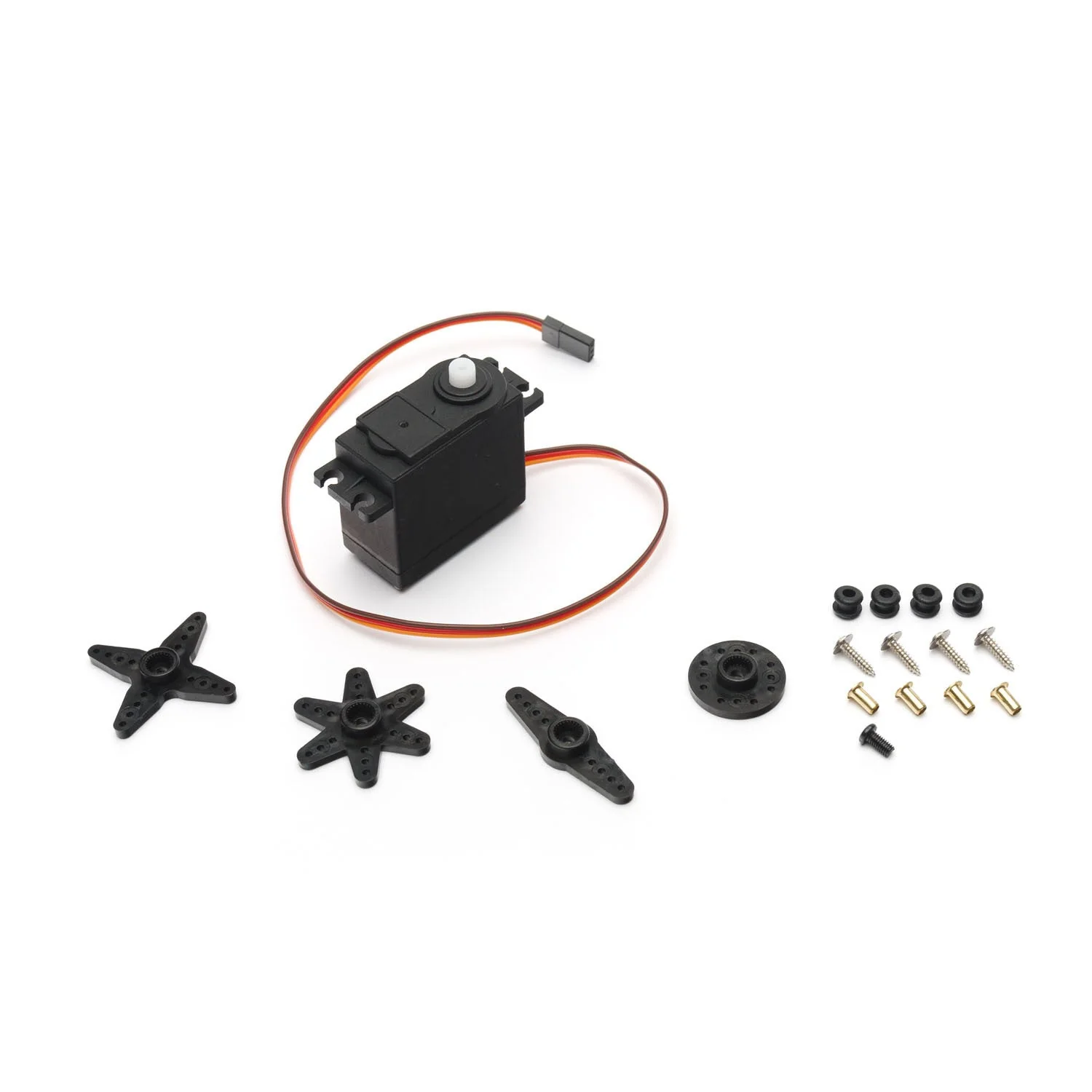

Package:
1x S3003 standard servo
4x Brass eyelets
4x Black rectangular rubber grommets
4x Servo mount screws (4)
1x Servo wheel 1.375 in (35 mm) in diameter
1x X-shape servo arm 1.5 in (38 mm) across
1x Star shaped arm 1.25 in (32 mm) across

$1.72

Original: $5.75

-70%
Standard Nylon Gear Servo For Remote Control Model—

$5.75

$1.72

Product Information

Shipping & Returns

Description

High impact plastic is designed to withstand minor crashes and the effects of model fuel
Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads
Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn
Nylon gears

Specifications:
Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6V
Torque: 44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6V
Dimensions: 1.6 x 0.8 x 1.4 in (1-9/16 x 13/16 x 1-7/16 in) (40 x 20 x 36 mm)
Weight: 1.3 oz (37 g)
Connector: "J" type with approx. 5 in lead

Package:
1x S3003 standard servo
4x Brass eyelets
4x Black rectangular rubber grommets
4x Servo mount screws (4)
1x Servo wheel 1.375 in (35 mm) in diameter
1x X-shape servo arm 1.5 in (38 mm) across
1x Star shaped arm 1.25 in (32 mm) across
