Strain Gauge Load Cell - 4 Wires - 10Kg

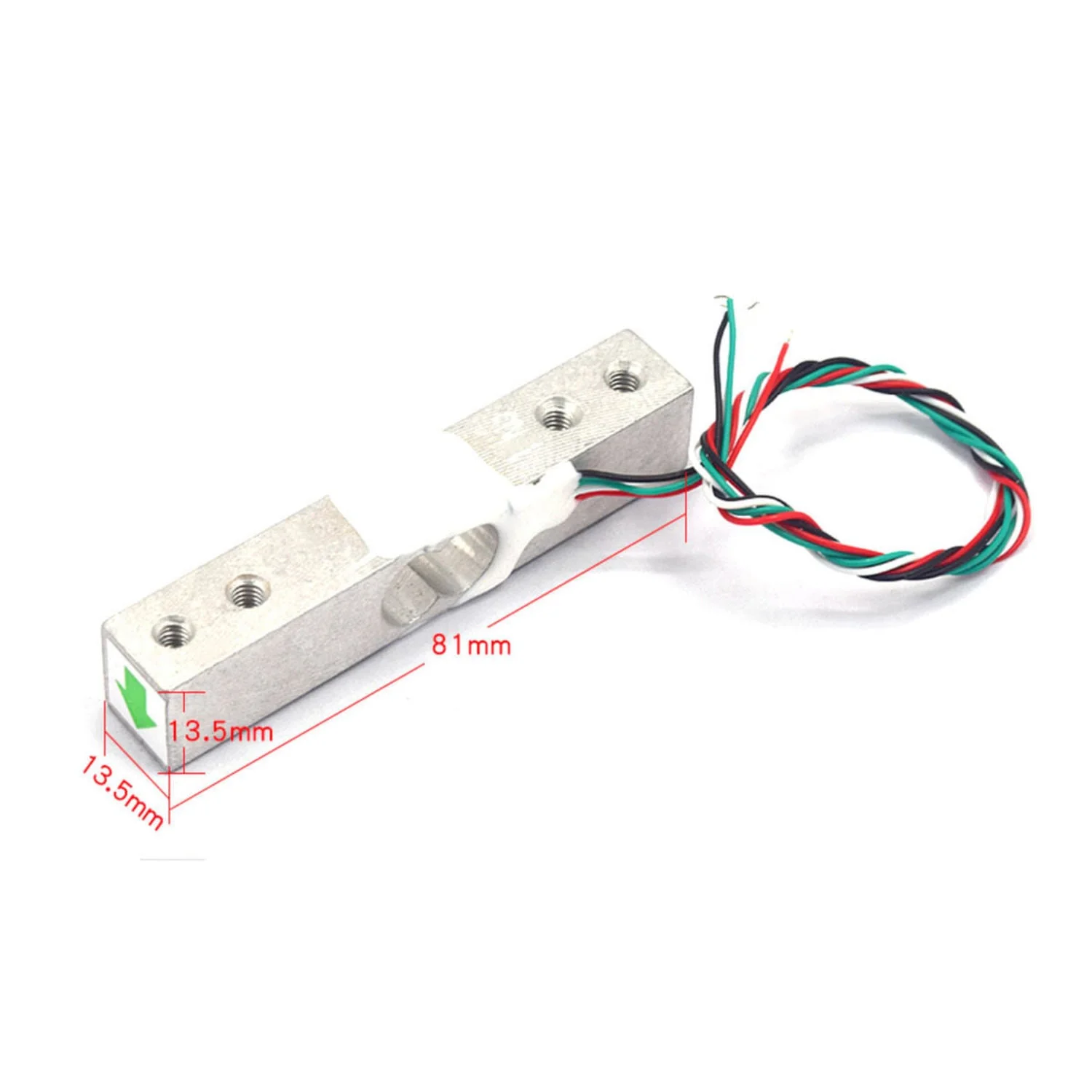

Product image 1

Strain Gauge Load Cell - 4 Wires - 10Kg

A 10 kg strain gauge load cell for measuring force, weight, and tension. The strain gauge is epoxy-bonded to a robust aluminium bar that protects the delicate foil element and constrains deflection to a safe range. As force is applied, the gauge's resistance changes proportionally, providing a measurable electrical output.

Mount one end to a fixed surface using the mounting holes, then apply force to the free end in the direction indicated by the arrow on the side. Read the output using a precision ADC or Wheatstone bridge circuit such as the HX711.

Key Features

  • 10 kg Capacity – Suitable for scales, force measurement, and tension monitoring
  • 4-Wire Connection – Standard Wheatstone bridge wiring for easy integration
  • Aluminium Construction – Protects the strain gauge and provides consistent deflection
  • Mounting Holes – Secure attachment to enclosures or frames

Ideal For

  • DIY scales and weighing systems
  • Force and pressure measurement projects
  • Tension monitoring
  • Arduino and Raspberry Pi data acquisition
Note: No ADC or converter is included — a module such as the HX711 is required to read the output. The load cell must be calibrated with known weights once installed.
Tip: Choose a load cell rated for at least 2× the maximum weight you intend to measure for the best precision within the usable range.
$2.31

Original: $7.71

-70%
Strain Gauge Load Cell - 4 Wires - 10Kg—

$7.71

$2.31
