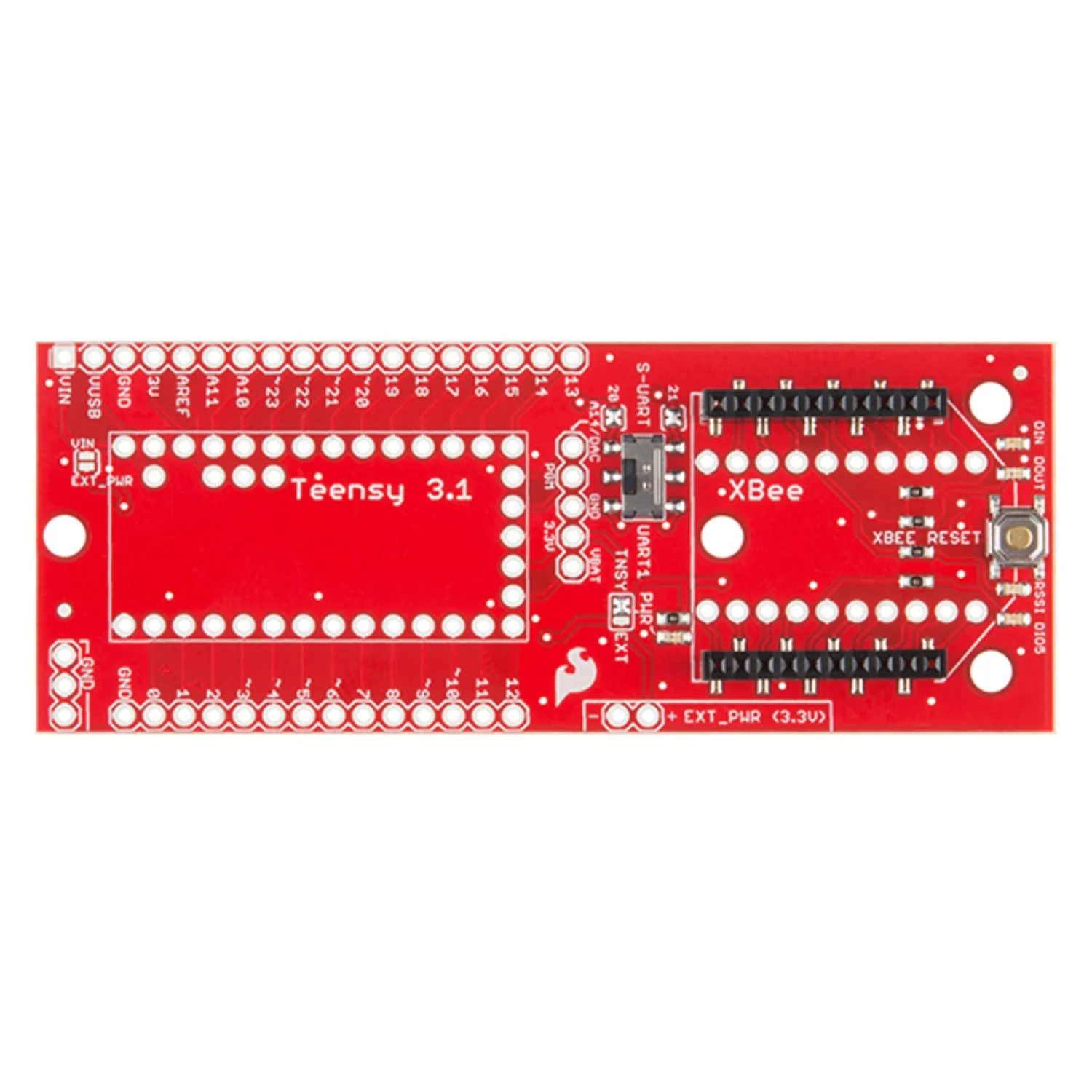

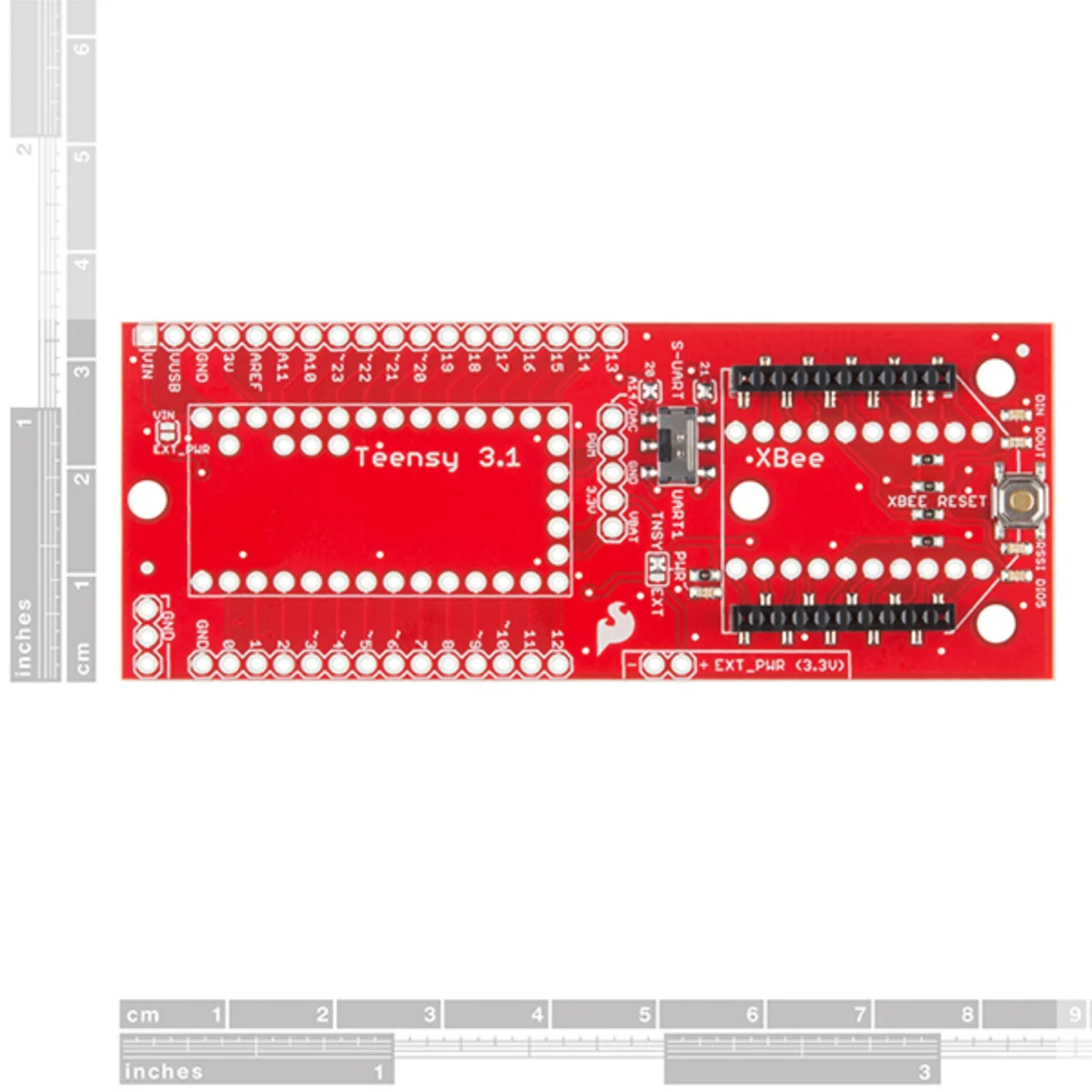

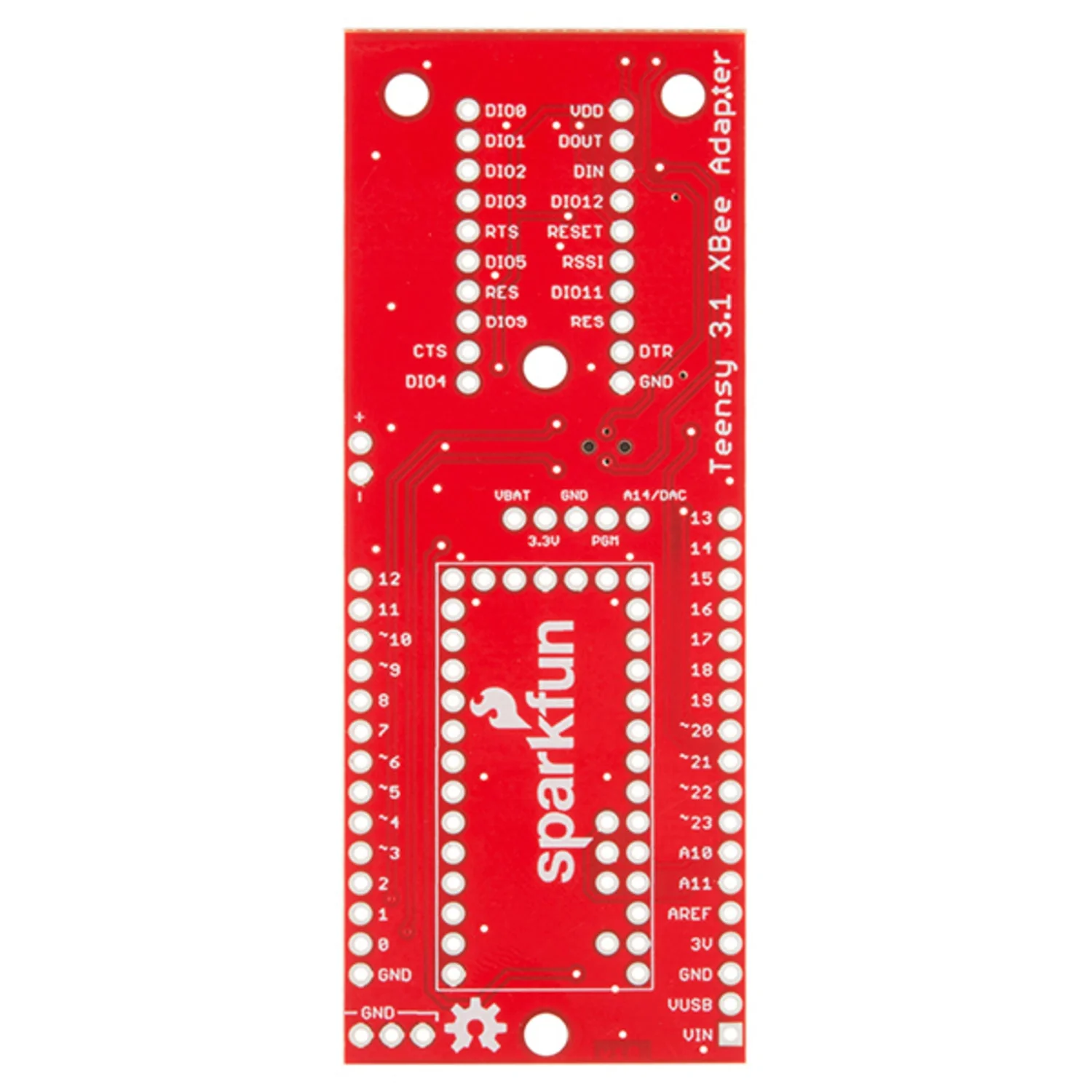

The Teensy 3.1 XBee Adapter connects your Teensy development board with the popular XBee wireless module, giving you a compact solution for projects requiring a reliable, no-frills wireless serial link with decent range.

The adapter also doubles as a breakout board for both the Teensy and XBee. Every pin on each module is broken out to standard 0.1" spaced through-hole pads, making it easy to incorporate additional components into your design. While optimised for the Teensy 3.1, the Teensy LC is also compatible.

Key Features

• XBee + Teensy Integration – Connects both modules on a single compact board
• Full Breakout – All Teensy and XBee pins broken out to 0.1" through-hole pads
• Teensy 3.1 & LC Compatible – 72 MHz (Teensy 3.1) or 48 MHz (Teensy LC) processing
• Pre-soldered XBee Headers – XBee socket headers installed and ready to use

Resources

• Schematic (PDF)
• Eagle Design Files
• Hookup Guide
• GitHub Repository
