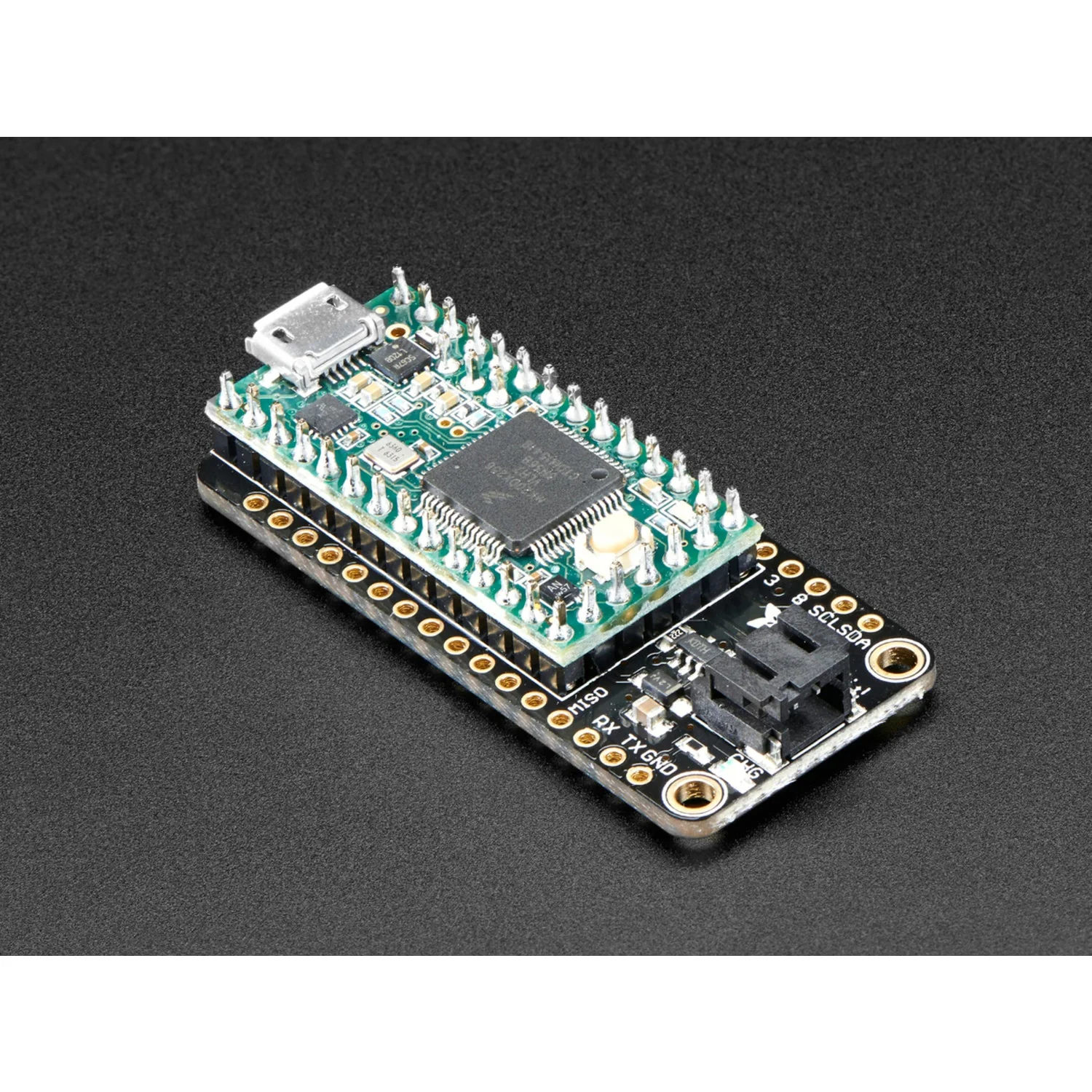

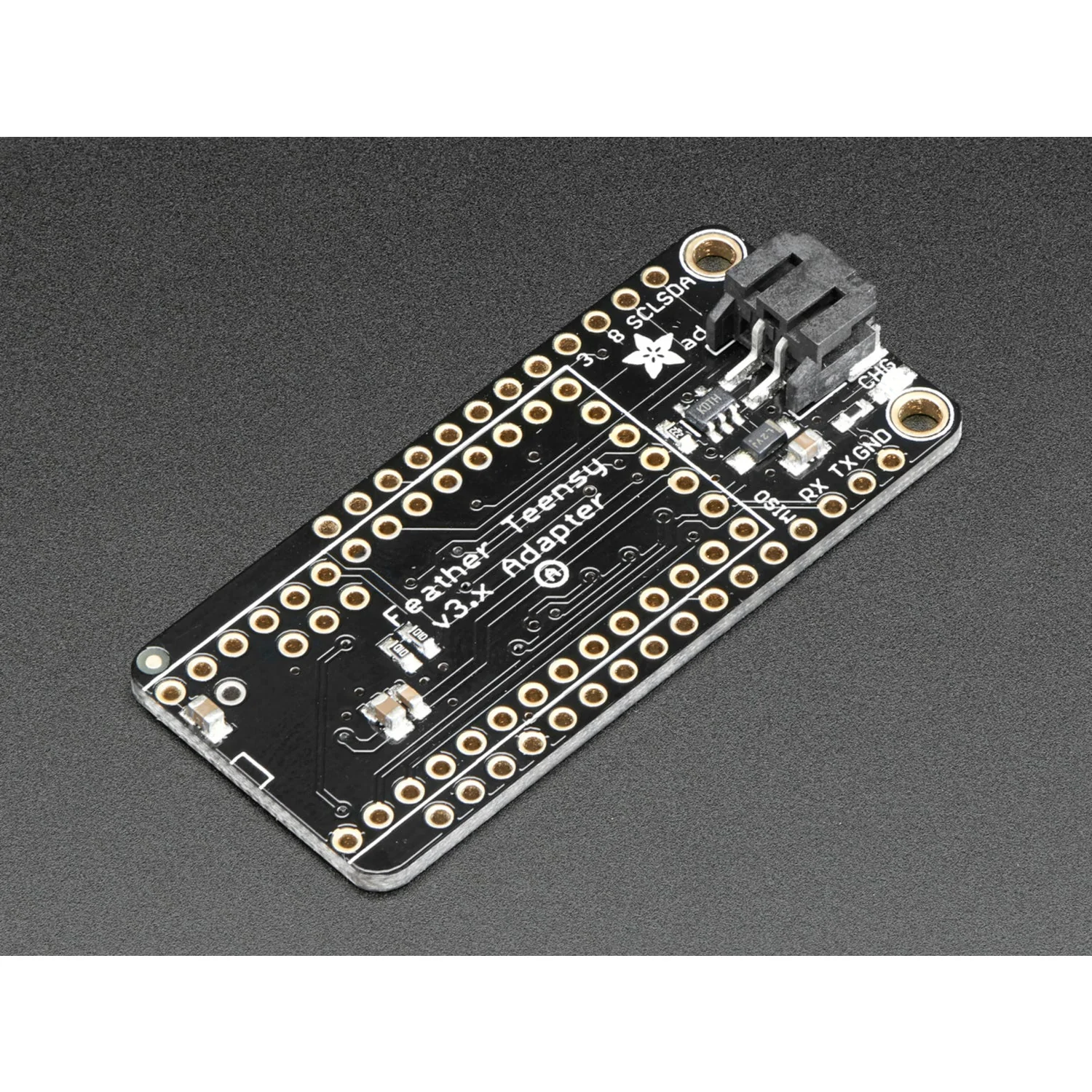

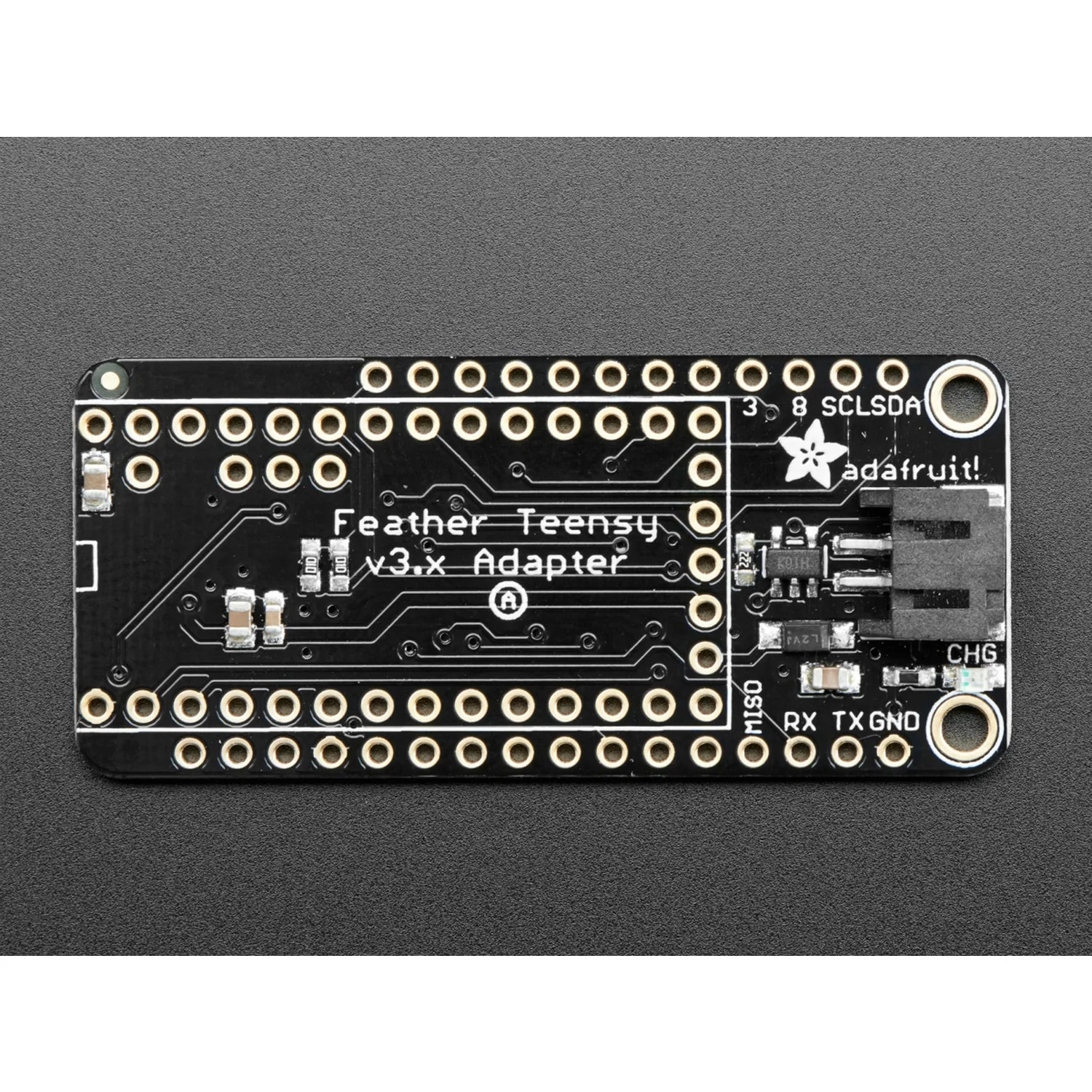

The Teensy 3.x Feather Adapter rearranges the pins of a Teensy 3.x board to match the Adafruit Feather form factor and pinout. This allows the Teensy to work with the full range of FeatherWing add-ons — motor drivers, GPS modules, LED matrices, OLEDs, and more.

The adapter also includes a built-in 500 mA LiPo charger that charges automatically over USB and switches to battery power when USB is disconnected. A 100 kΩ resistor divider on pin A7 enables battery voltage monitoring.

Key Features

• Feather Form Factor – Adapts Teensy 3.x pinout to match Feather/FeatherWing ecosystem
• Built-In LiPo Charger – 500 mA charging via USB with automatic switchover
• Battery Monitoring – 100 kΩ voltage divider on A7
• FeatherWing Compatible – Drop-in support for FeatherWing add-ons

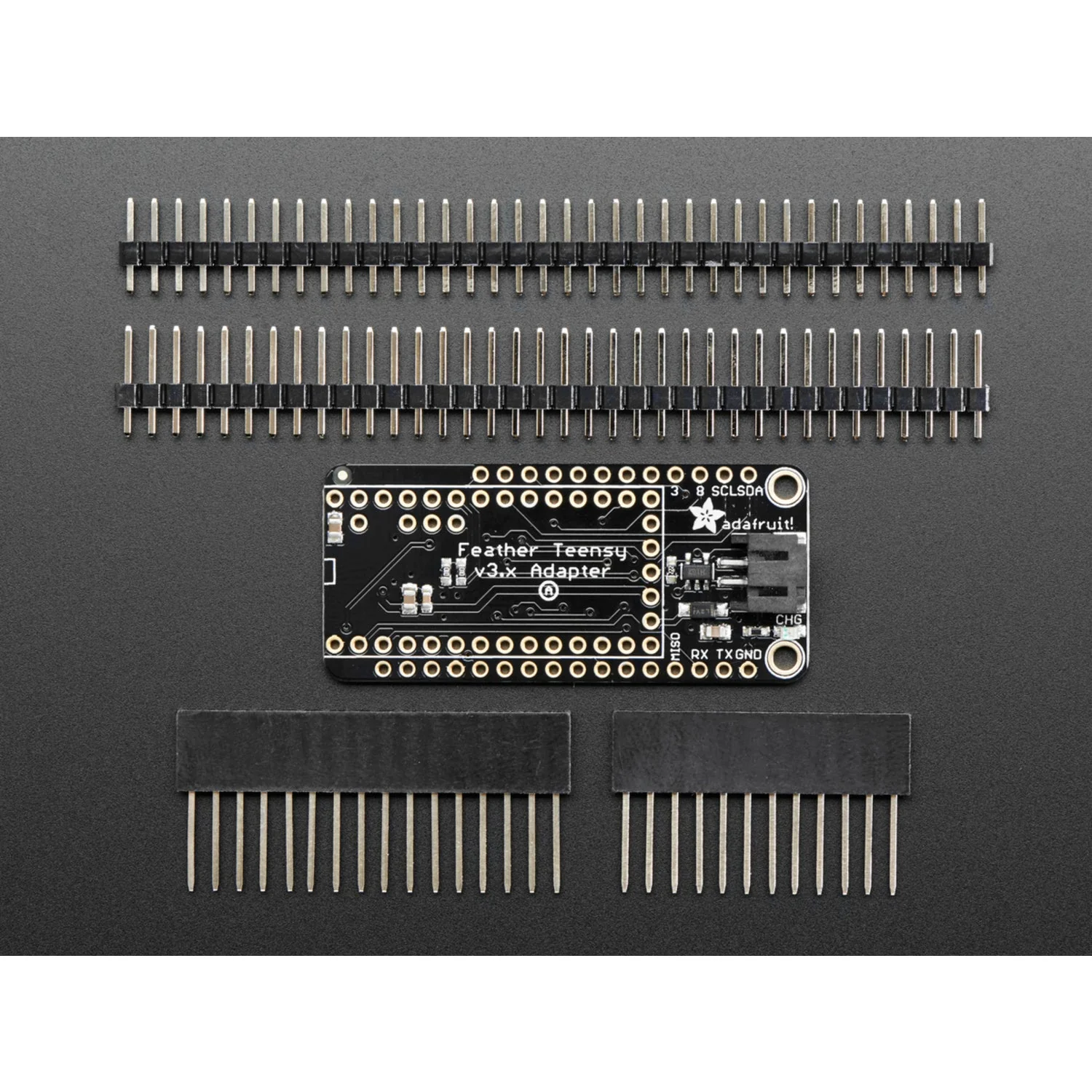

Package Contents

• 1× Assembled Teensy 3.x Feather Adapter

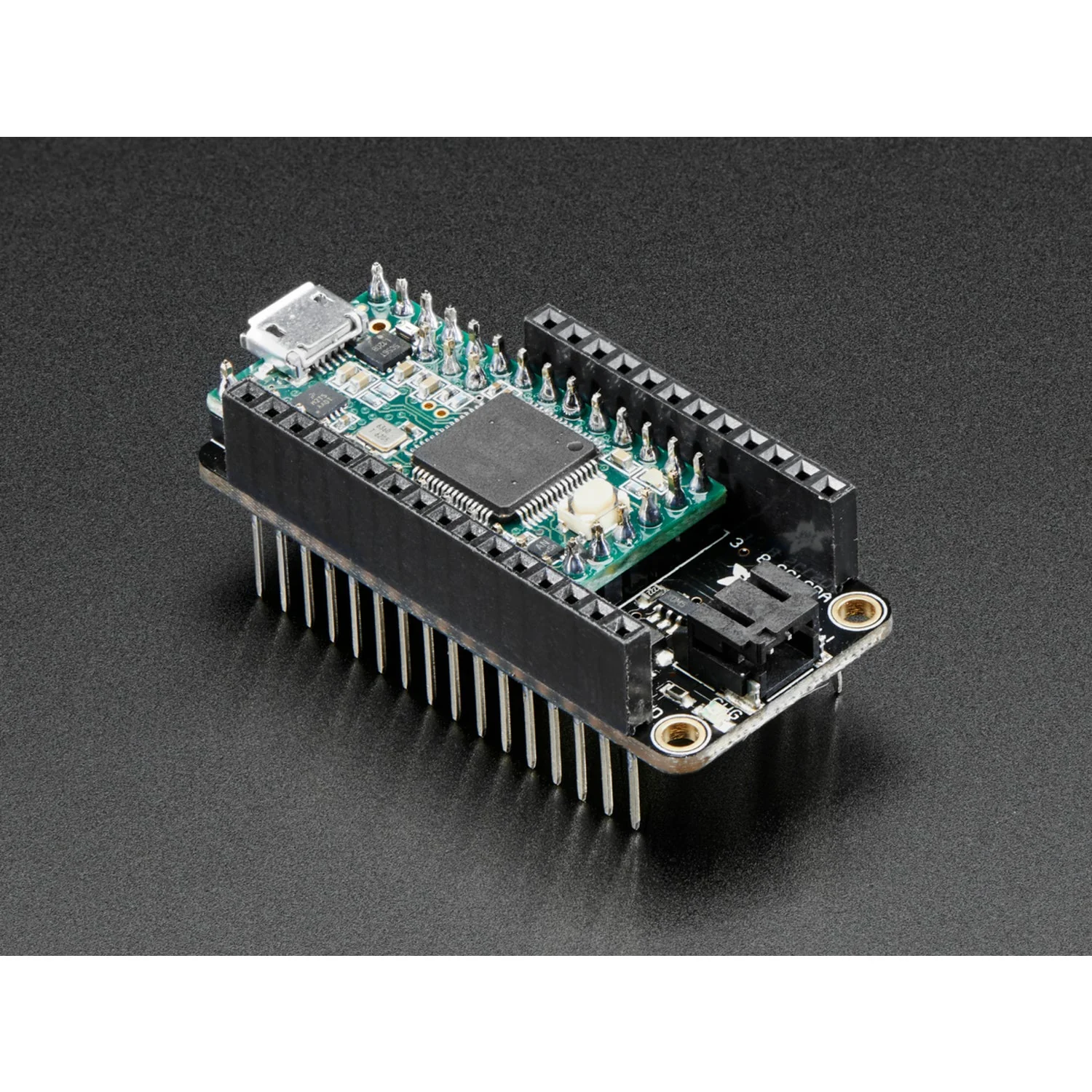

• 1× Shorty header set (for attaching Teensy 3.x)
• 1× Standard header set
• 1× Stacking header set
