TinyFPGA Programmer

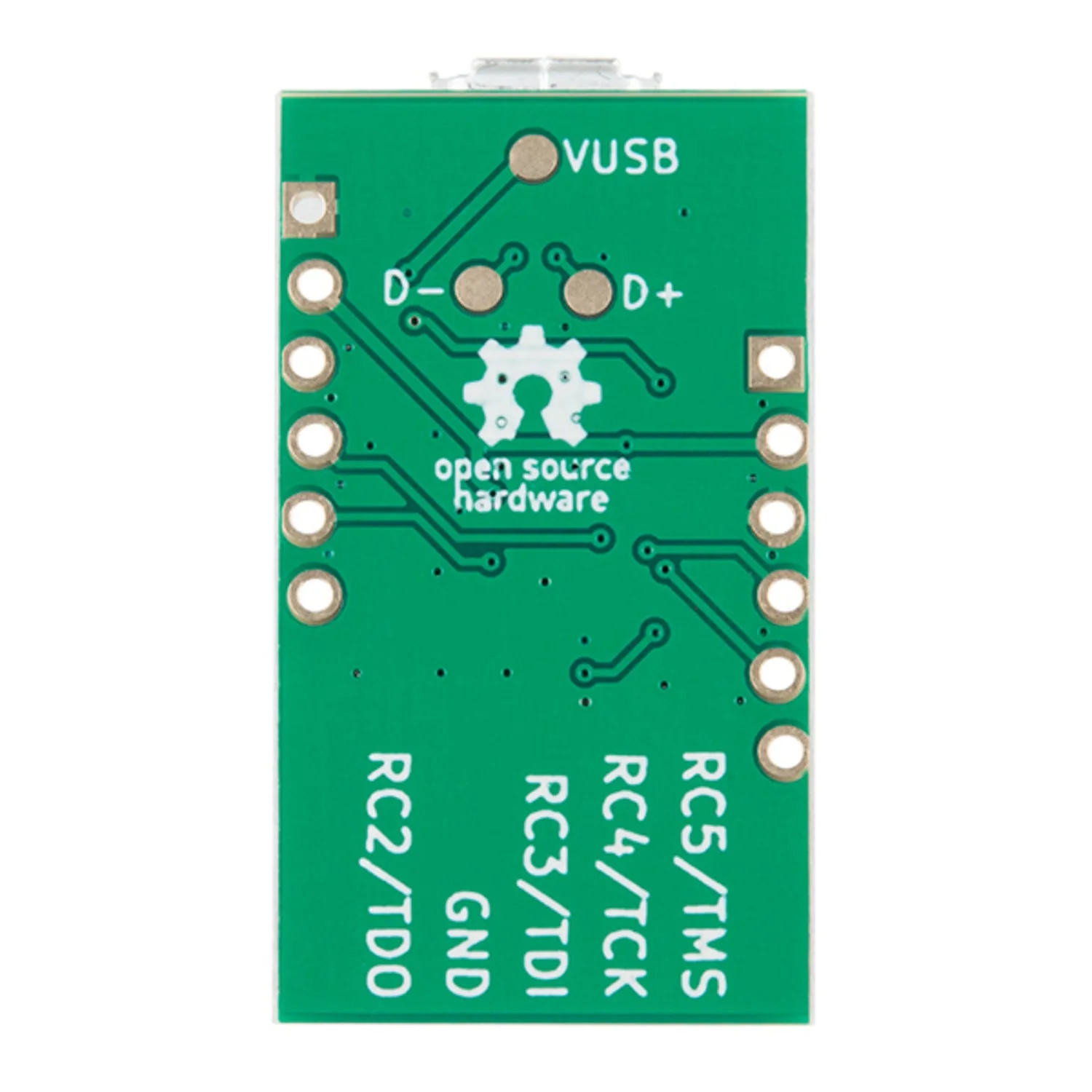

The TinyFPGA Programmer is a USB-JTAG bridge designed to program bitstreams onto TinyFPGA A-series boards (A1 and A2). It uses a PIC16F1455 USB microcontroller with a Micro-USB connector, providing a cost-effective alternative to FTDI-based programmers.
The programmer slots directly onto the JTAG pins of A-series FPGA boards. Use the TinyFPGA Programmer Application to upload .jed files generated by Lattice Diamond.
Key Features
- USB-JTAG Bridge – Programs TinyFPGA A1 and A2 boards via JTAG
- PIC16F1455 Controller – Low-cost USB microcontroller
- Micro-USB Connector – Standard USB connection to host computer
- Direct Slot Connection – Plugs onto the A-series JTAG header pins
Ideal For
- Programming TinyFPGA A1 and A2 boards
- FPGA development with Lattice Diamond
Original: $24.18
-70%$24.18
$7.25Product Information
